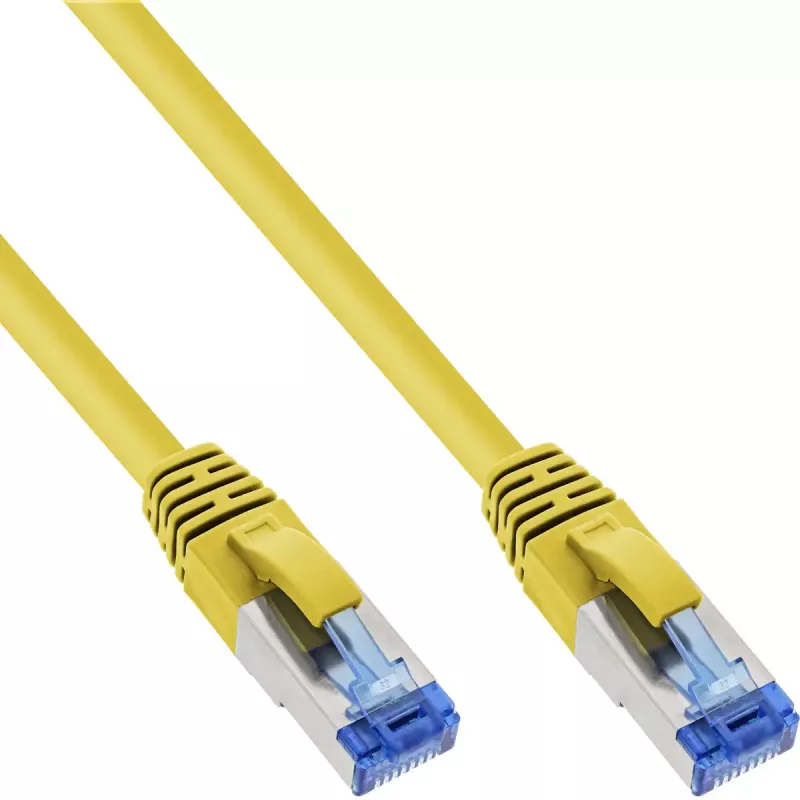

InLine B-76805Y Cat6A S/FTP (PiMF) cable de conexión libre de halógenos, 5 m, amarillo, pack de 25

The InLine B-76805Y is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 25-pack. It features a halogen-free LSZH jacket and RJ45 connectors with 50µ" gold-plated contacts, and is suitable for Gigabit and 10 Gigabit applications up to 500 MHz.

Key features

• Cat6A S/FTP (PiMF) construction
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• Supports PoE up to 802.3bt, max. 90W
• Max. supported data transfer rate: 10Gb/s

Specifications

• Brand: InLine
• MPN: B-76805Y
• Product colour: Yellow
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free, LSZH, compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector: RJ45 plug straight (Side A and Side B)
• Assignment: 1:1
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Length: 5m
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Packaging: Bulk EcoPack
