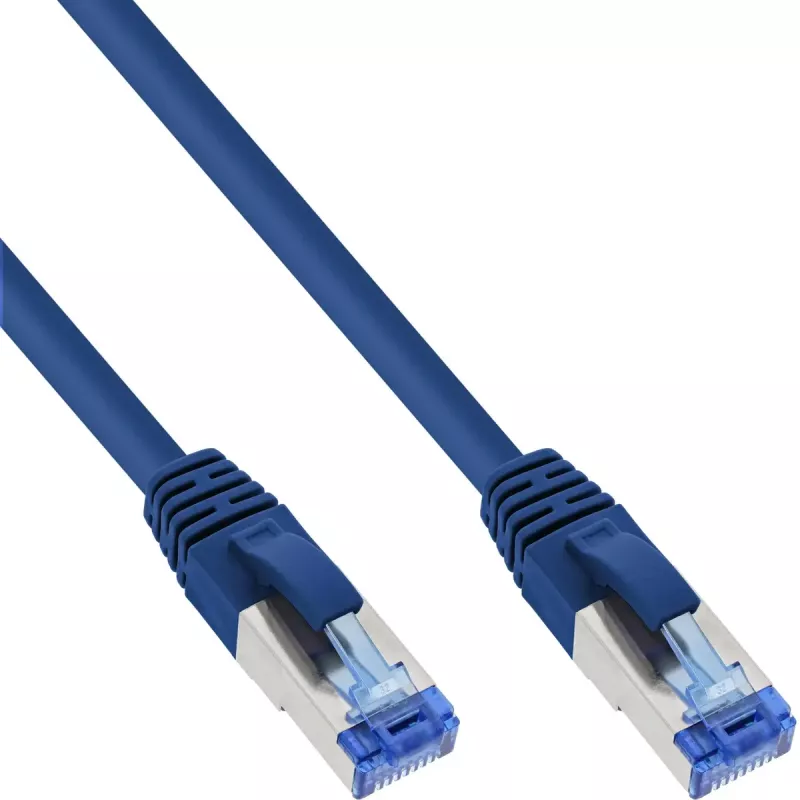

InLine B-76811B Cable de red azul 1 m Cat6a S/FTP (S-STP)

The InLine B-76811B is a Cat 6A networking cable (1 m) supplied in an ecoPack containing 70 pieces in a single PE bag and an outer cardboard box for moisture protection. The cable uses an S/FTP (PiMf) 4x2xAWG26/7 structure with a solid copper core, total braid shielding plus paired foil shields, and a halogen-free LSZH jacket compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2 and IEC 61034. The RJ45 plug features 50 µ" gold-plated contacts, a special design with locking lug protection and a blue-colored plug for easy differentiation. The cable supports Gigabit and 10 Gigabit applications and is rated Cat.6A up to 500 MHz.

Advantages

Bulk ecoPack packaging reduces individual wrapping and waste, offering lower material use and cost savings. The PE bag and outer box provide moisture protection while enabling quicker unpacking and efficient carton utilization. The cable's S/FTP construction and full shielding provide reliable signal integrity for high-speed networks, and the LSZH sheath meets fire and smoke standards for safer indoor installation.

Suitable for

• Connecting network devices in home and office environments
• Gigabit Ethernet and 10 Gigabit Ethernet applications
• Structured cabling installations where Cat.6A performance up to 500 MHz is required
• Installations that require LSZH (halogen-free) cables for improved safety

Key specifications

• Model: InLine B-76811B
• Category: Cat.6A, up to 500 MHz
• Length: 1 m
• Cable structure: S/FTP (PiMf) 4x2xAWG26/7, solid copper core
• Shielding: Total braid shield with paired foil shielding
• Connector: RJ45 with 50 µ" gold-plated contacts, blue plug, locking lug protection
• Sheath: Halogen-free LSZH, compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034

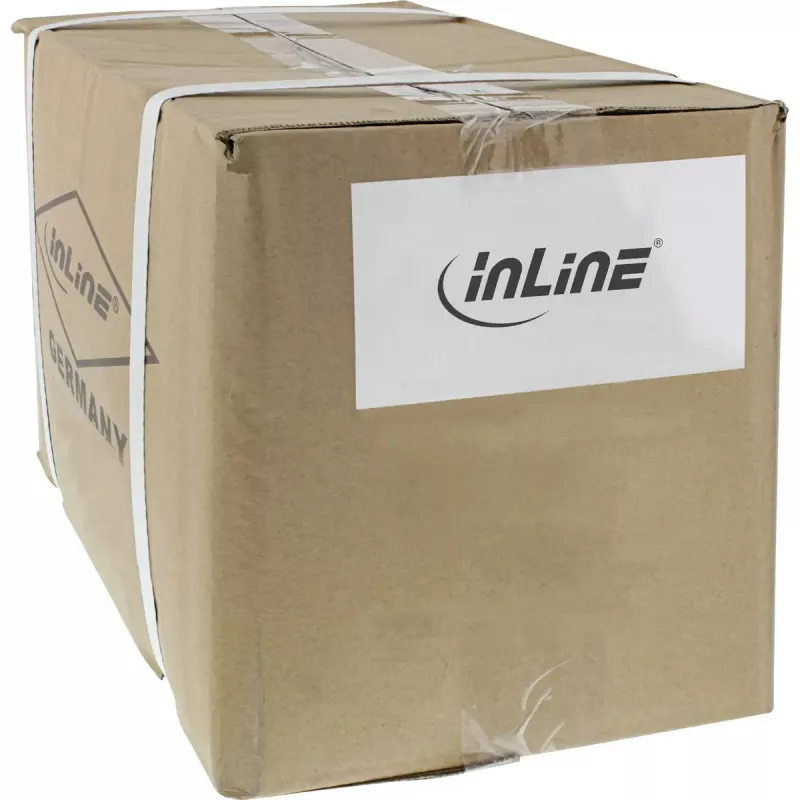

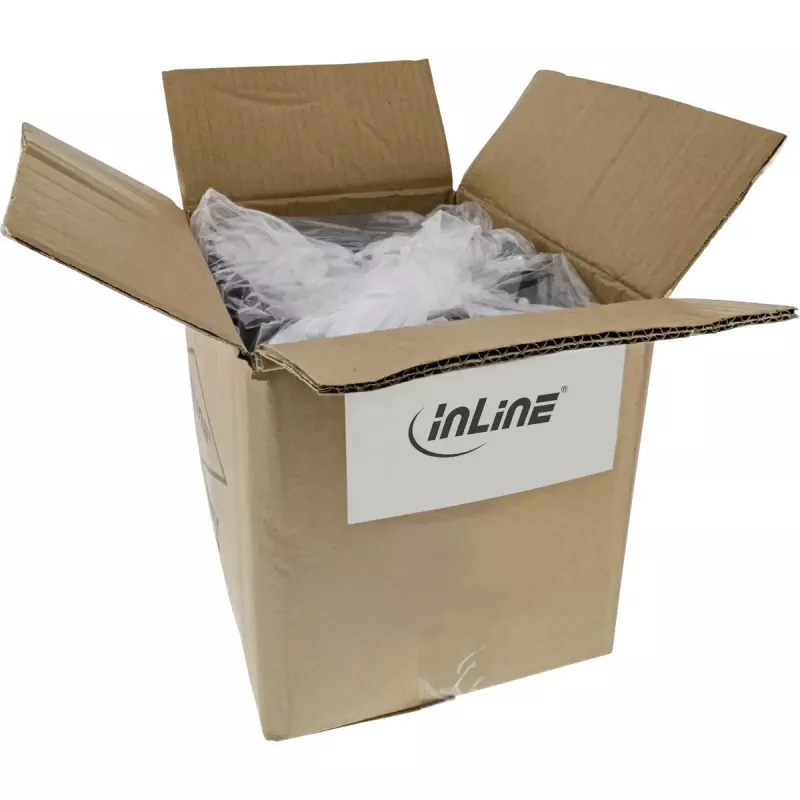

• Packaging: 70 pieces per ecoPack (PE bag + outer box)
• EAN: 4043718342730

How to use

Remove the required cable from the PE bag and connect the RJ45 plugs to the corresponding Ethernet ports on devices or patch panels. Ensure connectors are fully inserted until the locking lug engages. Route and secure the cable following standard cable management practices and maintain bend radii recommended for Cat.6A cabling to preserve performance.

Recommendations

For best results use the InLine B-76811B in structured cabling installations or device-to-device connections requiring Cat.6A performance. Store the ecoPack in a dry place and handle the cables carefully to avoid damaging the RJ45 plugs or jacket. The ecoPack format is intended for direct use or professional installation; buying in bulk reduces per-unit cost but plan quantities to match installation needs.
