InLine Cable activo amplificador de señal USB 2.0 Type-A macho / A hembra, 25 m

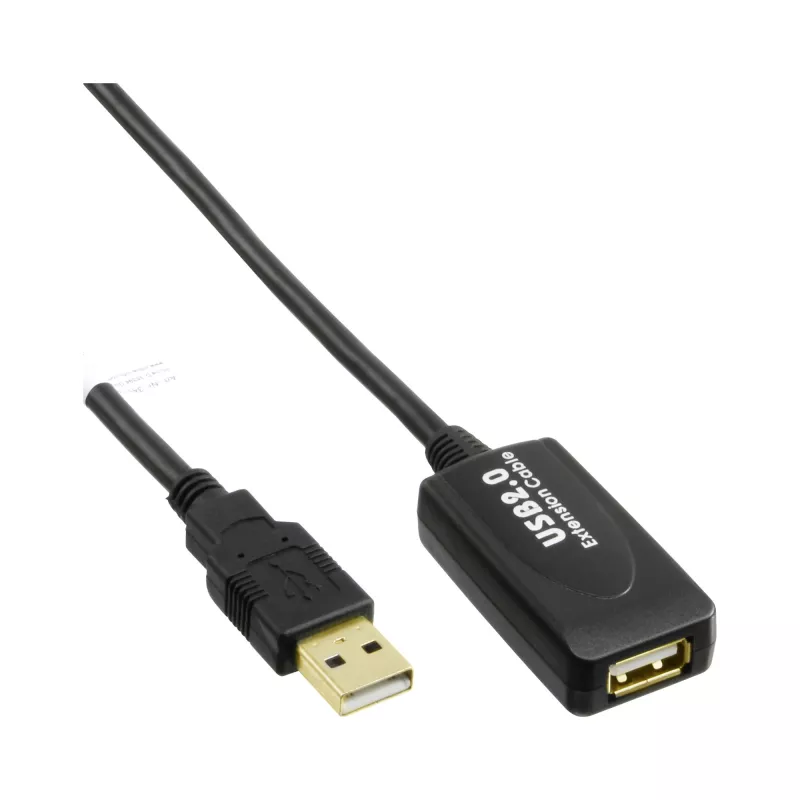

The InLine USB 2.0 Active Signal Repeater Cable InLine 34614I 25m is an active USB extension cable with USB A male and USB A female connectors. It boosts and retransmits the USB 2.0 signal to extend a USB connection up to 25 metres without additional drivers or external power. The cable supports the USB 2.0 specification with a maximum data rate of 0.48 Gbit/s and is finished in black for general-purpose use.

Advantages

This active repeater cable amplifies the USB signal inline, acting similarly to a hub to maintain signal integrity over extended distances. No external power supply is required, and Windows systems do not need additional drivers. The design supports standard USB 2.0 devices while keeping installation simple and plug-and-play.

Suitable for

• Extending USB peripherals such as printers, scanners or external drives where the built-in cable is too short
• Connecting USB devices in offices, classrooms or trade show booths across longer runs
• Temporary or permanent installations that require a single extended USB connection without intermediate hubs

Key specifications

• Brand: InLine
• Model / MPN: 34614I
• EAN: 4043718182893
• Connector 1: USB A (male)
• Connector 2: USB A (female)
• USB version: USB 2.0 (Hi-Speed)
• Maximum data rate: 0.48 Gbit/s
• Cable length: 25 m
• Colour: Black

How to use

Connect the male USB A plug to the host computer or upstream USB hub, then connect your USB device to the female USB A socket. The inline electronics will amplify and retransmit the signal automatically. No driver installation is required on Windows; other operating systems typically recognise the device as a standard USB 2.0 extension. Ensure the connected USB device provides sufficient power for the extended run; the maximum usable length depends on the device's power consumption.

Recommendations

For best results, use this active repeater cable with low-to-moderate power USB peripherals or with devices that have their own power supply. If a connected device requires significant current (for example some external hard drives or charging devices), consider using a powered USB hub or a device with its own power source to ensure stable operation over the full 25 m length.
