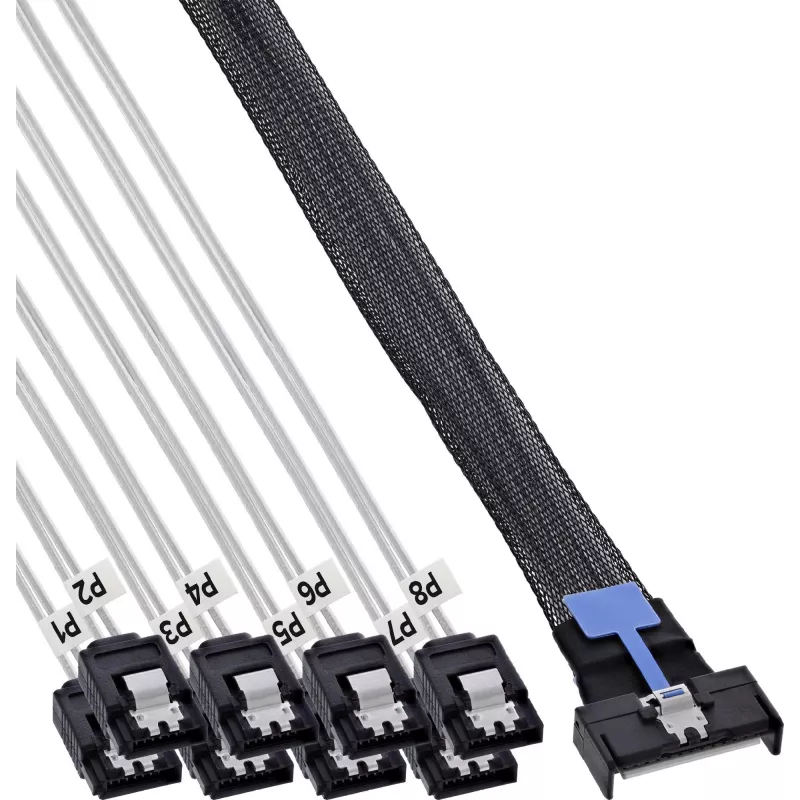

InLine® cable breakout MCIO x8 a 8x SATA, 1 m

Internal storage breakout cable that expands a single MCIO x8 host port into eight individual SATA data connections, enabling high-density drive connectivity in servers and storage arrays. With a 1-meter reach and SATA III 6 Gbps per channel, it delivers reliable, high-speed data transfer for up to eight SATA drives from one compact MCIO connector.

Advantages

This cable consolidates eight SATA data links into a single MCIO x8 port, reducing cable clutter and simplifying storage expansion. The copper conductors and shielding ensure stable signal integrity, while the black jacket blends seamlessly into internal builds. It supports SATA I, II, and III devices, offering backward compatibility and future-proofing for mixed drive environments.

Suitable for

• Servers and workstations with MCIO x8 host controllers
• Storage arrays and JBOD enclosures requiring multiple SATA drives
• IT professionals building high-density storage solutions
• System integrators connecting up to eight SATA HDDs or SSDs

Key specifications

• Host connector: MCIO x8 (SFF-8654 8i)
• Device connectors: 8x SATA 7-pin data
• Cable length: 1 meter
• Data transfer rate: up to 6 Gbps per SATA port (SATA III)
• Conductor material: copper
• Shielding: yes
• Form factor: internal
• Power delivery: data only (no power connectors)

Recommendations

For optimal performance, pair this breakout cable with a compatible MCIO x8 host adapter and high-quality SATA drives. Ensure proper airflow in the chassis to maintain signal integrity and drive longevity.
