InLine cable de fibra óptica simplex FTTH SC/APC 8° a SC/APC 8° 9/125µm OS2 5 m

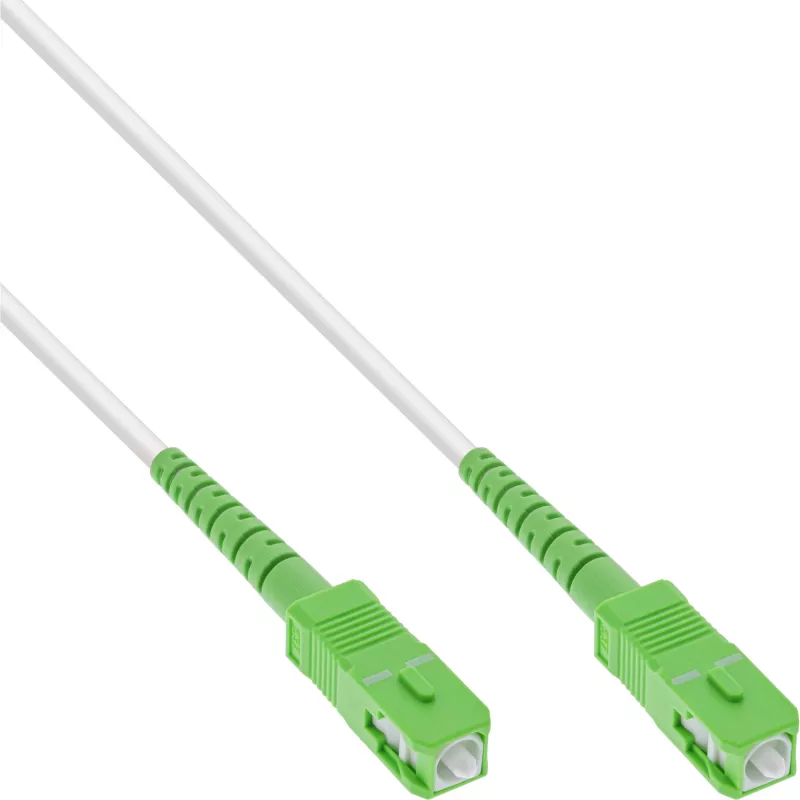

InLine Fiber Optical Simplex Cable FTTH SC/APC 8° to SC/APC 8° 9/125µm OS2 5 m is a single‑mode simplex patch cable designed for FTTH, telecom and data network connections. The cable features SC/APC 8° connectors on both ends and a 9/125 µm OS2 fibre core, providing low-loss, angle-polished connections suitable where return loss and signal integrity are important. The 5 m length and white outer sheath make this cable suitable for routing between a household fibre entry point and an optical modem or for short links inside networking cabinets.

Advantages of this InLine FTTH cable include a compact 3.0 mm armoured outer diameter with a stainless steel spiral tube reinforcement that improves mechanical stability compared with thin provider-supplied leads. The halogen‑free sheath and white colour enable inconspicuous indoor installation, while APC 8° polished SC connectors reduce back-reflection, supporting reliable singlemode transmission. Typical insertion loss is low and the cable is supplied with a test report documenting performance.

Advantages

The cable combines single‑mode OS2 fibre with SC/APC angle‑polished connectors to ensure high return‑loss and low insertion loss for FTTH and telecom links. Reinforcement with a flexible metal spiral tube and a 3.0 mm halogen‑free jacket improves durability and handling compared with very thin pre‑installed leads. The white outer jacket provides a discreet appearance for visible indoor runs.

Suitable for

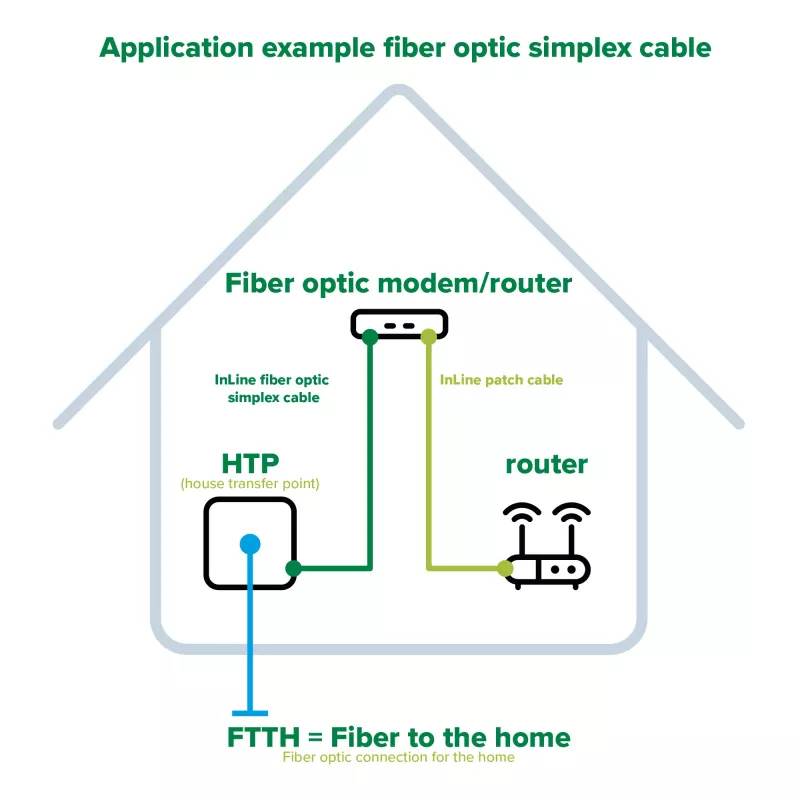

• Patching between FTTH household entry point and optical modem or ONT
• Short singlemode links within telecom or data cabinets
• Connecting splice panels, terminal equipment or wall outlets requiring APC connectors
• Situations where low back‑reflection is required (voice, IPTV, high‑speed data)

When it may not be suitable

This 5 m single‑fibre simplex cable is intended for short indoor runs and direct patching. It is not designed for multi‑fibre trunking, long‑haul outdoor installations, or environments where armoured cables with different protective layers or thicker jackets are required for direct burial or heavy industrial exposure. If you need a duplex connection, multiservice cable, or significantly longer outdoor-rated cabling, choose a different product.

Key specifications

• Fibre type: Single‑mode OS2, 9/125 µm
• Connectors: SC/APC 8° to SC/APC 8° (angle‑polished)
• Cable length: 5 m
• Outer diameter (armoured): 3.0 mm ±0.2 mm
• Jacket: Halogen‑free, white
• Mechanical reinforcement: stainless steel spiral tube
• Typical insertion loss: <0.20 dB (typical); <0.30 dB (max)
• Return loss: >60 dB
• Operating temperature range: -40 to +85 °C

How to use

Route the InLine FTTH SC/APC simplex cable between the fibre entry point or wall outlet and the optical modem or ONT, ensuring connectors are kept clean and free of dust. Remove protective caps only when making a connection and, if available, use a fibre connector cleaner or lint‑free wipe with isopropyl alcohol for both connectors before insertion. Avoid tight bends; respect the minimum bend radius recommended for 3.0 mm armoured cables to prevent increased attenuation. After connecting, secure excess cable length to prevent strain on connectors.

What to consider before purchase

• Required connector type: confirm SC/APC (angle polished) is compatible with your devices and wall outlets
• Length: 5 m is suited for short indoor runs; measure routing path before buying
• Single‑mode vs multimode: this is single‑mode OS2 (9/125 µm) for long‑distance/singlemode networks
• Indoor use and mechanical protection: armoured 3.0 mm design improves robustness but is not a substitute for outdoor or direct‑burial rated cable

Recommendations

Keep connector end caps on until final connection, clean APC connectors before mating, avoid tight bending and secure the cable to prevent movement or strain. For installations requiring repeated reconnection or outdoor exposure, consider connector-protecting adapters or an outdoor-rated assembly.
