InLine Cable de red S/FTP PiMF Cat.6 250M Hz cobre libre de halógenos rojo 10m

Interference-free Gigabit transmission:Double S/FTP shielding (PiMf) for stable network connections up to 250 MHz.
Halogen-free cable sheathing:Ideal for safety-critical environments such as public institutions and industrial facilities.
Reliable signal quality:Solid copper strands (AWG27) guarantee low-loss data transmission over all lengths.

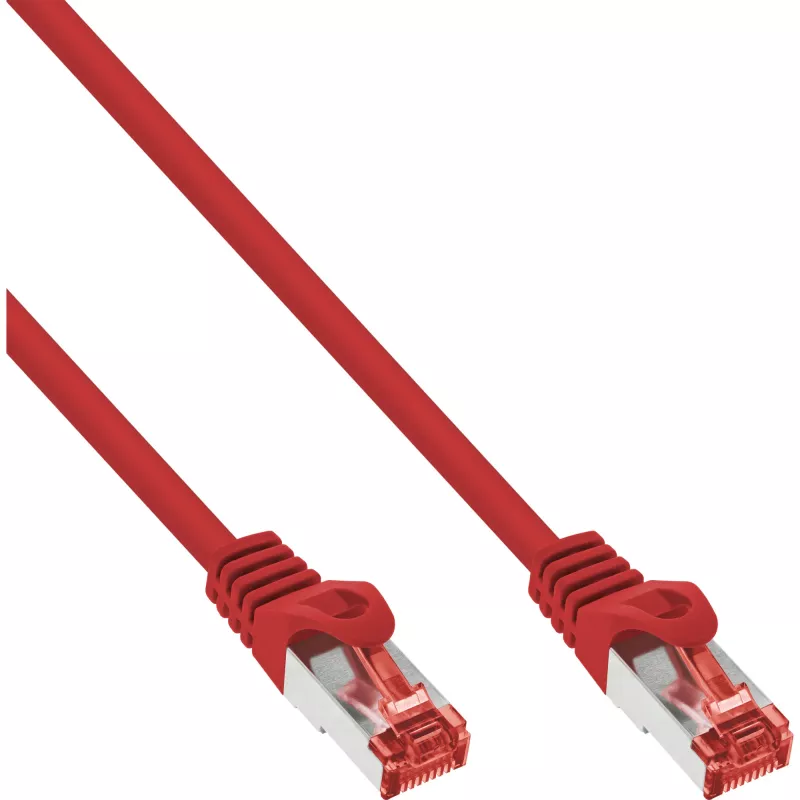

High mechanical resilience:Robust RJ45 connectors with molded bend and snap protection for long-term use.
Practical features:Length marking on the connector, assembled with molded connectors and red-marked RJ45 connector for quick identification.

The InLine® Cat.6 patch cables with S/FTP shielding (PiMf) are specially designed for professional network installations in IT, industry, and public institutions. They support Gigabit connections at frequencies up to 250 MHz and offer impressive transmission reliability thanks to the combination of overall braided shielding and paired metal foil shielding. The solid copper strands in AWG27 format ensure reliable, low-loss signal transmission even over longer distances. The RJ45 connectors, molded on both sides, are equipped with kink protection, snap-on protection, and a red marking—ideal for quick identification during installation. In addition, the cable length is indicated directly on the connector, which simplifies organization in the server cabinet or patch panel. The halogen-free sheath protects against toxic gases in the event of a fire and thus meets the requirements of safety-critical applications. The cables are assigned 1:1 in accordance with EIA/TIA-568B.

2x RJ45 plugs molded
Injected kink protection and snap-in protection
Red-colored RJ45 plug for quick differentiation
AWG27 wire cross-section with solid copper strands
Total braided shielding and PiMf - Paired in metal foil (old designation: S-STP PiMf)
Halogen-free sheath
With length indication on the connector
1:1 assignment according to EIA/TIA 568B
In POS-compatible PE bag with EAN code

InLine Patch Cable S/FTP PiMF Cat.6 250MHz copper halogen free red 10m. Cable length: 10 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Data transfer rate: 1000 Mbit/s, Product colour: Red

How to use

Plug one RJ-45 connector into the network device (switch, router or network card) and the other into the corresponding RJ-45 port on the destination device or patch panel. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and mechanical stress that could degrade performance. For tidy installations, use cable ties or horizontal managers while avoiding excessive compression of the cable.

Recommendations

For optimal performance, use this Cat.6 S/FTP cable in structured cabling up to 10 meters for horizontal runs and avoid running parallel to high-voltage power lines to minimize interference.
