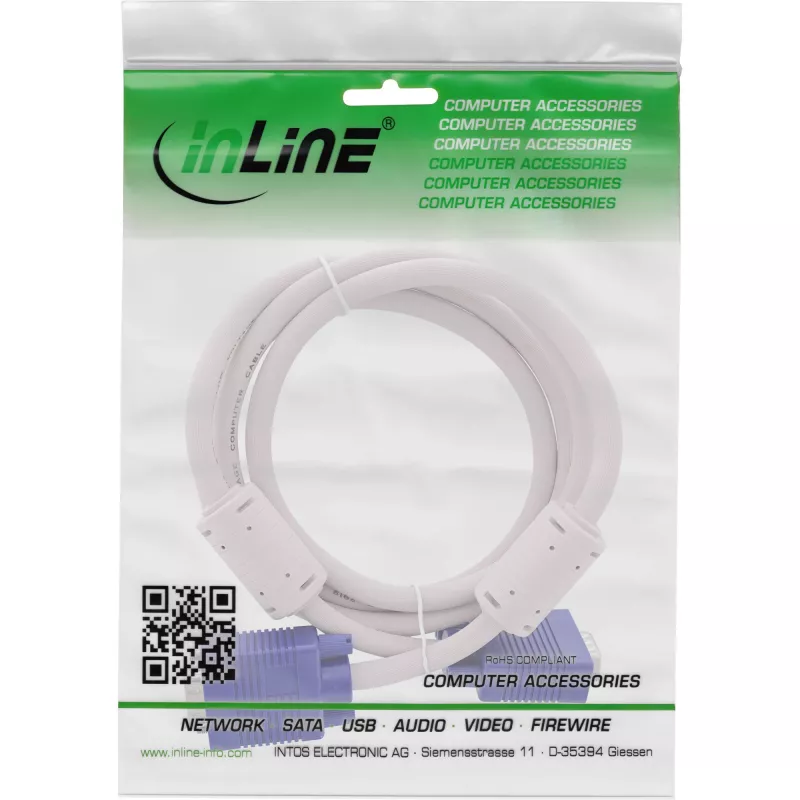

InLine cable S-VGA 15 HD gris conector macho/conector macho 2 m

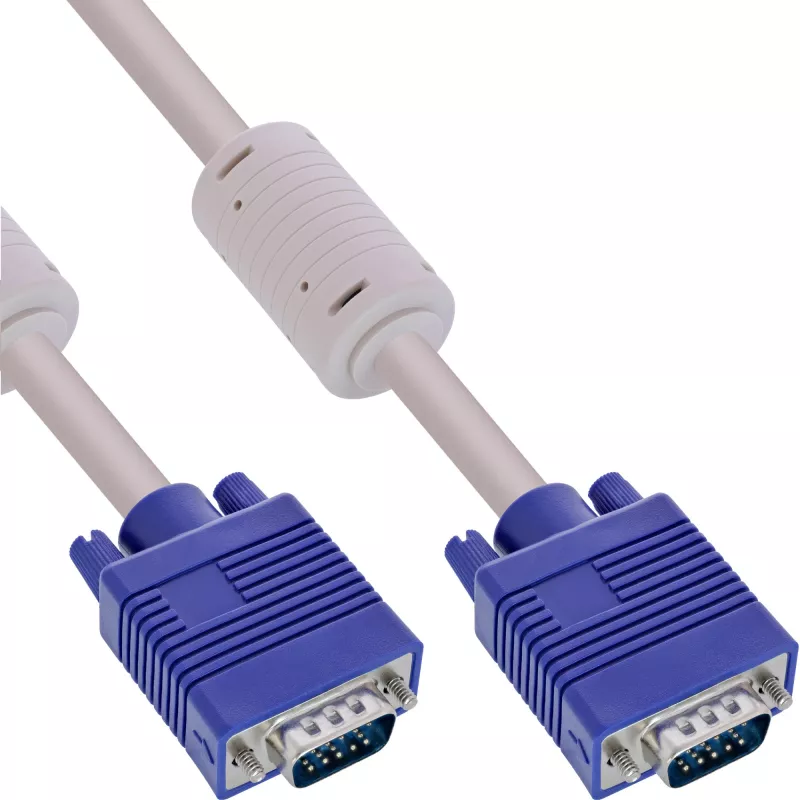

The InLine S-VGA Cable 17719 is a 2 m male-to-male video cable designed for reliable analog video signal transmission between devices with 15-pin SVGA ports. The cable contains three single-shielded coaxial lines for the RGB signals and seven data lines, and uses 15-pin connectors with 1:1 wiring (pin 9 is not connected). Connectors are colour-coded blue according to the PC99 standard for easy port identification. Gold-plated contacts improve signal transfer and resist corrosion while the beige housing provides a neutral appearance for various setups.

Advantages

The cable’s construction with separate coaxial lines for RGB and additional data lines supports stable video transmission. Double shielding reduces electromagnetic interference, and gold-plated connector contacts enhance conductivity and durability. Colour-coded connectors simplify installation by matching PC99 ports, and the 2 m length offers flexibility for typical desktop and AV arrangements.

Suitable for

• Connecting SVGA monitors to desktop PCs
• Linking projectors with 15-pin SVGA ports
• Use in office or home workstation setups
• Temporary AV connections for presentations

Key specifications

• Length: 2 m
• Connector type: 15-pin S-VGA (male/male), 1:1 wiring (pin 9 not connected)
• Conductor layout: 3 single-shielded coaxial lines (RGB) + 7 data lines
• Shielding: double shielding for video signals
• Contacts: gold-plated
• Colour: beige housing, blue connector inserts (PC99)
• Brand / MPN / EAN: InLine / 17719 / 4043718177196

How to use

Insert one 15-pin S-VGA connector into the monitor or display port and the other end into the computer or video source. Tighten the connector screws by hand to secure the connection. Ensure both devices are powered off when connecting or disconnecting to avoid signal issues or damage. After connection, power on the devices and verify the display settings on your computer if necessary.

Recommendations

For best signal quality, avoid running the S-VGA cable parallel and close to high-voltage power cables or strong RF sources. Use the 2 m length for typical desktop distances; for longer routing, choose a longer cable to prevent tension on connectors.
