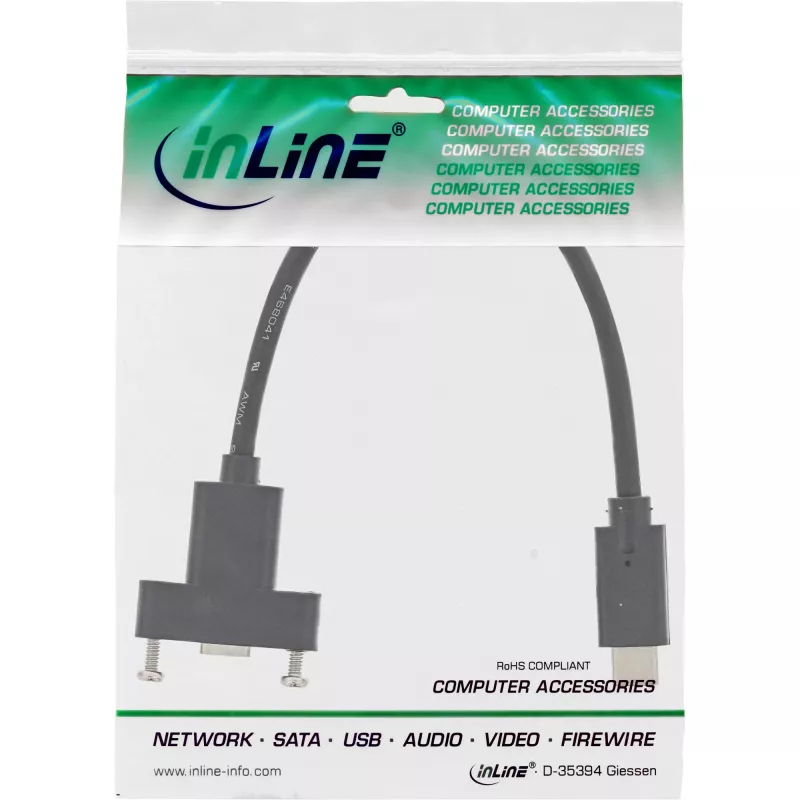

Cable USB 3.2 Gen.2 Type-C macho/hembra con brida, negro, 0,20 m

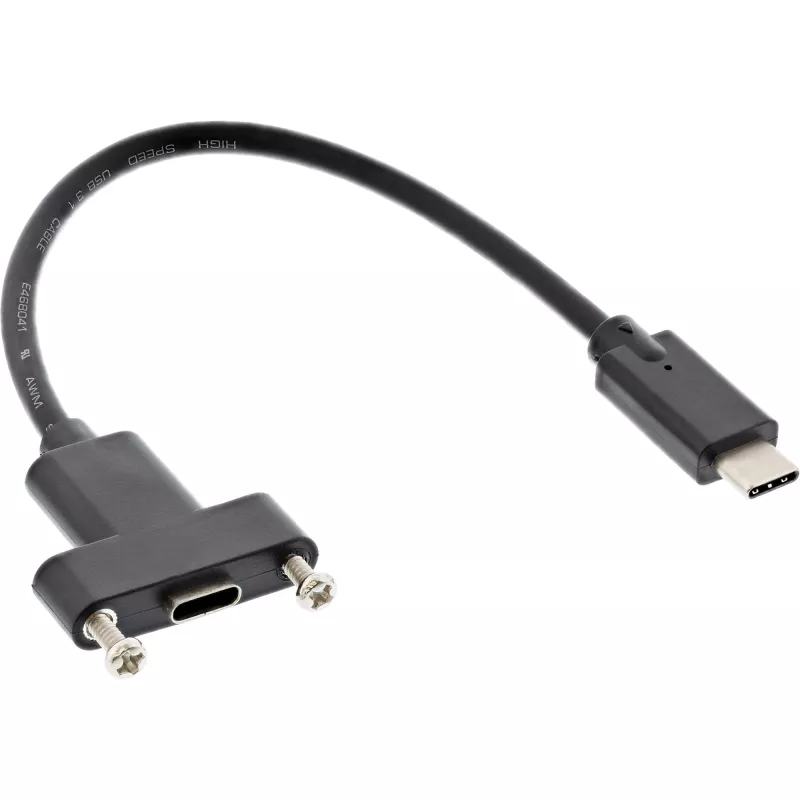

InLine USB 3.2 Gen.2 C male to C female flange cable, 0.20 m, black. This short panel-mount cable provides a USB-C plug on one end and a secured panel jack (flange) USB-C on the other, suitable for creating a fixed USB-C port on equipment or enclosures. It supports USB 3.2 Gen 1 data transmission speeds up to 5 Gbit/s and is intended for durable, space-saving connections where a permanent or semi-permanent port is required.

Advantages

The InLine cable combines a male USB-C plug with a female flange jack to simplify panel installation and reduce strain on internal connections. Its 0.20 m length limits cable clutter in compact setups, while the black finish matches most equipment. Built to support USB 3.2 Gen 1 speeds, it enables fast data transfer for compatible devices and preserves signal integrity in short runs.

Suitable for

• Creating a fixed USB-C port on a PC case, rack or enclosure
• Connecting external drives or peripherals in cramped spaces
• Workshop, kiosk or machine interfaces requiring a panel-mounted USB-C
• Short connections between nearby devices where high data rate is needed

Key specifications

• Brand: InLine
• Model / MPN: 33441G
• EAN: 4043718257133
• Connector 1: USB C (male)
• Connector 2: USB C (female, flange/panel jack)
• USB version: USB 3.2 Gen 1 (3.1 Gen 1)
• Maximum data transfer rate: up to 5 Gbit/s
• Cable length: 0.20 m
• Colour: Black

How to use

Insert the male USB-C plug into the host or device port. Mount the female flange jack into the panel or enclosure cut-out and secure it with the flange hardware. Connect the external USB-C cable or device to the panel-mounted jack. Verify the connection and, if required, check host device settings or drivers for USB 3.2 Gen 1 operation.

Recommendations

Use this short InLine USB-C male/female flange cable for permanent or semi-permanent panel installations and short-distance connections; avoid stretching the cable and ensure the flange is properly fastened to prevent stress on ports. For longer runs, choose a longer cable rated for the required USB version.
