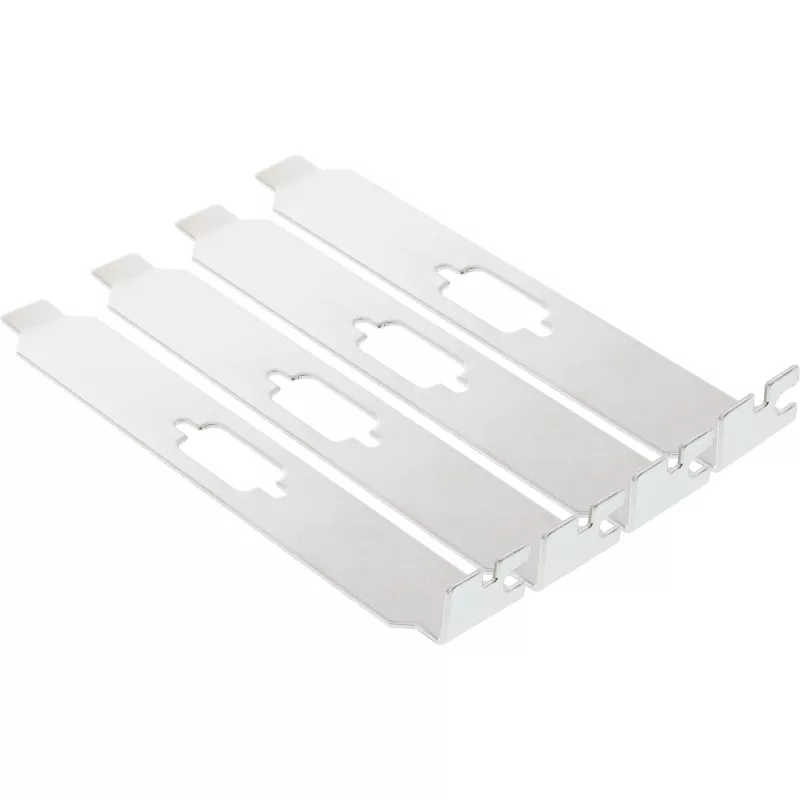

InLine chapa de ranura con hueco para conector hembra o macho Sub-D de 9 pines, 4 uds.

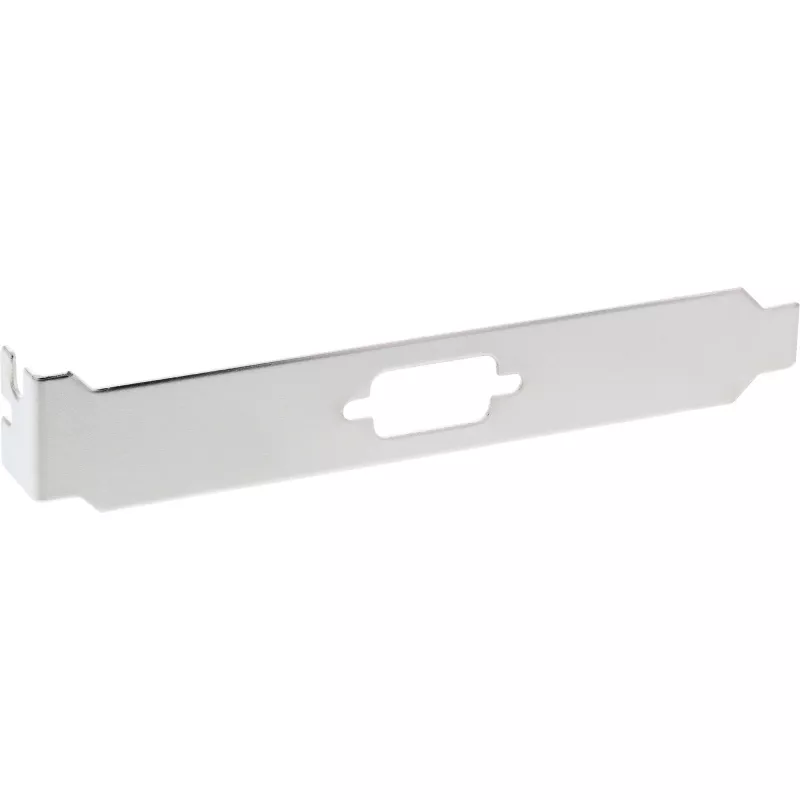

The InLine Slot Bracket with hole for 9 Pin Sub-D (male or female) is a metal mounting bracket designed to install 9‑pin Sub‑D connectors into the backplane panel of a case or server via an available PCI slot. Supplied in a pack of four with a silver finish, the bracket provides a durable and standard-compatible mounting solution for D‑sub connectors in enclosures and control panels.

Advantages

The bracket is made of metal for rigidity and long service life, fits standard PCI slot openings, and accepts both male and female 9‑pin Sub‑D connectors. Supplied as a set of four, it allows multiple connectors to be mounted quickly and keeps rear panels organized while maintaining a neat, silver appearance.

Suitable for

Key specifications

How to use

Insert the bracket into an available PCI slot on the case or server backplane and secure it according to the chassis' retention method. Pass the 9‑pin Sub‑D connector through the bracket hole from inside the case or from the outside, then fasten the connector to the bracket using the connector's mounting screws. Ensure the connector is tightened to provide a stable mechanical and electrical interface.

Recommendations

Verify the connector orientation (male or female) before installation and check that the case has an unused PCI slot that matches the bracket position. Use appropriate torque on the connector screws to avoid damaging threads or the bracket; consider grounding the bracket if used in environments where EMI shielding is required.
