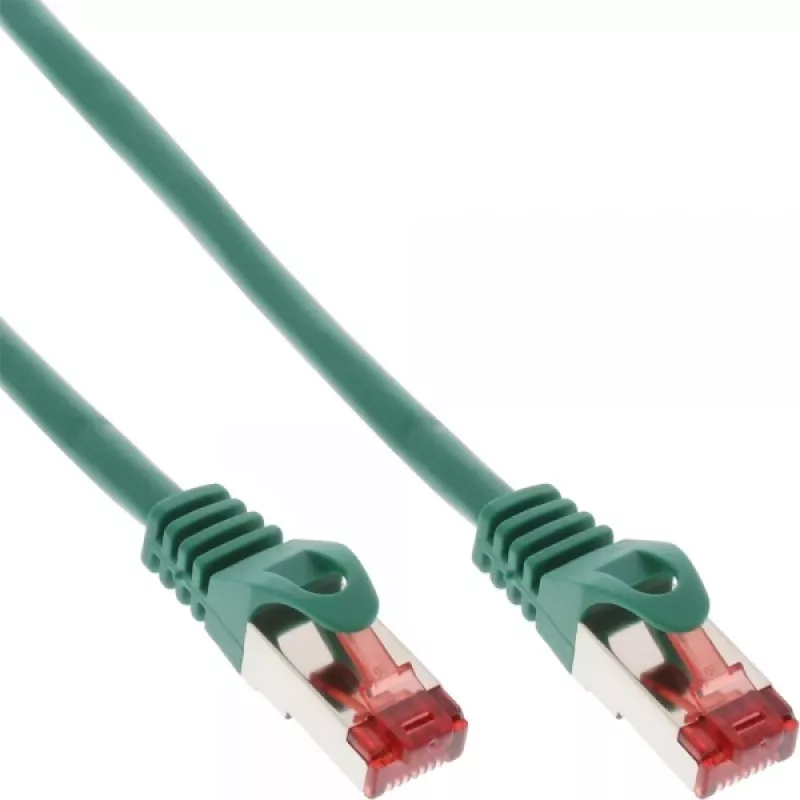

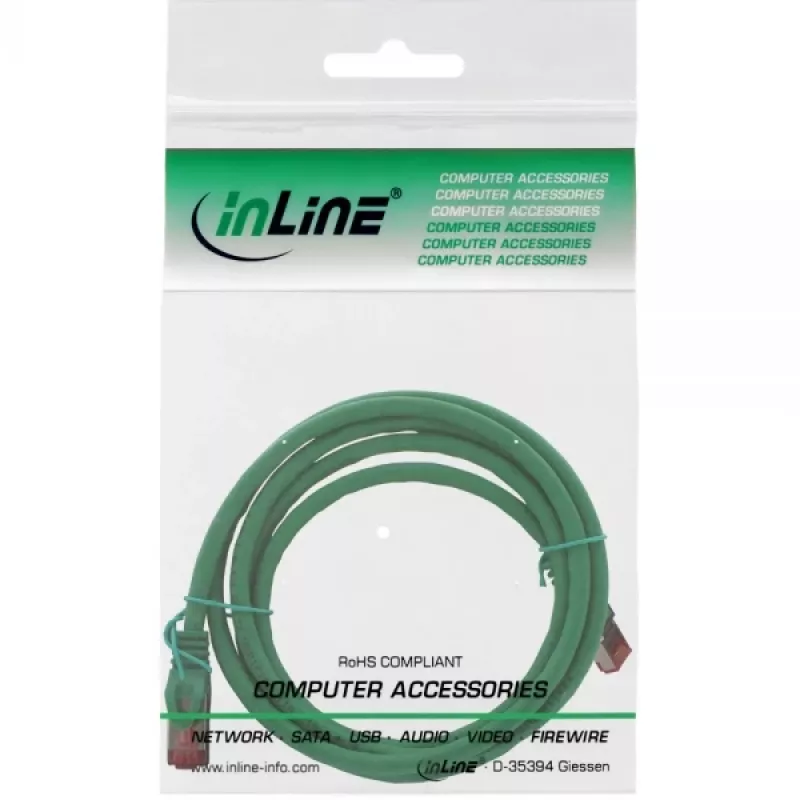

Cable de conexión InLine 76912G Cat6 S/FTP (PiMF), 1,5 m, libre de halógenos, verde

The InLine 76912G is a Cat.6 S/FTP (PiMf) patch cable with a halogen-free sheath, designed for connecting network components with RJ45 ports such as switches, routers, patch panels, and network cards. It supports Gigabit connections (1 Gbps) at a frequency of up to 250 MHz and features molded RJ45 plugs with kink and snap-in protection.

Key features

• Cat.6 S/FTP (PiMf) shielding: overall braided shield and pairs in metal foil (old designation: S-STP PiMf)
• Halogen-free sheath (LSZH)
• 2x RJ45 plugs, molded, with injected kink protection and snap-in protection
• Red-colored RJ45 plug for quick differentiation
• Length indication on the connector
• 1:1 assignment according to EIA/TIA 568B
• Gigabit capable (1 Gbps at up to 250 MHz)
• Solid copper strands (CU) with AWG27 cross-section
• PoE/PoE+/PoE++: Yes
• Round cable design

Specifications

• Brand: InLine
• MPN: 76912G
• Type: Cat.6
• Shielding: S/FTP (PiMf)
• Length: 1.50 m (150 cm)
• Side A: RJ45 plug straight
• Side B: RJ45 plug straight
• Conductor material: CU (copper)
• Outer diameter: 6.2 mm
• Diameter: AWG 27
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Colour: Green
• EAN: 4043718206711
