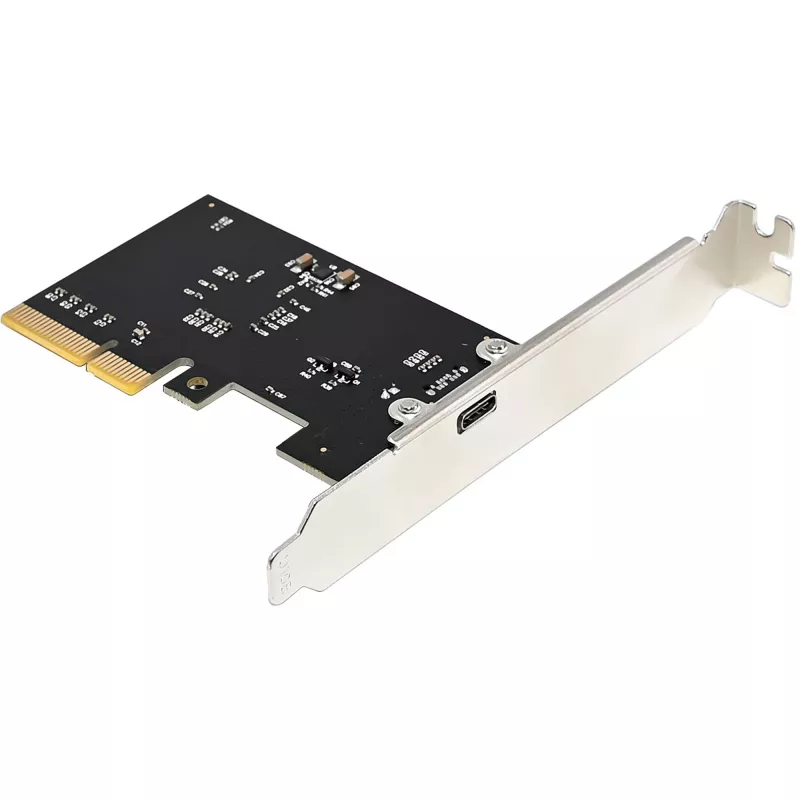

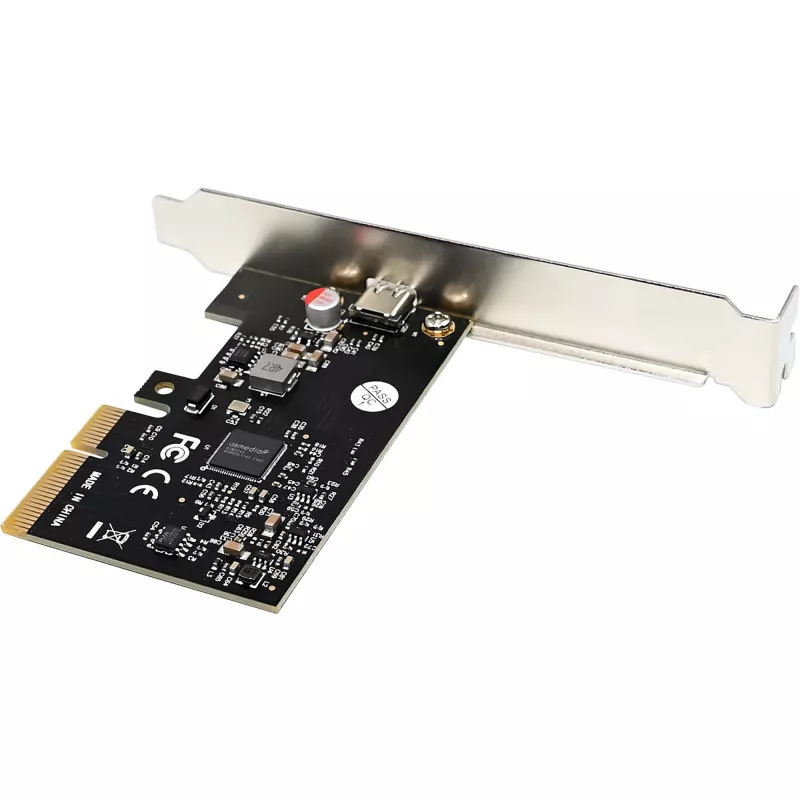

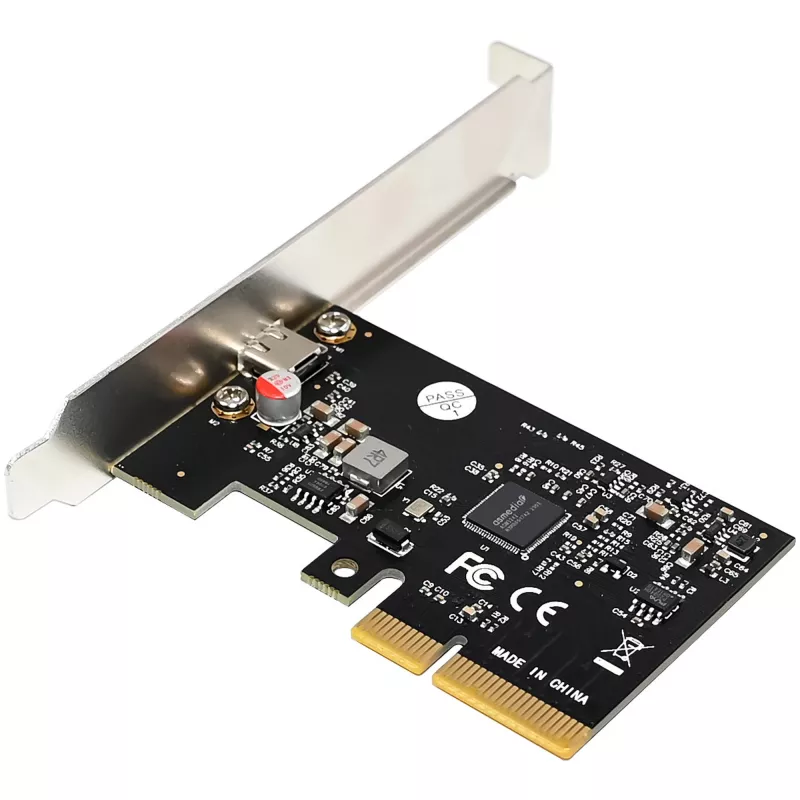

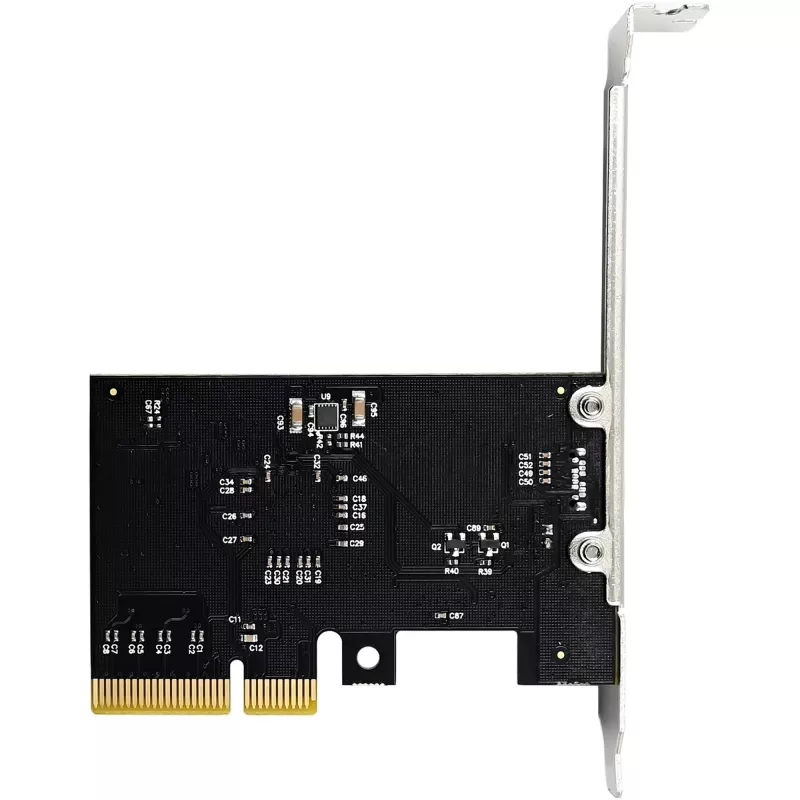

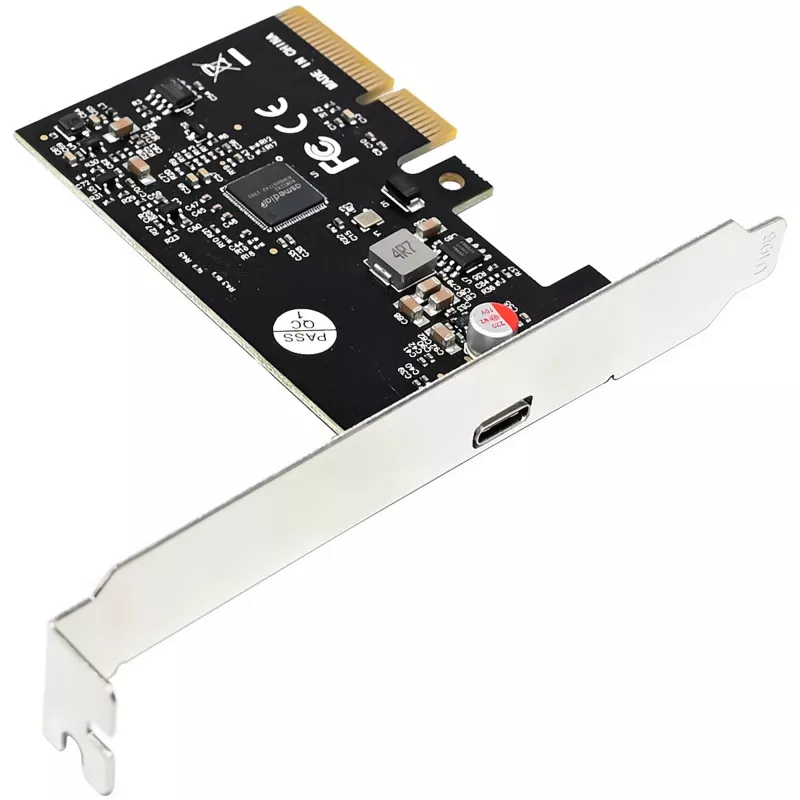

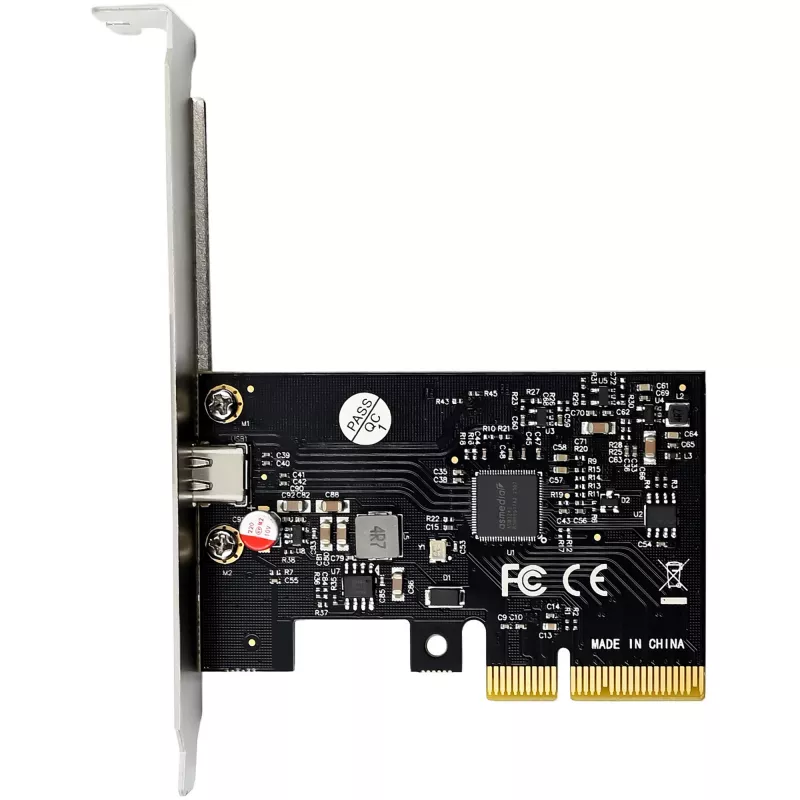

InLine Tarjeta adaptadora USB Type-C interna 76660I PCIe 20 Gbit/s

Connection:1x USB-C socket
Specification:USB 3.2 Gen.2x2 with up to 20 Gb/s
PCIe 3.0 x4 interface- compatible with x4, x8 and x16 slots
ASMedia ASM3242 chipsetfor high performance and stability
Supports UASP (USB Attached SCSI Protocol)for optimized data transfer
Plug & Play functionality- no driver required

The InLine® PCIe interface cardadds a high-performance USB-C portwith support for the USB 3.2 Gen.2x2 standardto your PC. This enables extremely fast data transfer rates of up to 20 Gb/s- ideal for NVMe SSDs, external storage solutions and high-performance peripherals.
Thanks to the PCIe 3.0 x4 connection, the card offers high bandwidth and is compatible with x4, x8 and x16 slots. With Plug & Play functionality, modern UASP supportand optimized bandwidth management, it is a powerful addition to any system.
Technical data:

Bus type & PCIe: PCIe v3.0 (8 GT/s) x4 lane (compatible with x4, x8, x16 slots)
Chip set: ASMedia ASM3242
Power supply via USB-C: Up to 5 V/3 A
Form factor: Low profile
Dimensions: 79 mm x 51 mm (PCIe board)

Supported USB speeds:

SuperSpeed USB: 20 Gb/s, 10 Gb/s, 5 Gb/s
HiSpeed USB: 480 Mb/s

Features:

Plug & Play - no additional drivers required
Supports UASP (USB Attached SCSI Protocol) for optimized data transfer
Overcurrent protection for enhanced security
Optimized bandwidth by supporting multiple INs - ensures a stable and efficient connection
Backwards compatible with older USB standards

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
macOS: 10.8 and newer

Environmental conditions:

Operating temperature: 0 °C to 85 °C
Storage temperature: -25 °C to 85 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® interface card, PCIe x4, 1x USB-C, USB 3.2 Gen.2x2

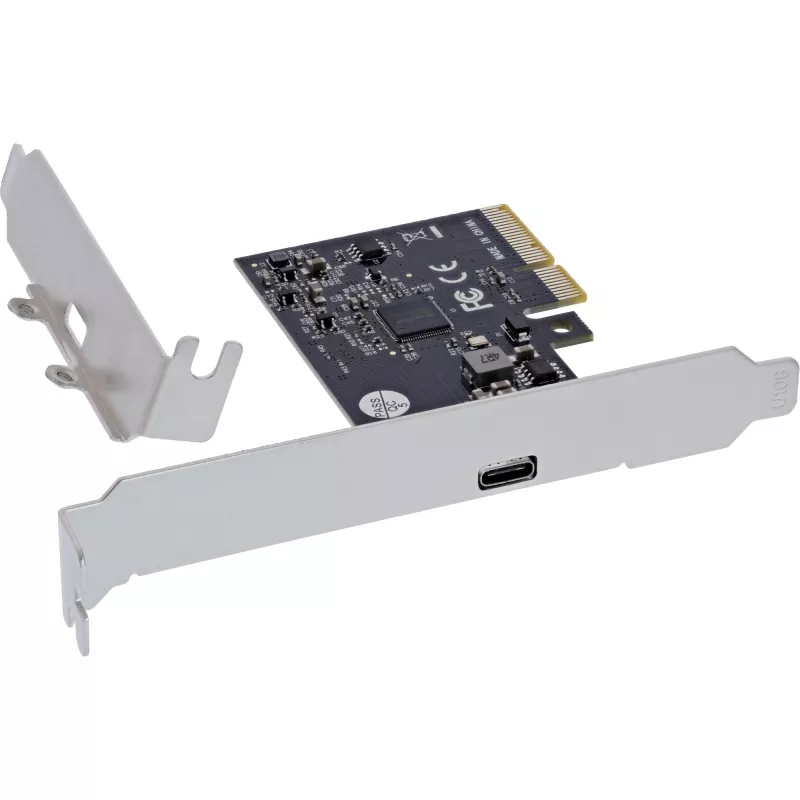

1x low-profile slot bracket
1x instruction manual (German/English)

InLine 76660I. Host interface: PCIe, Output interface: USB Type-C, Host interface gender: Male. Country of origin: Taiwan. Chipset: ASMedia ASM3242, Connector 1 gender: Female, Data transfer rate (max): 20 Gbit/s. Output voltage: 5 V, Output current: 3 A. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Mac operating systems supported: Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0..., Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel...

How to use

Install the card into an available PCIe x4 (or x8/x16) slot on the motherboard, secure the low-profile bracket if needed and connect the USB-C device to the rear port. The card supports Plug & Play so no additional drivers are typically required; ensure the system BIOS and operating system are up to date and that connected devices are compatible with USB 3.2 Gen 2x2 or lower speeds as supported.

Recommendations

For optimal performance, use high-quality USB-C cables and connect NVMe or high-speed external drives that support UASP. If you require continuous high power delivery, verify the connected device’s power needs do not exceed the card’s 5 V/3 A specification and ensure adequate case ventilation to stay within the specified operating temperature range.
