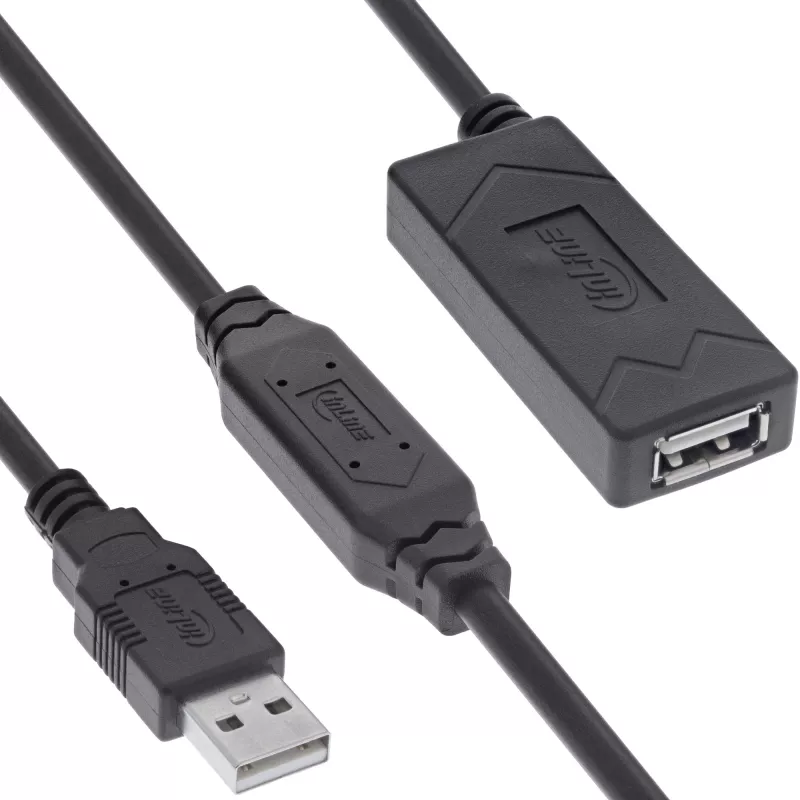

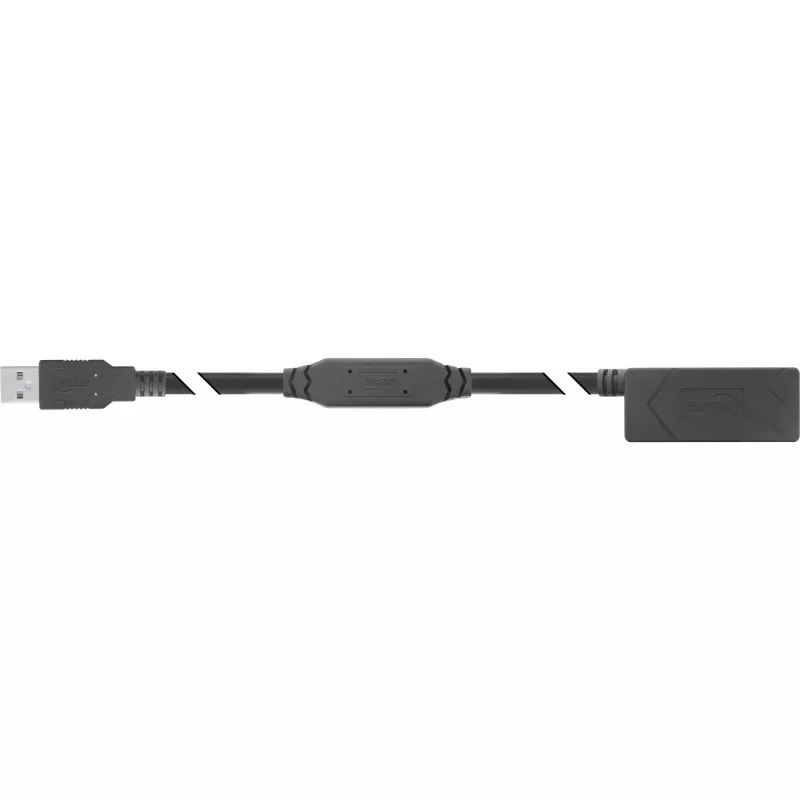

InLine USB 2.0 Alargador activo USB-A conector macho/hembra 20 m 0,48 Gbit/s

Active USB extension up to 25 m: USB-A plug to USB-A socket with integrated signal amplification for maximum range without loss of performance
Versatile use: Reliably extends connections to input devices, external hard drives, USB hubs and more
UL-certified: Approved for the US market - ideal for international projects and industrial applications
USB 2.0 standard: Transfer rates up to 480 Mbit/s, backwards compatible with USB 1.1

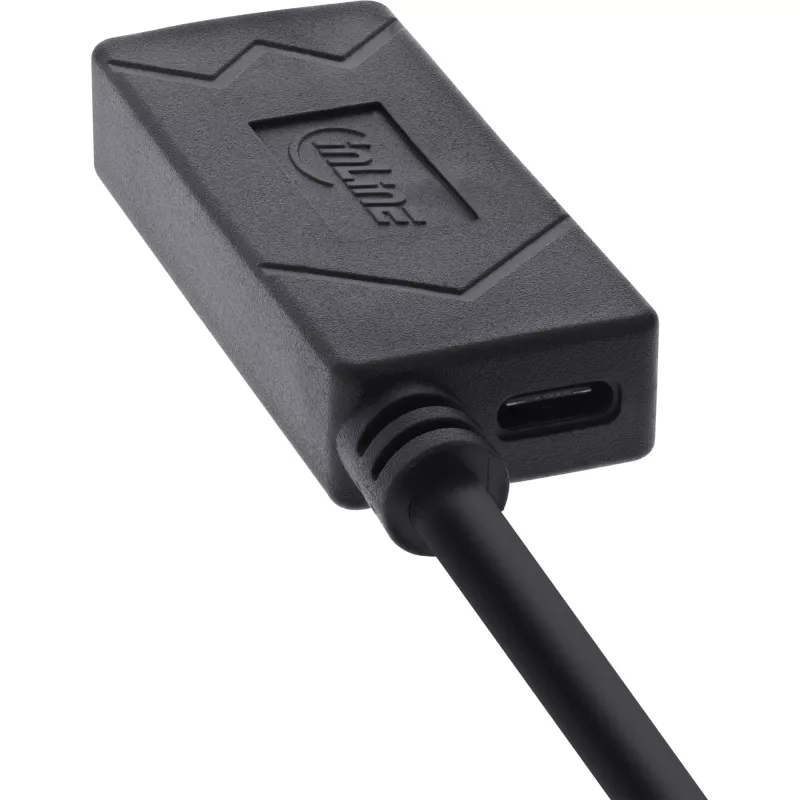

Optional additional power supply: Additional USB-C power connection on the receiver side for particularly power-intensive applications

The InLine® USB 2.0 active extension with USB-A plug to USB-A socket offers a powerful solution for professional use where USB connections over longer distances are required. Thanks to the integrated signal amplification, your data connections remain stable and interference-free even with cable lengths of up to 25 meters.

This cable is ideal for connecting external hard drives, keyboards, mice or other USB-A peripherals in offices, public authorities or industrial facilities. Thanks to the UL certification, the product can also be used in the US market without any problems. The high-quality workmanship ensures a long service life even with frequent use.

The optional power supply via an additional USB-C port on the receiver side allows the operation of devices with higher power requirements. Installation is plug & play, without any additional drivers or software.

USB version: USB 2.0, backwards compatible with USB 1.1
Transfer speed: Up to 480 Mbit/s
Power supply: Via USB, optionally via USB-C on the receiver
Signal amplification: Integrated electronics
Compatibility: USB-A devices such as keyboards, mice, external drives
Certification: UL (suitable for USA)
Available lengths: 5 m to 25 m

InLine USB 2.0 active extension, USB-A male/female, 20m. Cable length: 20 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Product colour: Black

How to use

Connect the male USB-A plug of the extension cable to the computer or host device and plug the USB device into the female USB-A connector at the cable’s far end. Ensure both ends are fully inserted. The active electronics inside the cable automatically amplify the signal; no external power or drivers are typically required for standard USB 2.0 devices. After connection, verify that the host recognises the attached device and that data transfer or peripheral operation is functioning.

Recommendations

For reliable operation, avoid coiling the cable tightly or placing it near strong electromagnetic sources. Use the cable in environments that meet standard indoor temperature and humidity conditions. When connecting high-power USB devices, confirm that the device’s power needs are met by the host or use a self-powered hub if necessary.
