INNE Cerradura electromagnética ZEW-280 280kg de fuerza de retención fail-safe montaje en superficie con LED

The INNE ZEW-280 stands apart from typical electromagnetic locks by delivering a robust 280 kg holding force in a compact, surface-mount design that suits wooden, glass, metal, and fireproof doors alike. Its anodized aluminum housing and high-strength steel armature plate ensure long-term durability, while the selectable 12V/24V DC operation and built-in MOV surge protection make it a reliable choice for access control systems that demand both security and simplicity.

Highlights

• 280 kg (600 lbs) holding force for secure single-door locking
• Fail-safe operation: unlocks when power is removed, ideal for safety-critical areas
• Dual voltage: 12V DC (500 mA) or 24V DC (250 mA) selectable
• LED status indicator: green when locked, red when unlocked
• Anti-residual magnetism design prevents sticking after release
• MOV surge protection guards against voltage spikes
• Silver anodized finish resists corrosion and wear

In daily use

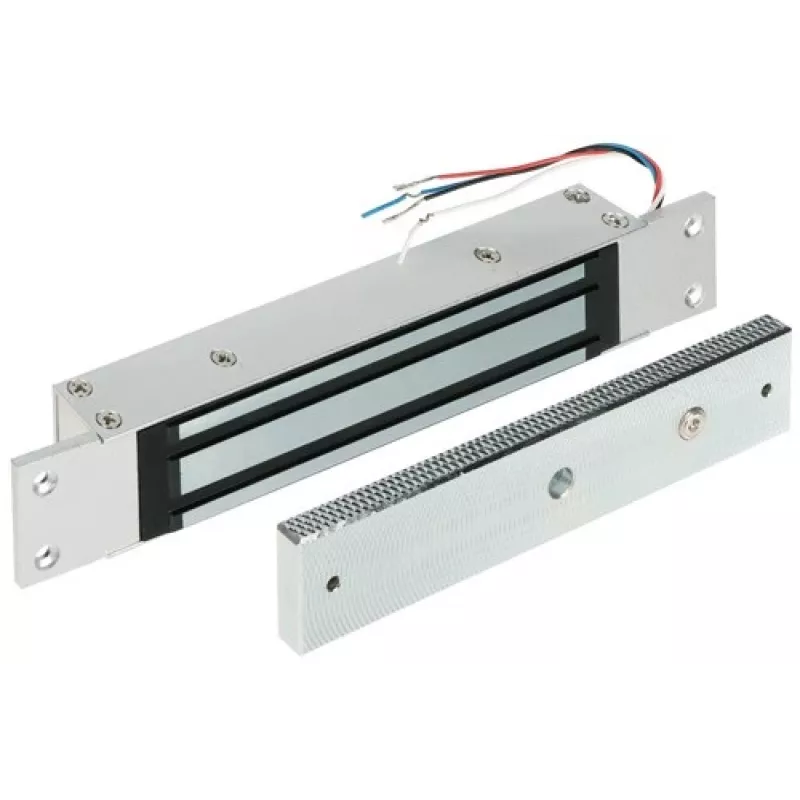

Installation is straightforward with the included mounting bracket and armature plate; the lock body measures 250 x 47 x 25 mm and the armature plate 180 x 38 x 11 mm, fitting most standard door frames. The lock operates in temperatures from -10°C to +55°C and up to 95% non-condensing humidity, making it suitable for indoor and sheltered outdoor applications. The LED indicator provides instant visual confirmation of lock status, simplifying troubleshooting and monitoring.

Full specifications

• Brand: INNE
• Model: ZEW-280
• MPN: ZEW-280
• EAN: 5902887072949
• Holding force: 280 kg (600 lbs)
• Operating voltage: 12V DC / 24V DC selectable
• Current draw: 500 mA @ 12V DC, 250 mA @ 24V DC
• Lock type: Fail-safe (power to lock)
• Mounting: Surface mount
• Door compatibility: Single door, wooden/glass/metal/fireproof
• Operating temperature: -10°C to +55°C
• Operating humidity: 0-95% non-condensing
• Lock body dimensions: 250 x 47 x 25 mm
• Armature plate dimensions: 180 x 38 x 11 mm
• Housing material: Anodized aluminum alloy
• Armature plate material: High-strength steel
• Protection: MOV surge protection, anti-residual magnetism
• Colour: Silver

Final note

The ZEW-280 is a dependable electromagnetic lock for access control, combining strong holding force, flexible voltage, and durable construction in a sleek silver finish.
