Tarjeta gráfica GeForce RTX 5060 Ti 8 GB GDDR7

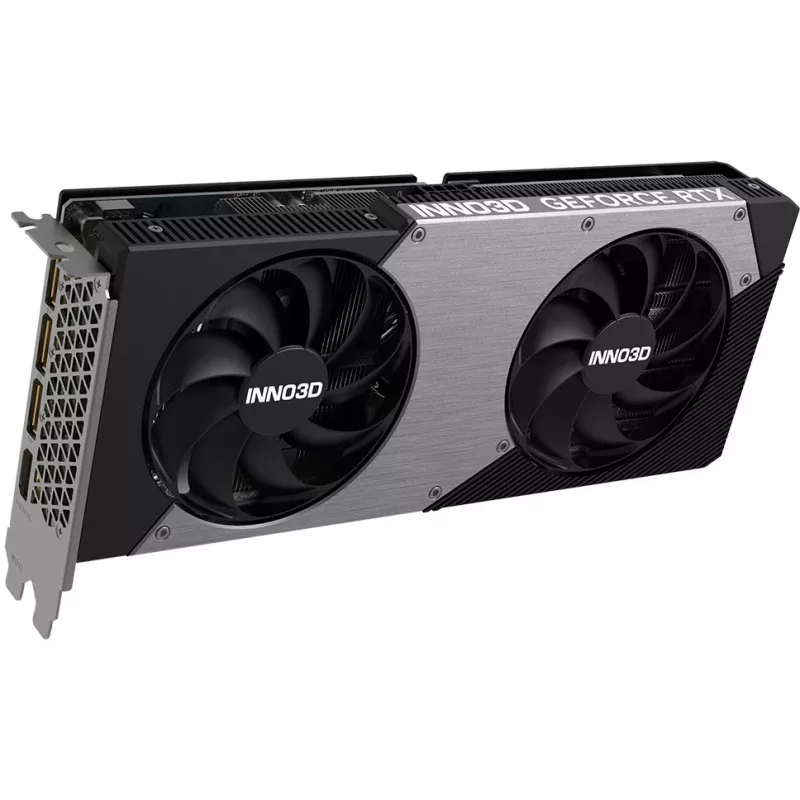

The INNO3D GeForce RTX 5060 Ti 8GB TWIN X2 OC is a compact dual-slot graphics card built on NVIDIA’s Blackwell architecture. It features a GeForce RTX 5060 Ti GPU with up to 2,602 MHz boost clock in its overclocked state, 4,608 CUDA cores, 8 GB of GDDR7 memory on a 128-bit bus, and support for DirectX 12 Ultimate and OpenGL 4.6. The card is designed for smaller MATX and ITX systems and supports high-resolution output up to 7680 x 4320 with an active dual-fan cooling solution.

Advantages

The TWIN X2 OC provides advanced ray tracing and AI-enhanced rendering capabilities enabled by NVIDIA Blackwell and DLSS 4 technologies, improving frame rates and image quality through neural rendering. Its compact dual-slot form factor and optimized cooling—88 mm scythe-style fans, copper GPU base, aluminum memory base, and tuned fin spacing—deliver efficient thermal management in small form factor builds. Additional features include multifunctional backplate for PCB protection and hot-air extraction, and compatibility with RTX features like NVIDIA Reflex and Studio accelerations for creative workloads.

Suitable for

• High-performance 1080p and 1440p gaming with ray tracing and DLSS
• Compact MATX and ITX small form factor gaming PCs
• Content creation tasks such as video editing and 3D rendering accelerated by RTX and Studio drivers
• Workloads benefiting from AI acceleration and low-latency responsiveness (NVIDIA Reflex, DLSS 4)

Key specifications

• Graphics processor: GeForce RTX 5060 Ti
• CUDA cores: 4,608
• Memory: 8 GB GDDR7
• Memory interface: 128-bit
• Boost clock (OC): up to 2,602 MHz
• Interface: PCI Express 5.0
• Max resolution: 7680 x 4320
• APIs: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: dual 88 mm fans, copper GPU base, aluminum memory base
• Form factor: dual-slot (suitable for MATX/ITX SFF)

How to use

Install the INNO3D GeForce RTX 5060 Ti into an available PCI Express x16 slot on a compatible motherboard and secure the card to the case using the expansion slot screws. Connect the required PCIe power connectors from your power supply if applicable, attach display cables to the card’s video outputs, and install the latest NVIDIA drivers and INNO3D utilities. Configure resolution, refresh rate, and RTX/DLSS settings in games or creative applications to match your performance and quality preferences.

Recommendations

For optimal cooling and longevity, ensure adequate case airflow in small form factor builds, keep GPU drivers updated, and use NVIDIA-recommended settings for DLSS and Reflex to balance performance and visual quality depending on the application.
