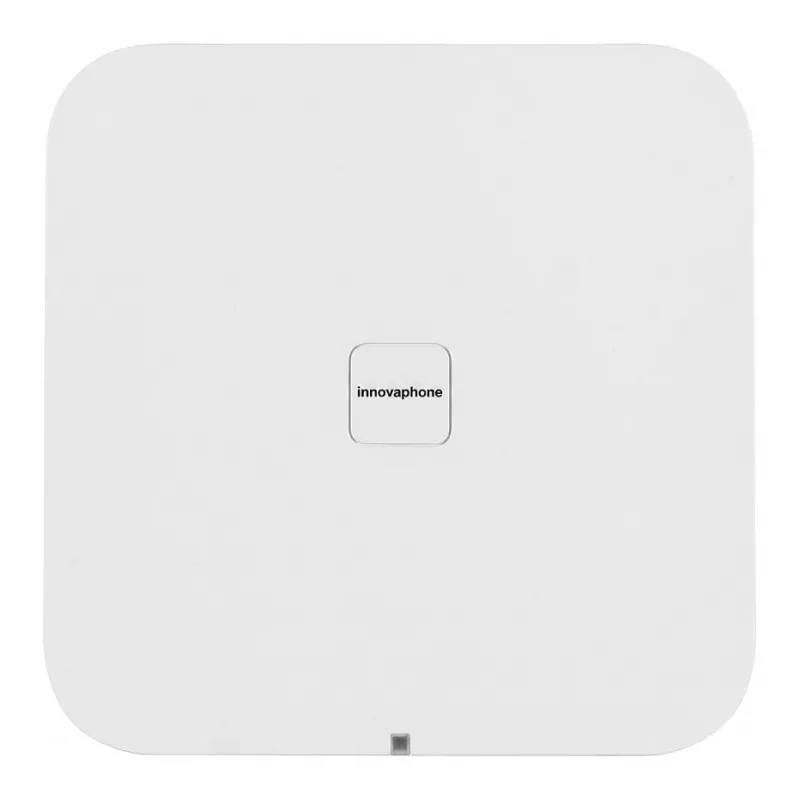

Innovaphone IP1203e pasarela y estación base IP-DECT con 8 canales y conexión de antena externa

The innovaphone IP1203e is a high-performance IP-DECT gateway and base station that enables DECT functionality for innovaphone PBX systems. It supports up to 8 simultaneous DECT channels and can be powered via Power over Ethernet (PoE) for easy installation. The device features an external antenna connector (SMA) for optimized coverage and supports up to 20 registered handsets. With support for GAP and CAT-iq 1.0 standards, it ensures compatibility with a wide range of DECT handsets.

Advantages

Seamless integration with innovaphone PBX systems, flexible deployment via PoE, and reliable DECT communication with encryption. The external antenna connector allows for enhanced signal coverage in challenging environments.

Suitable for

• Businesses using innovaphone telephony systems requiring DECT mobility
• Office environments needing wireless handset coverage
• Installations where PoE simplifies cabling

Key specifications

• Product Type: IP-DECT Gateway / Base Station
• DECT Channels: 8 simultaneous
• Connectivity: Wired Ethernet (10/100Base-TX), Wireless DECT
• Power Supply: Power over Ethernet (PoE) IEEE 802.3af
• DECT Standard: GAP, CAT-iq 1.0
• Voice Codecs: G.711, G.722, G.729
• Antenna Type: External (SMA connector)
• Max Registered Handsets: Up to 20
• Frequency Band: DECT (1880-1900 MHz)
• Management: Web-based configuration
• Security: DECT encryption
• Mounting: Wall-mountable
• Operating Temperature: 0°C to +45°C
• LED Indicators: Power, DECT, LAN

Recommendations

For optimal performance, use with innovaphone PBX and compatible DECT handsets. Ensure PoE switch or injector is IEEE 802.3af compliant.
