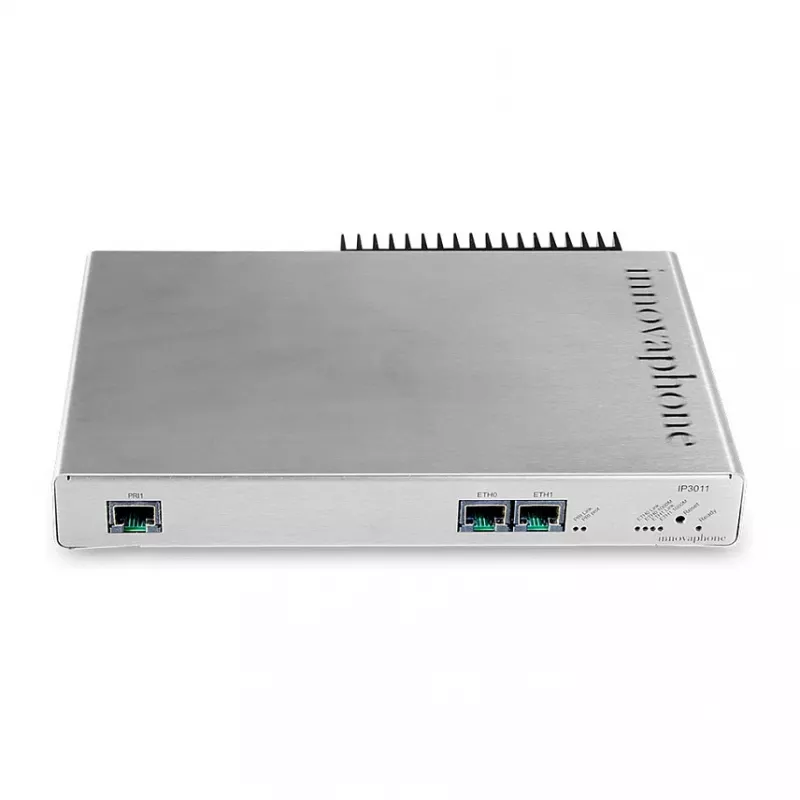

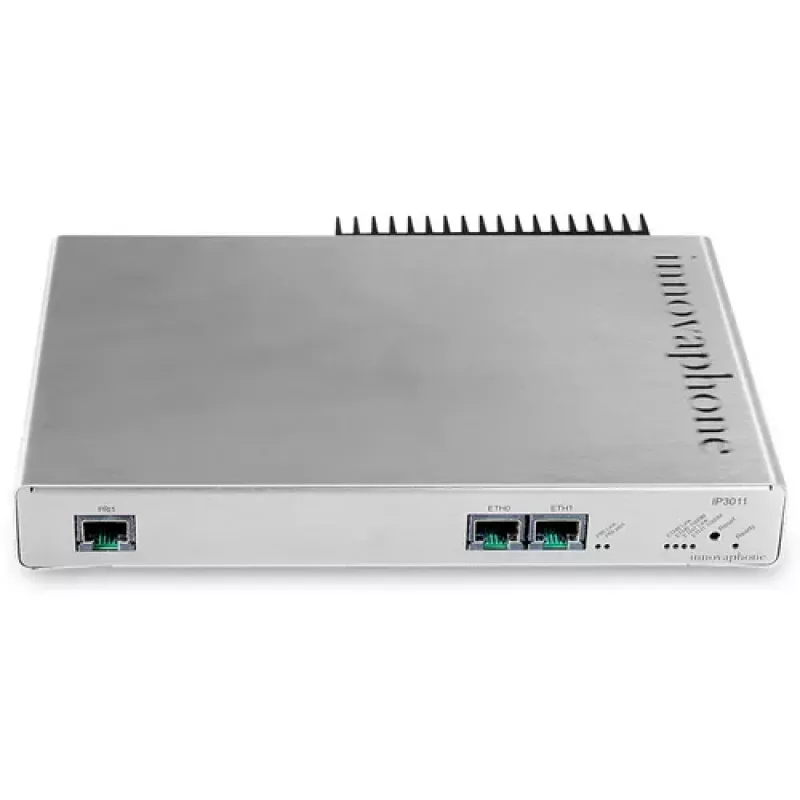

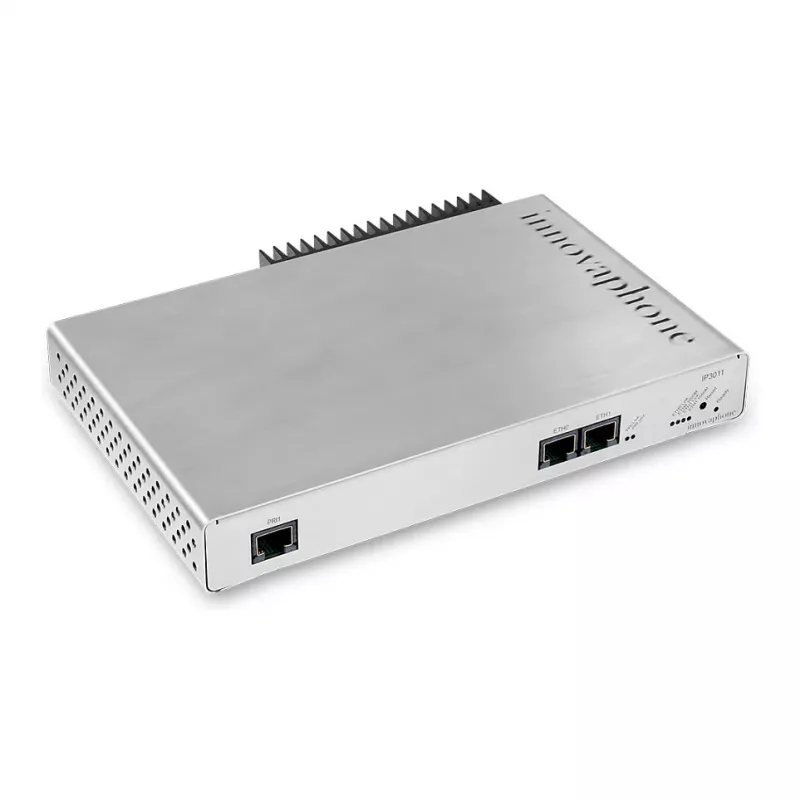

Innovaphone IP3011 pasarela multimedia modular VoIP

The innovaphone IP3011 Mediagateway is a modular VoIP gateway designed for small to medium enterprises and branch offices. It offers flexible connectivity with two slots for interface cards (PRI, BRI, FXS, FXO) and supports up to 60 ISDN B-channels. With integrated DSP resources for echo cancellation and transcoding, it ensures high-quality voice communication. The fanless design guarantees silent operation, making it ideal for office environments.

Advantages

Modular design allows customization with various interface cards. Supports SIP and H.323 protocols for broad interoperability. Advanced security features include SRTP, TLS, VPN client, and firewall. Web-based management, CLI, and SNMP simplify administration. Optional PBX functionality with license.

Suitable for

• Small to medium enterprises
• Branch offices
• Unified communications deployments

Key specifications

• 2x Gigabit Ethernet ports (10/100/1000BASE-T)
• 2x slots for innovaphone interface cards
• Up to 60 ISDN B-channels (with 2x PRI cards)
• Voice codecs: G.711, G.722, G.723.1, G.729a, Opus
• Management: Web GUI, CLI, SNMP
• Security: SRTP, TLS, VPN client, firewall
• Mounting: 19-inch rackmount (1U)
• Power: External 12V DC, 3A
• Fanless design

Recommendations

Ideal for businesses seeking a reliable and scalable VoIP gateway with modular expansion options.
