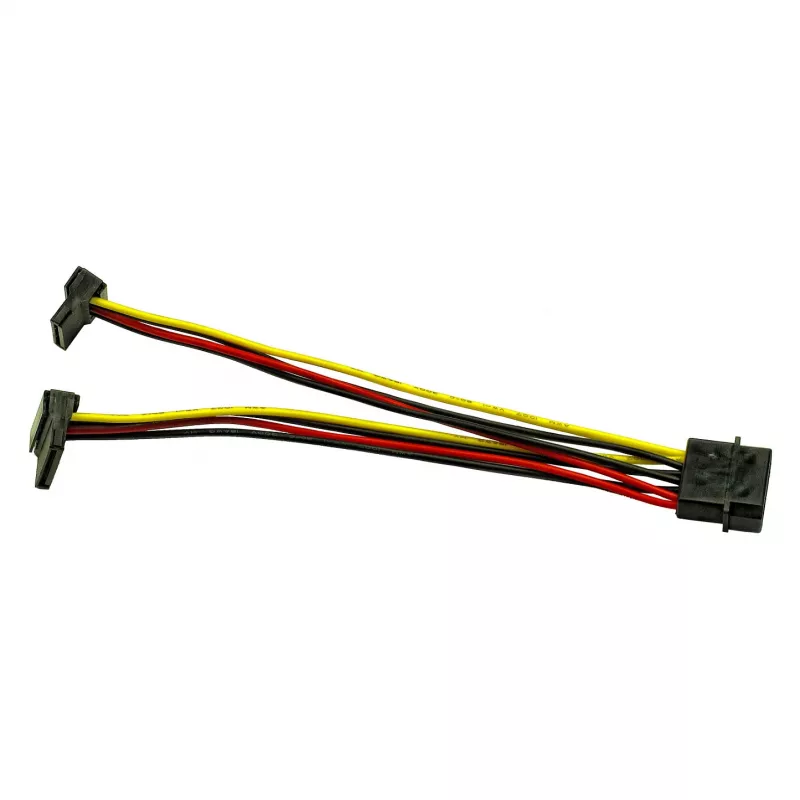

Inter-Tech cable adaptador de alimentación Molex a 2x SATA 90°, 0,15 m

When a power supply runs short on SATA connectors but still has a free Molex plug, this adapter steps in. It turns one 4-pin Molex output into two right-angled SATA power ports, so a pair of drives can be powered without swapping the PSU. The 90° SATA ends sit flat against the drive, which helps in tight cases where straight connectors would press against the side panel.

Highlights

• One Molex male to two SATA female, 15 cm total length
• 90° SATA connectors for low-profile installations
• Supports 5 V and 12 V rails for standard SATA devices
• Y-splitter design, power only, no data lines
• PVC jacket with copper conductors, RoHS compliant

In daily use

The short 15 cm run keeps cable clutter down while still reaching drives mounted near the PSU. Both SATA ends are angled, so they hug the back of an SSD or HDD and leave room for side panels or drive cages. Since it is a passive adapter, no drivers or configuration are needed—just plug it in and the drives receive the same voltages as any native SATA power lead.

Full specifications

• Connector 1: 1x Molex (4-pin) male
• Connector 2: 2x SATA power (15-pin) female, 90° angled
• Cable length: 0.15 m
• Conductor material: copper
• Jacket material: PVC
• Colour: multicolour (black, yellow, red)
• Output: 5 V / 12 V
• RoHS compliant: yes

Final note

A practical way to add SATA power where only Molex is available, with angled connectors that save space.
