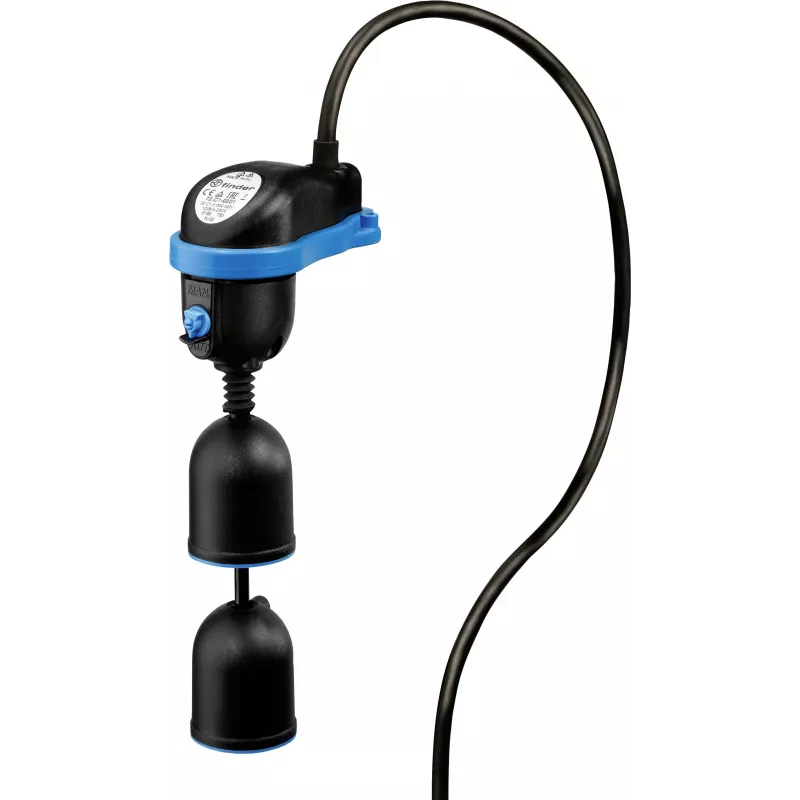

Interruptor de flotador Finder 72C100000201, 1 conmutador, 10 A, cable de 2 m

With a 10 A changeover contact and a 2 m PVC cable, the Finder 72C100000201 float switch handles clean water, dirty water, sewage, oils, and diesel. Its polypropylene housing and IP68 rating make it suitable for submerged use in tanks and sumps.

Overview

The Finder 72C100000201 is a float switch with one changeover (SPDT) contact, rated for 10 A at 250 V AC. The 2 m PVC cable allows flexible installation, and the suspended mounting type suits various liquid level control applications.

What stands out

• One changeover contact for emptying or filling functions
• 10 A switching capacity for pumps and valves
• 2 m PVC cable for easy connection
• Polypropylene housing withstands harsh liquids
• IP68 protection for continuous immersion
• Wide liquid compatibility: clean water, dirty water, sewage, oils, diesel

Technical details

• Contact configuration: 1 changeover (SPDT)
• Max switching current: 10 A
• Max switching voltage: 250 V AC
• Cable length: 2 m
• Cable material: PVC
• Housing material: Polypropylene (PP)
• Ingress protection: IP68
• Operating temperature: 0 °C to +50 °C
• Max operating pressure: 2 bar
• Switching angle: ±45°
• Specific gravity of liquid: 0.95 - 1.10 g/cm³
• Frequency: 50/60 Hz
• Mounting type: Suspended
• Functionality: Emptying (NO) or Filling (NC)

Our verdict

A robust float switch for demanding liquid level control, with a 10 A changeover contact and IP68 protection.
