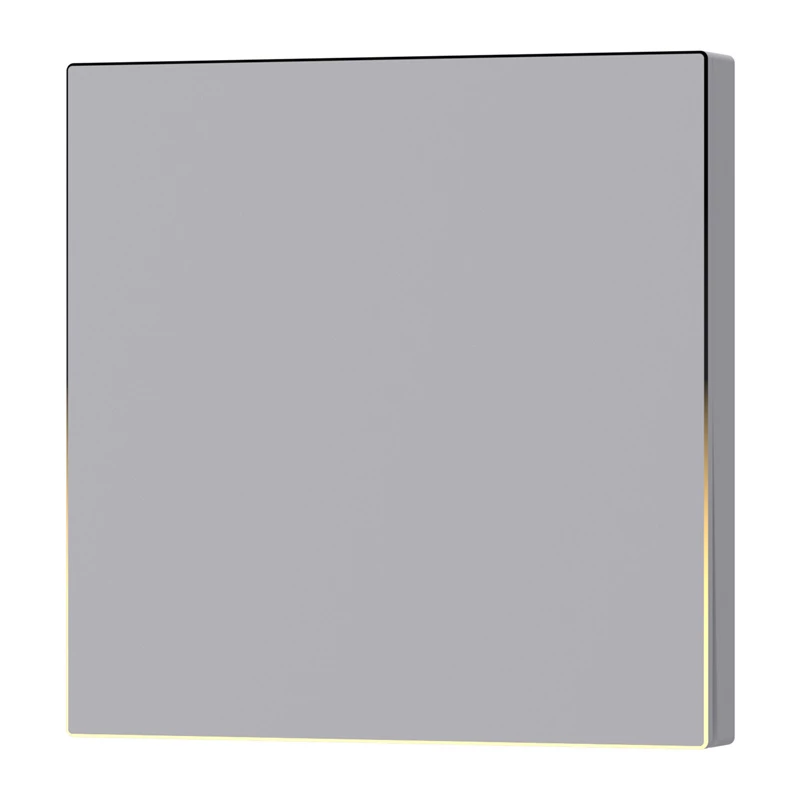

Interruptor de luz táctil Avatto TS60-EU-W1 ZigBee individual blanco — interruptor táctil de pared, control ZigBee

Avatto ZTS60 Touch ZigBee Light Switch (single-gang) is a smart wall switch designed for convenient control of lighting via Zigbee 3.0. The device pairs with a Zigbee gateway and the AVATTO app to switch lights on and off, set schedules and include the switch in home automations. The single-gang version supports common household installations and fits standard 80 × 80 mm mounting openings.

Advantages

The switch is built from flame-retardant PC for higher temperature resistance and long service life. It supports a maximum load of 800 W per circuit and a rated current of 10 A, providing reliable operation in typical residential setups. Zigbee 3.0 compatibility ensures stable communication with smart home hubs, while touch control and app integration make everyday operation simple and accessible.

Key specifications

• Manufacturer: Avatto
• Model: ZTS60
• Type: Intelligent light switch (touch)
• Version: 1-gang
• Power supply: AC 100–240 V, 50/60 Hz
• Maximum load: 800 W per circuit (resistive load)
• Maximum current: 10 A
• Communication protocol: Zigbee 3.0
• Standby power consumption: 0.1 mA
• Housing material: Flame-retardant PC
• Dimensions: 80 × 80 mm
• Wiring: L (phase), N (neutral), L1 (load 1)

How to use

Connect the switch according to the wiring diagram: L — phase, N — neutral, L1 — load. After powering the device, press and hold the button for 5 seconds until the backlight flashes to enter pairing mode. Add the device in the AVATTO app and connect it through your Zigbee gateway. Use the app to control the switch in real time, create schedules and include the switch in automations; the device requires a Zigbee gateway and works with a 2.4 GHz Wi‑Fi network for app connectivity.

Recommendations

Install and wire the switch according to local electrical codes. Verify that the connected load does not exceed 800 W per circuit and 10 A. For stable operation, use a compatible Zigbee 3.0 gateway and keep the gateway firmware and AVATTO app updated.
