Interruptor de pared inteligente Sonoff NSPanel WiFi control táctil NSPanel-EUW

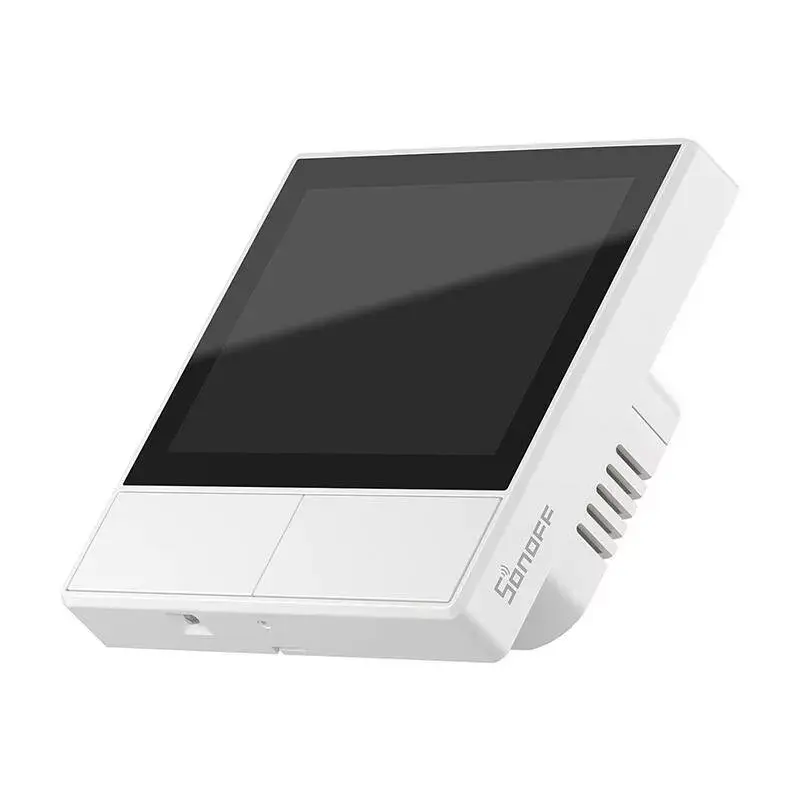

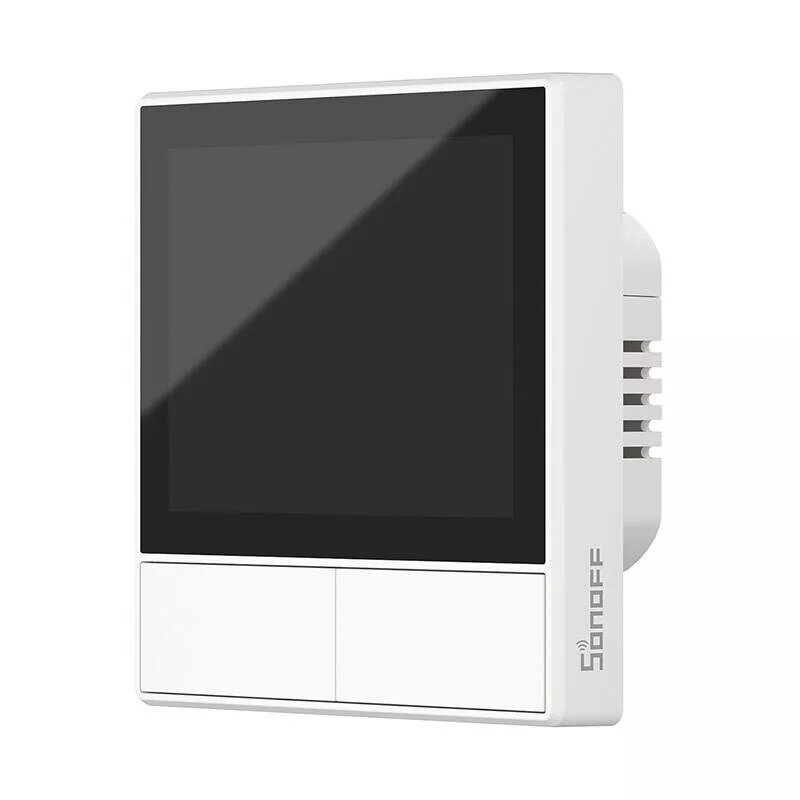

Intelligent Sonoff NSPanel Wall Switch (White) is a wall-mounted smart switch with a 3.5‑inch touchscreen and Wi‑Fi connectivity (model NSPanel-EUW). It provides centralized control of connected devices and scenes from a single panel, supports remote operation via Android and iOS apps, and integrates voice control. Compact dimensions and tempered glass finish combine functionality with a neutral white design suitable for most interiors.

Advantages

The Sonoff NSPanel offers multiple control methods — touch, voice, and mobile app — enabling flexible management of home devices. Its compatibility with Android and iOS allows scheduling, quick toggles via widgets, and shared access for household members. Built with PC V0, CRS, and tempered glass, the panel is designed for durability while preserving a slim profile (86 x 86 x 41.7 mm) and a clear 480 x 320 px display.

Suitable for

• Centralized control of lights and smart devices in apartments and houses
• Home automation scenes activation and monitoring
• Users who need touch, voice, or app-based control of electrical devices
• Rooms where a compact, white wall-mounted interface is preferred

Key specifications

• Brand: Sonoff
• Model: NSPanel (NSPanel-EUW)
• Color: White
• Dimensions: 86 x 86 x 41.7 mm
• Materials: PC V0, CRS, tempered glass

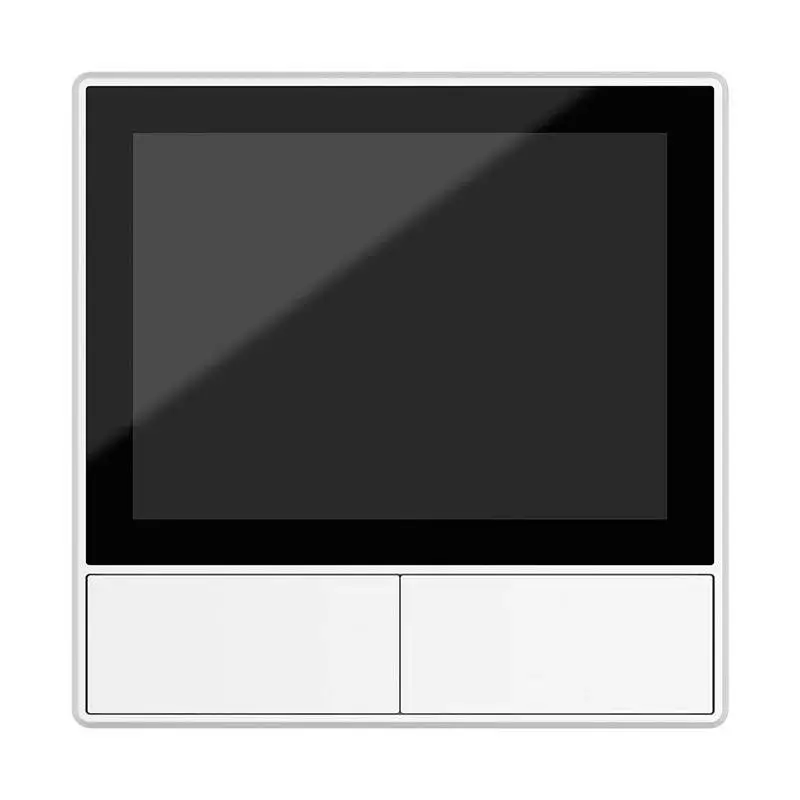

• Screen: 3.5 inches, 480 x 320 px
• Bluetooth: 4.2
• Wi‑Fi: IEEE 802.11 b/g/n 2.4 GHz

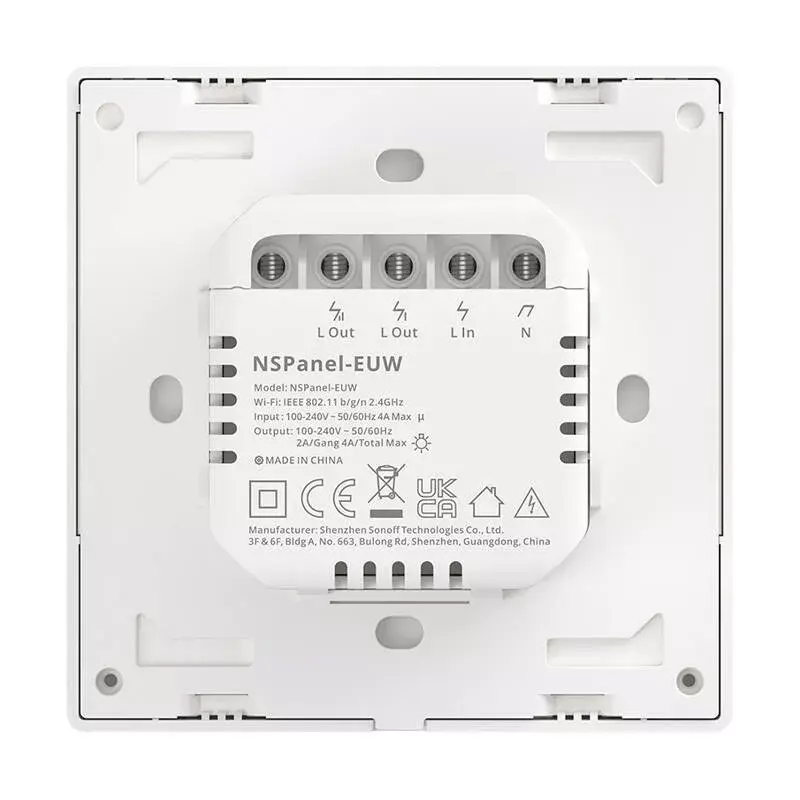

• Input: 100–240 V ~ 50/60 Hz, 4 A max

How to use

Mount the NSPanel in a standard wall box and connect it to mains power following the included manual and local electrical regulations. Use the touchscreen to control connected devices directly, or install the Sonoff-compatible app on an Android or iOS device to add the panel, create schedules, and share control. Voice assistants compatible with the panel can be linked through the app for hands-free operation.

Recommendations

Install the unit in a dry, indoor location away from direct heat sources. For reliable Wi‑Fi performance, ensure a 2.4 GHz network with adequate signal strength at the panel location. Follow the included instruction manual for safe wiring and observe the 4 A maximum load per circuit.
