Interruptor inteligente Shelly PM Mini Gen3 inalámbrico 110-240V 1,2W

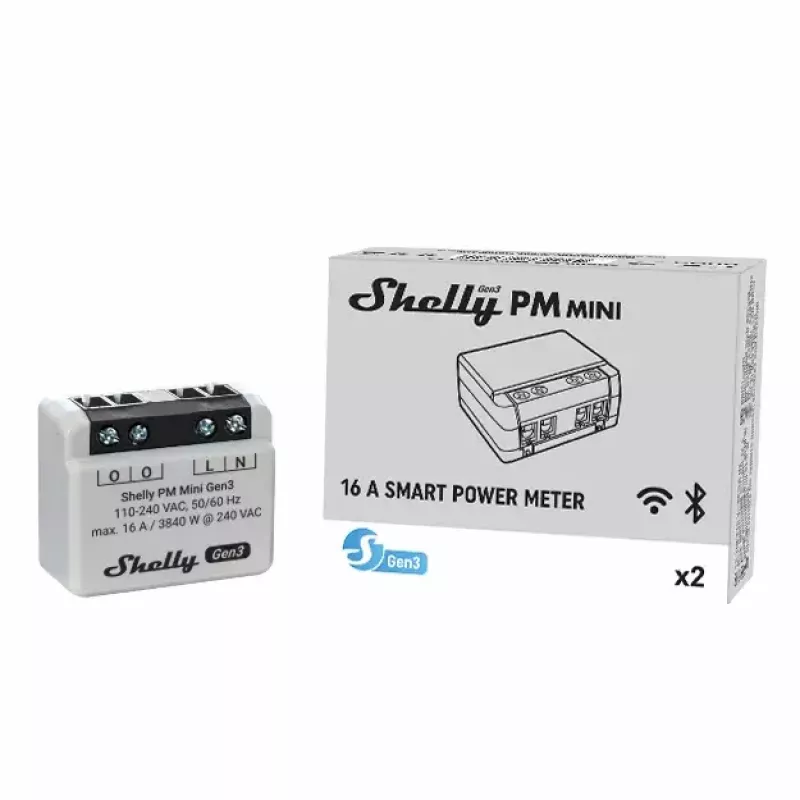

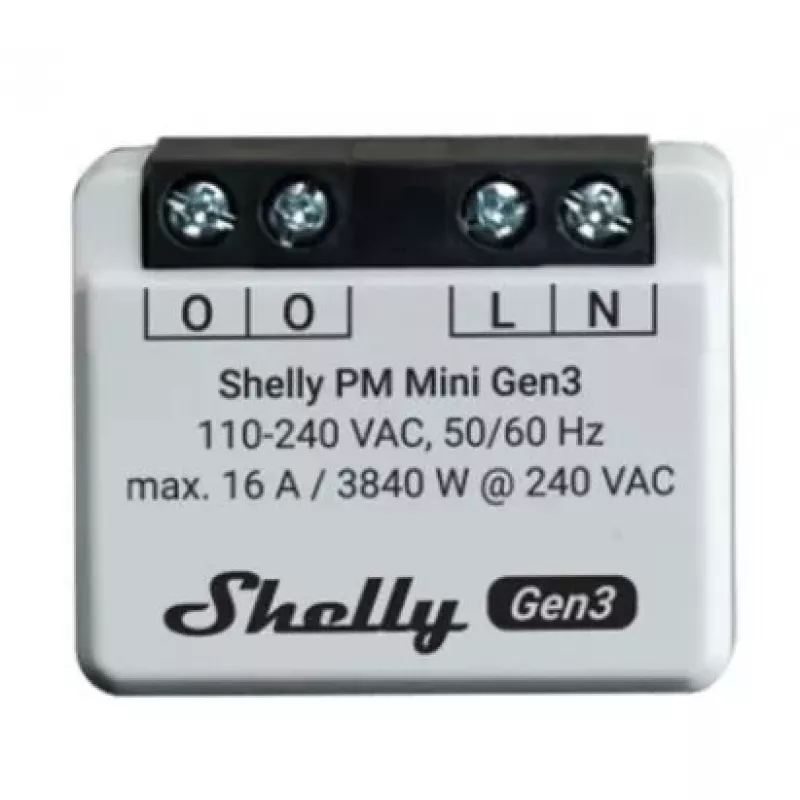

The Shelly PM Mini Gen3 is a compact Wi‑Fi smart power meter and single‑channel switch for AC 110–240 V installations. Designed to fit behind wall switches or sockets, it provides precise real‑time power monitoring while allowing remote on/off control of a single circuit. The device is part of Shelly’s Gen3 series, uses an 8 MB Shelly chip for improved responsiveness, and requires no hub for Wi‑Fi operation; Bluetooth inclusion is also supported.

Advantages

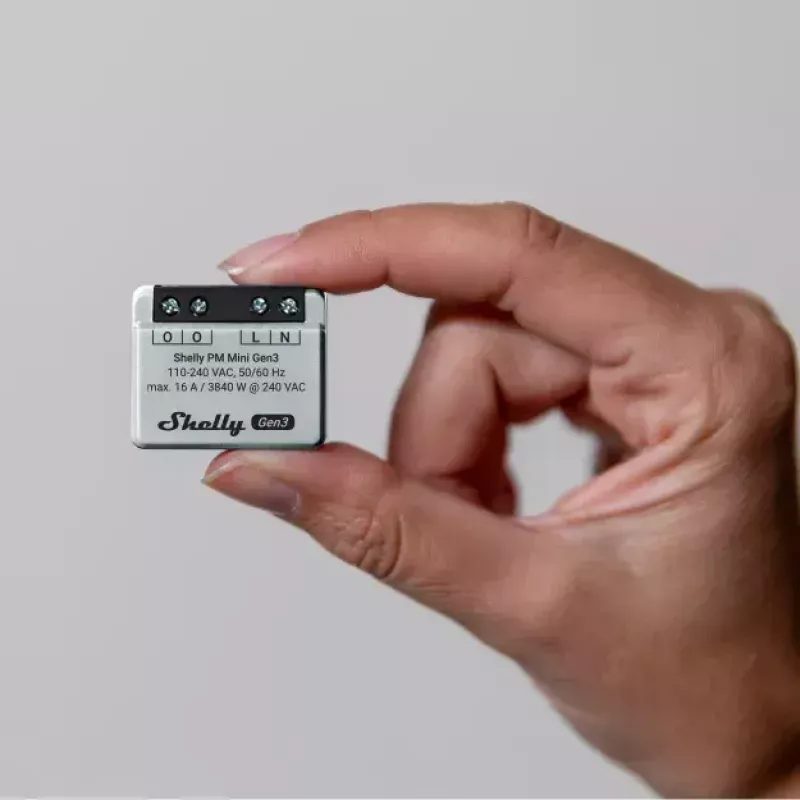

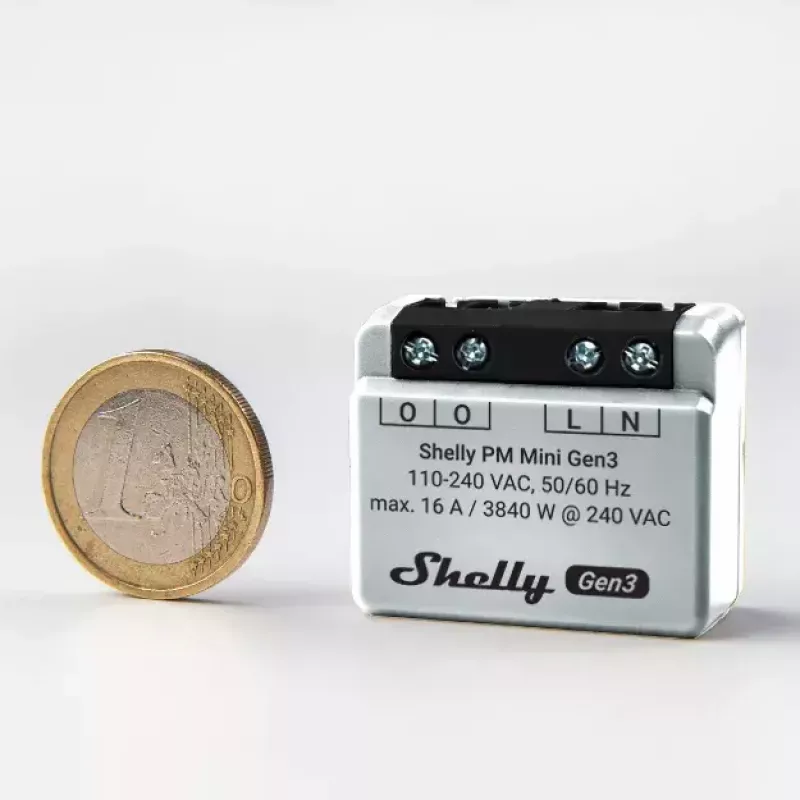

The unit combines a very small footprint (34 × 16 × 29 mm) with accurate power metering and reliable switching up to the device’s rated current. Its 8 MB memory and updated firmware platform improve speed and allow future upgrades, including planned Matter support. Built‑in scheduling, URL actions and mjS scripting enable automation and integration with other smart devices. The device reports consumption trends to help detect abnormal energy increases and supports Shelly Smart Control and common voice assistants for unified control.

Suitable for

• Monitoring and switching individual lights and small household appliances
• Retrofit installations behind switches and sockets where space is limited
• Energy monitoring to detect abnormal consumption or optimize costs
• Integrating single‑channel devices into a Shelly smart ecosystem

Key specifications

• Brand: Shelly
• Model: PM Mini Gen3 (MPN: Shelly_Plus_PM_Mini_G3)
• AC input voltage: 110–240 V
• Power consumption (device): 1.2 W
• Maximum switching voltage: 240 V
• Channels: 1
• Dimensions: 34 × 16 × 29 mm
• Memory: 8 MB
• Connectivity: Wi‑Fi and Bluetooth
• Compatibility: Shelly Smart Control app, Alexa, Google Home, Android, iOS

How to use

Install the Shelly PM Mini Gen3 inside a flush box behind the switch or socket according to local electrical codes. Connect the live and neutral wires to the device’s input and the output to the load. Power up the device and connect it to your Wi‑Fi network through the Shelly Smart Control app, or perform quick inclusion via Bluetooth. Once added, configure schedules, URL actions, or custom mjS scripts, and view live and historical power consumption in the app.

Recommendations

Ensure installation is performed by a qualified electrician. Verify the connected load does not exceed the device’s rated parameters. Use the device’s power‑monitoring data to set automation rules and identify appliances with abnormal energy usage; enable firmware updates when available to keep the device secure and compatible with new features.
