Interruptor principal Eaton P3-100/EA/SVB/N 100A 3P+N montaje empotrado 019890

Rated at 100 A with a 690 V AC operational voltage, the Eaton P3-100/EA/SVB/N main switch handles demanding switching tasks with confidence. Its 3-pole + N configuration and IP65 front protection make it a rugged choice for industrial control.

Overview

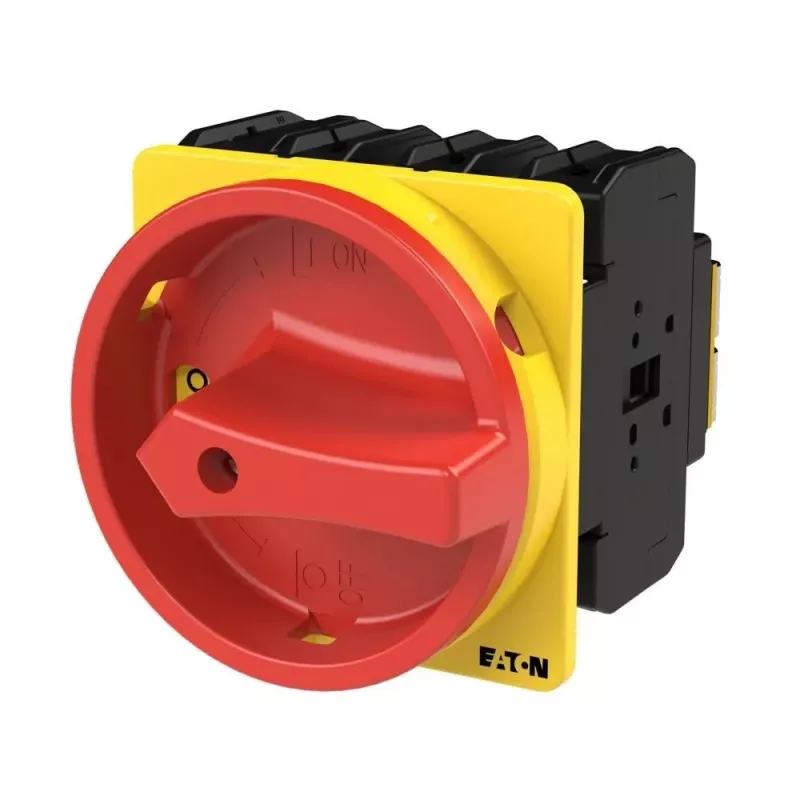

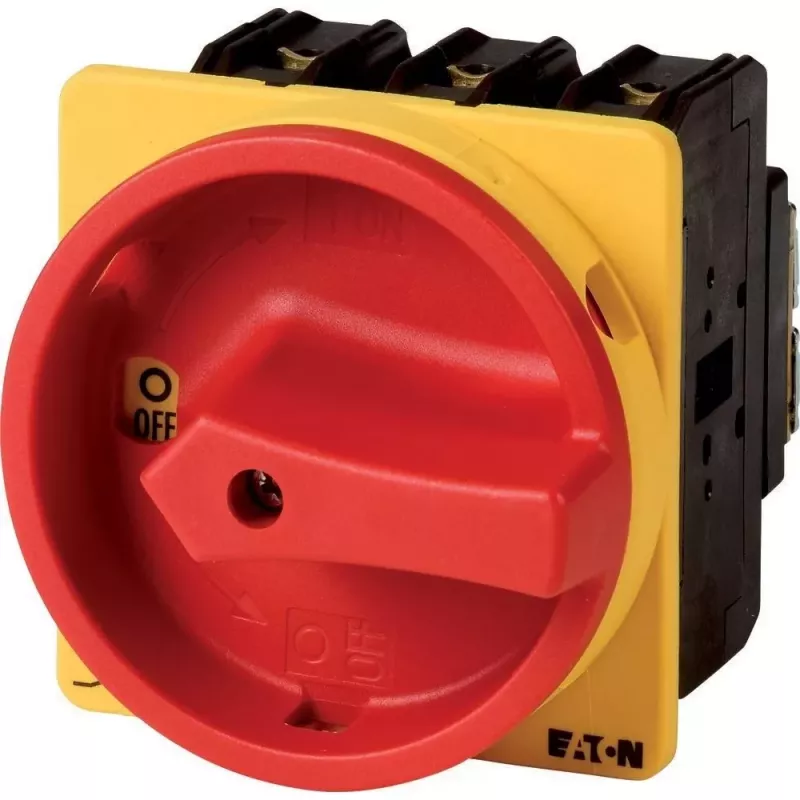

The Eaton P3-100/EA/SVB/N is a flush-mounting main switch with emergency switching-off function. It features a red rotary handle with a yellow locking ring for clear status indication and secure operation. The switch is built to IEC/EN 60947 standards, ensuring reliable performance in a wide range of applications.

What stands out

• 100 A rated operational current for heavy-duty circuits
• 3-pole + N switching for complete isolation
• IP65 front protection against dust and water jets
• Emergency switching-off capability for safety
• Wide operating temperature range from -25 to +50 °C

Technical details

• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated power (AC-23A, 400 V): 37 kW
• Switching angle: 90°

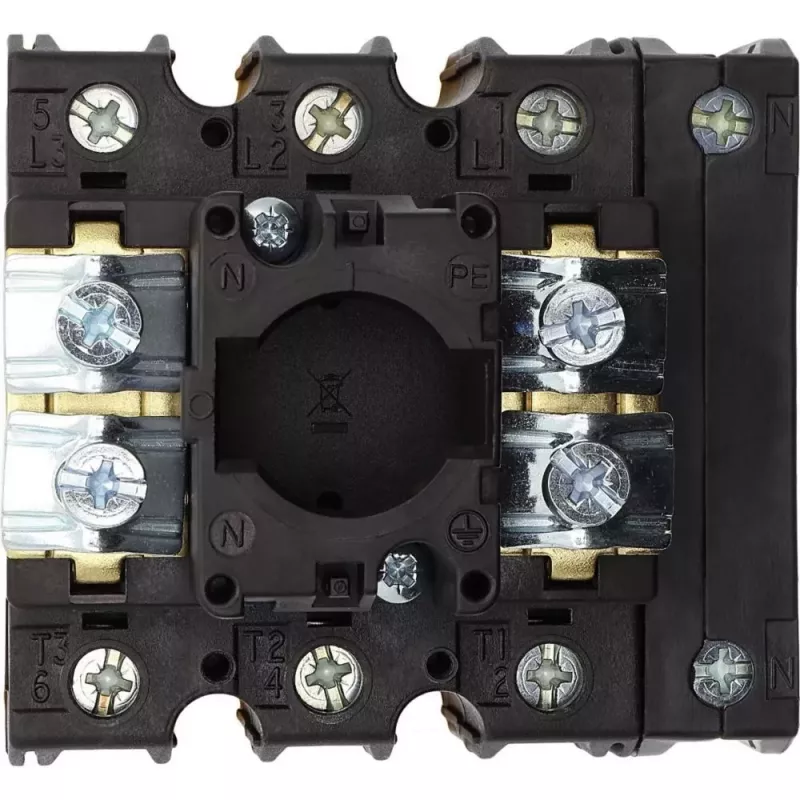

• Terminal type: screw terminals
• Short-circuit making/breaking capacity: 3 kA at 690 V
• Mounting: flush mounting
• Standards: IEC/EN 60947

Our verdict

A robust and reliable main switch for industrial power distribution, offering high current capacity, safety features, and durable construction.
