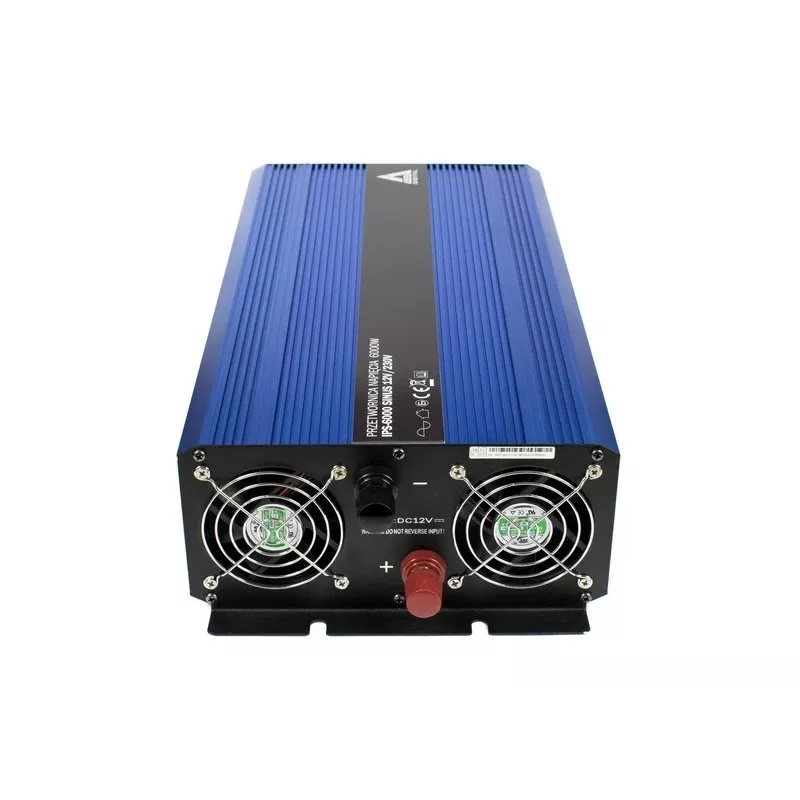

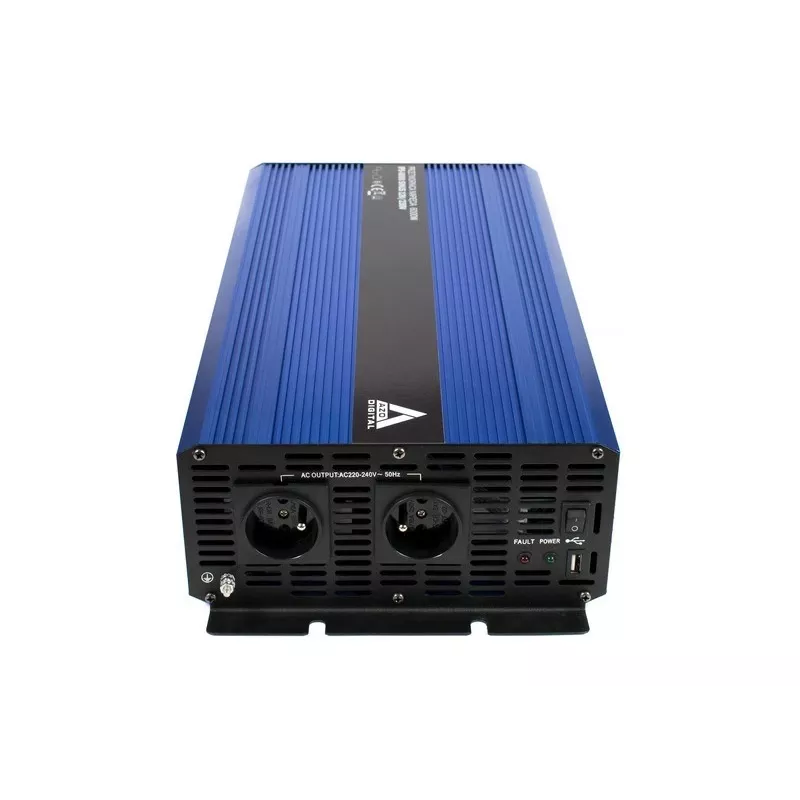

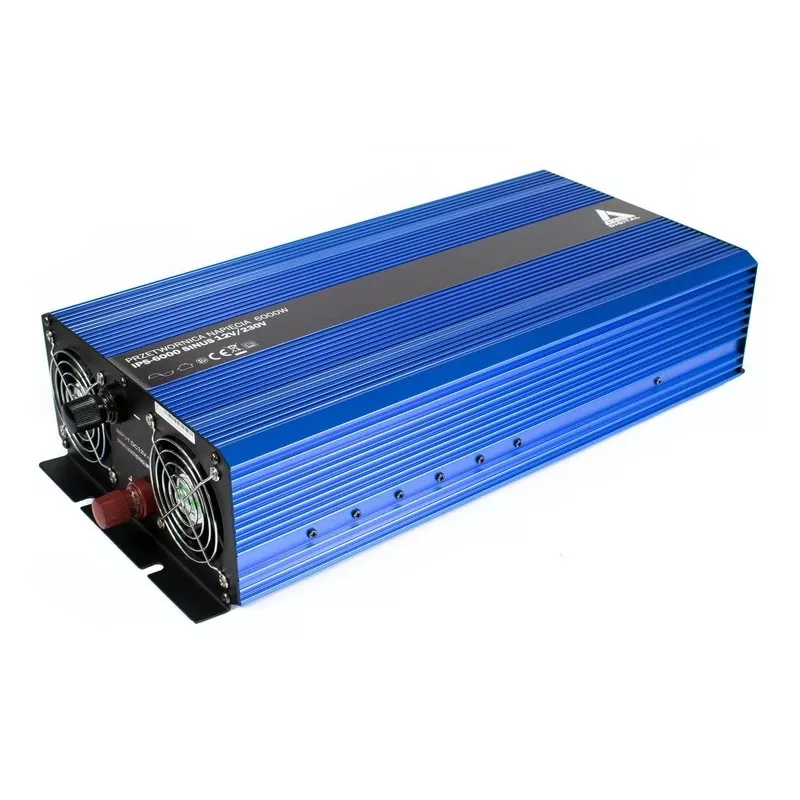

Inversor de onda senoidal pura AZO Digital 12 VDC / 230 VAC SINUS IPS-6000S 6000W

For off-grid cabins, service vehicles, or marine installations, the AZO Digital SINUS IPS-6000S converts 12V DC battery power into clean 230V AC, delivering a pure sine wave output that safely runs sensitive electronics like medical devices, induction motors, and audio equipment. With a continuous rating of 3000W and peak surge capacity of 6000W, it handles demanding loads while active fan cooling and comprehensive protections keep operation stable.

Key specifications

• Input: 12V DC (10.5–15.5V range)
• Output: 230V AC, 50Hz, pure sine wave
• Continuous power: 3000W
• Peak power: 6000W
• Efficiency: >85%
• THD: <3%
• Two Schuko (Type F) output sockets
• Protections: overload, short circuit, over-temperature, under-voltage, over-voltage, reverse polarity
• Low voltage alarm at 10.5V, shutdown at 10.0V
• Over-voltage shutdown at 15.5V
• No-load current consumption: <1.2A
• Operating temperature: -10°C to +40°C
• Aluminum alloy housing
• Active fan cooling

Why choose it

The pure sine wave output is identical to grid power, preventing buzzing, overheating, or malfunction in sensitive devices. The robust aluminum housing and full protection suite make it reliable for continuous use in harsh environments, while the high surge capacity starts motors and compressors without tripping.

Ideal use cases

• Off-grid solar systems and cabins
• Service vans, trucks, and emergency vehicles
• Marine and RV power systems
• Backup power for home appliances during outages
• Portable power for construction sites

Good to know

Proper battery sizing and cable gauge are essential for full output. The converter includes low and high voltage cut-offs to protect both the inverter and your battery bank. Always mount in a dry, ventilated area and keep the fan intake clear.
