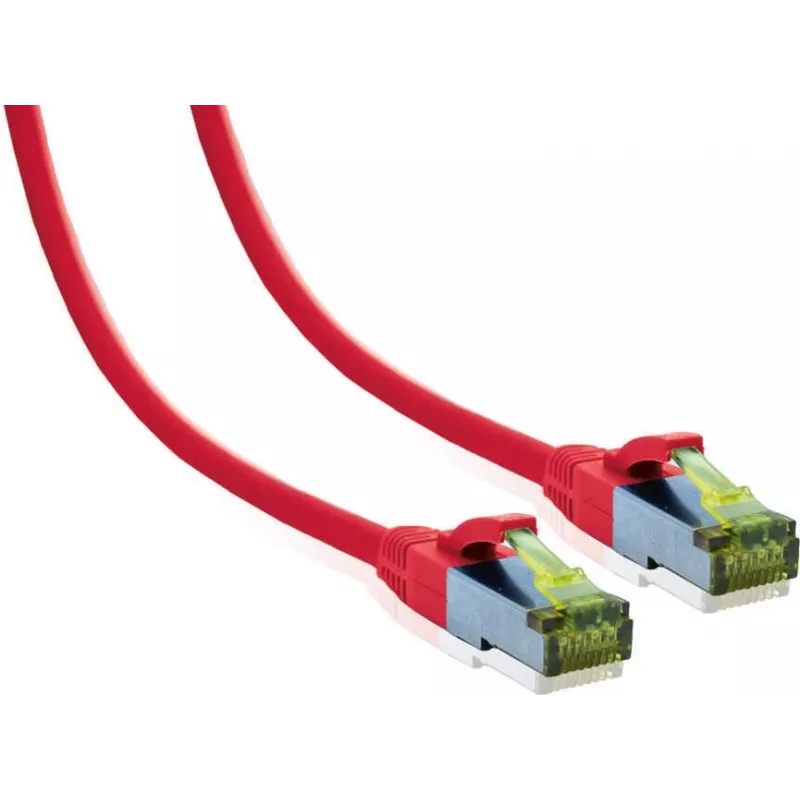

IT-BUDGET Cable de parcheo Premium Cat.6A con cable bruto Cat.7 - 600 MHz - LSZH - PoE+ - 10Gbit - rojo - 1 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding data center and enterprise environments. Combining Cat.6A component rating with Cat.7 raw cable construction, it delivers exceptional 600 MHz bandwidth and supports 10 Gigabit Ethernet (10GBase-T) over its full 1-meter length. The cable features 100% copper stranded conductors (AWG 26/7) and S/FTP shielding (pairs in metal foil with overall braiding) for maximum protection against electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the snagless molded boot protects the RJ45 connectors with gold-plated contacts (50µm). PoE+ (IEEE 802.3at) compliant, it can power devices such as IP cameras and wireless access points. Backward compatible with Cat.6, Cat.5e, and Cat.5 networks.

Advantages

Reliable 10 Gbps data transmission with high-frequency stability. Robust S/FTP shielding minimizes crosstalk and external noise. LSZH jacket reduces toxic smoke in case of fire. Snagless design prevents latch breakage during installation. Gold-plated contacts ensure corrosion-resistant connectivity.

Suitable for

• Data centers and server rooms
• Office networks requiring high bandwidth
• Home networks with 10GBase-T equipment
• PoE+ powered devices (IP cameras, access points)
• Industrial environments where halogen-free cabling is mandated

Key specifications

• Cable Type: Patch Cable
• Cable Category (Component Rated): Cat.6A
• Raw Cable Category: Cat.7
• Frequency Bandwidth: 600 MHz
• Data Transfer Rate: 10 Gbps
• Conductor Material: 100% Copper (Vollkupfer)
• Conductor Construction: Stranded
• Conductor Gauge: AWG 26/7
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Halogen-Free)
• PoE Support: PoE+ (IEEE 802.3at)
• Connector Type: RJ45 (8P8C)
• Connector Plating: Gold-plated (50µm)
• Boot Type: Snagless
• Cable Length: 1 meter
• Color: Red
• Outer Diameter: Approx. 6.0 - 6.5 mm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, pair this cable with Cat.6A or Cat.7 compatible switches and patch panels. Ensure proper cable management to avoid sharp bends exceeding the bend radius. Ideal for short-distance high-speed connections within racks or between adjacent devices.
