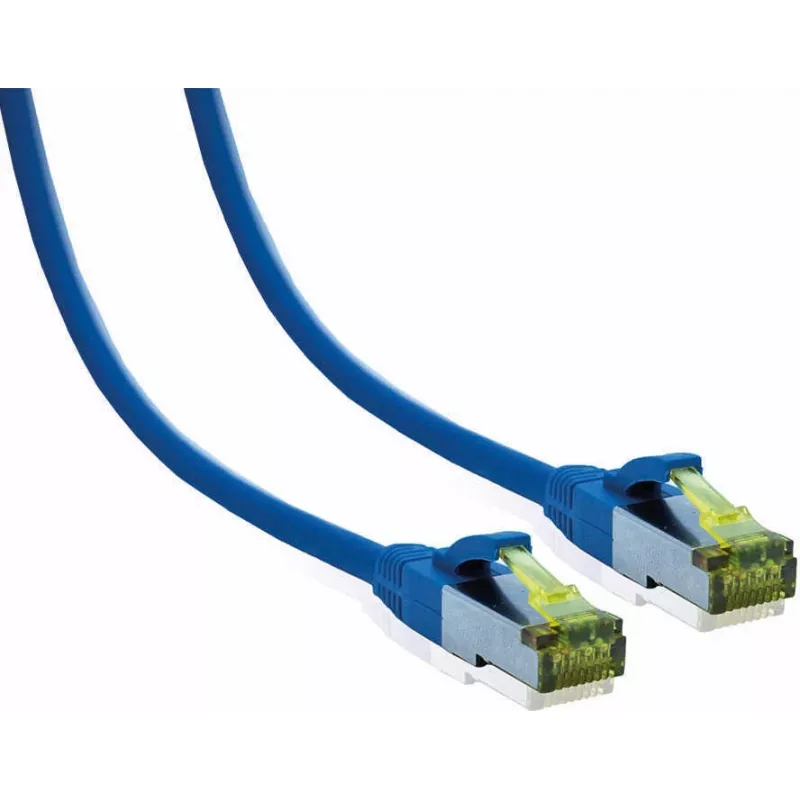

IT-BUDGET Cable de red patch Premium Cat.6A con cable Cat.7 - 600 MHz - LSZH - PoE+ - 10 Gigabit - azul - 5 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding professional environments. It combines Cat.6A performance with Cat.7 raw cable construction, delivering exceptional signal integrity and reliability. With 600 MHz bandwidth and 10 Gigabit Ethernet support, this cable is ideal for data centers, server rooms, and high-speed LAN applications. The S/FTP shielding provides excellent protection against electromagnetic interference, while the LSZH jacket ensures safety in enclosed spaces.

Advantages

This patch cable offers superior data transmission rates and reliability. The 100% copper conductors and gold-plated contacts ensure optimal conductivity and minimal signal loss. The S/FTP shielding (pairs in metal foil with overall braid) effectively reduces crosstalk and external interference. The LSZH jacket is halogen-free, making it safe for use in areas with strict fire safety requirements. PoE+ support allows power and data transmission over a single cable, simplifying installations.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructures
• High-speed LAN connections
• PoE+ devices such as IP cameras, access points, and VoIP phones
• 10GBase-T networks

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Augmented Category 6)
• Raw Cable Standard: Cat.7
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Bandwidth: 600 MHz
• Conductor Material: 100% Copper
• Conductor Construction: Stranded Wire
• AWG: 26 AWG
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Length: 5 meters
• Color: Blue
• Wiring Standard: TIA/EIA 568B
• Flammability Rating: IEC 60332-1
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with compatible 10 Gigabit network equipment. Ensure proper cable management to maintain signal integrity. This cable is an excellent choice for upgrading existing networks to higher speeds without compromising on safety or reliability.
