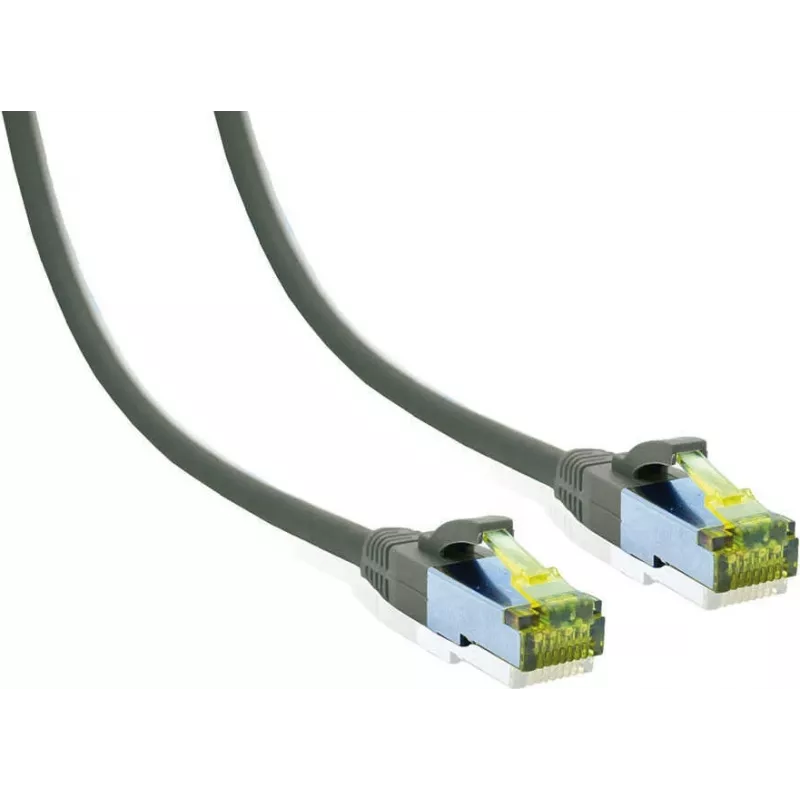

IT-BUDGET Cable de red Premium Cat.6A con cable bruto Cat.7 600 MHz LSZH PoE+ 10 Gbit gris 20 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding professional environments. It combines Cat.6A performance with Cat.7 raw cable construction, offering exceptional bandwidth and reliability. The cable is fully made of 100% copper and features S/FTP shielding for maximum protection against interference. With a frequency bandwidth of 600 MHz, it supports 10 Gigabit Ethernet (10GBASE-T) and is PoE+ compatible, making it ideal for power-hungry devices. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, emitting low smoke and no toxic halogen gases. The snagless boot protects the RJ45 connector latch during installation. This grey 20-meter cable is perfect for structured cabling in data centers, offices, and industrial settings.

Advantages

100% copper conductors ensure optimal signal transmission and durability. S/FTP shielding (pairs in metal foil plus overall braid) provides excellent electromagnetic interference (EMI) protection. LSZH jacket meets strict fire safety standards. Snagless boot prevents connector damage. Supports PoE+ for powering devices like IP cameras and wireless access points.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Industrial Ethernet applications
• High-speed data transfer up to 10 Gbps
• Power over Ethernet Plus (PoE+) devices

Key specifications

• Cable Type: Patch Cable (Ethernet)
• Cable Category: Cat.6A (Class EA) with Cat.7 raw cable
• Frequency Bandwidth: 600 MHz
• Data Transfer Rate: 10 Gbps
• Shielding: S/FTP (PiMF)
• Conductor Material: 100% Copper (Vollkupfer)
• Conductor Type: Stranded (AWG 26/7)
• Jacket Material: LSZH (Halogen-Free)
• Connector: RJ45 with gold-plated contacts (50µ)
• Boot Type: Snagless
• Wiring Standard: TIA/EIA 568B
• Colour: Grey
• Length: 20 m
• Outer Diameter: Approx. 6.5 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to maintain bend radius and avoid signal degradation. Ideal for permanent installations where high reliability and safety are required.
