IT-BUDGET Cable de red Premium Full Copper Cat.6A con cable bruto Cat.7 600 MHz LSZH PoE+ 10Gbit rojo 1,5 m

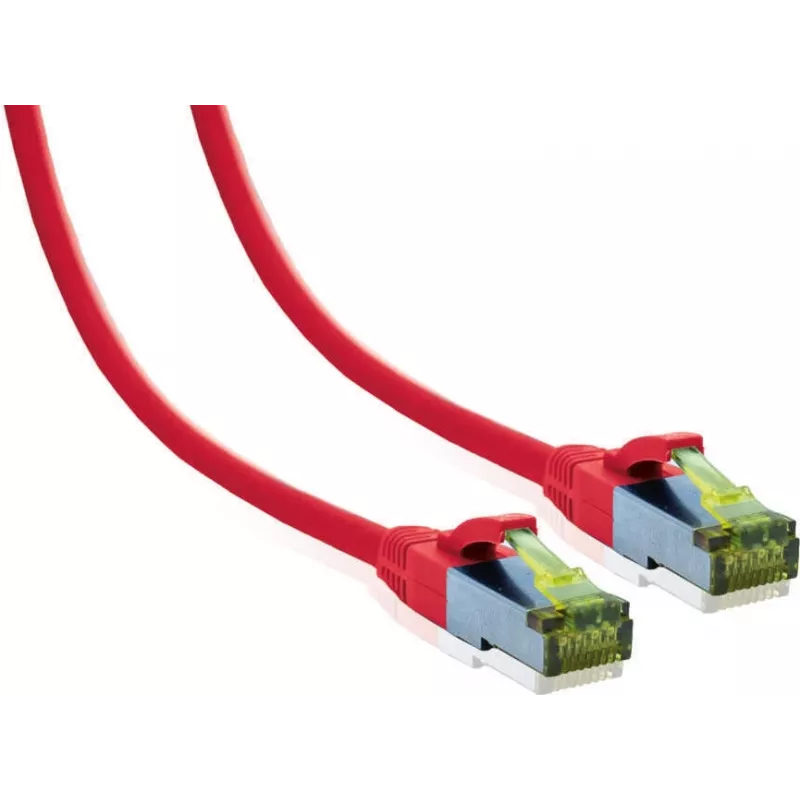

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance network cable designed for demanding data center and enterprise environments. It combines Cat.6A performance with a Cat.7 raw cable construction, delivering exceptional signal integrity and reliability. With 600 MHz bandwidth and support for 10 Gigabit Ethernet, this cable ensures fast and stable data transmission. The full copper conductors and S/FTP shielding provide excellent protection against interference, while the LSZH jacket ensures safety in enclosed spaces. Ideal for PoE+ applications, this red 1.5-meter patch cable is a versatile solution for high-speed networking.

Advantages

This patch cable offers superior performance and durability. The use of 100% copper conductors guarantees optimal conductivity and signal quality, reducing data loss and errors. The S/FTP shielding (pairs in metal foil plus overall braid) effectively minimizes electromagnetic interference (EMI) and crosstalk, making it suitable for high-density installations. The LSZH jacket is halogen-free and flame-retardant, enhancing safety in case of fire. Additionally, the cable supports PoE+ (IEEE 802.3at), allowing power and data transmission over a single cable for devices like IP cameras and wireless access points.

Suitable for

• Data centers and server rooms
• Enterprise networks requiring high-speed connectivity
• 10GBase-T Ethernet networks
• Power over Ethernet Plus (PoE+) applications
• Structured cabling systems

Key specifications

• Cable Type: Patch Cable (Ethernet)
• Category: Cat.6A (with Cat.7 raw cable)
• Frequency Bandwidth: 600 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: 100% Copper (Full Copper)
• Shielding: S/FTP (PiMF + Braid)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.5 m
• Colour: Red
• Connector: RJ45 with gold-plated contacts
• Conductor Gauge: AWG 26/7 (stranded)
• Wiring Standard: TIA/EIA 568B
• PoE Support: PoE+ (IEEE 802.3at)
• Flame Retardancy: IEC 60332-1
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to maintain bend radius and avoid signal degradation. This cable is an excellent choice for upgrading existing networks to 10 Gigabit speeds while maintaining backward compatibility with lower-speed devices.
