IT-BUDGET Rack de red de 19" SRK - 18U - 600x600 mm - Puerta de cristal/acero - Flatpack - Negro (90ITB19SRK1866GSN)

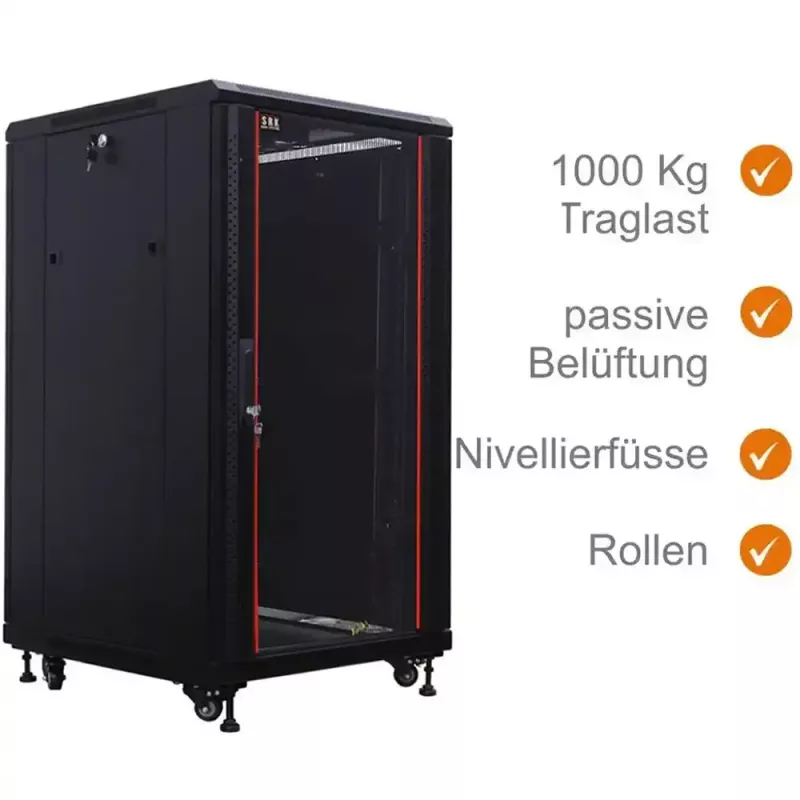

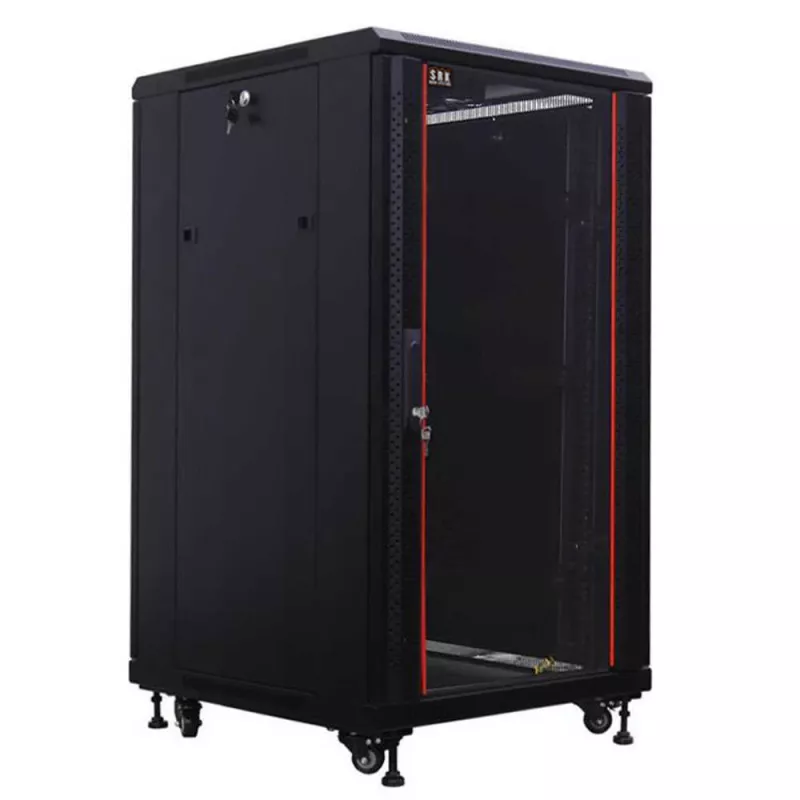

This 18U freestanding network cabinet from IT-BUDGET arrives flatpacked, so you can move it through narrow doorways and assemble it exactly where it is needed. The 600 x 600 mm footprint keeps it compact for branch offices and small server rooms, while the tempered glass front door and solid steel rear door give you both visibility and security.

Highlights

• 18U of 19-inch rack space with adjustable mounting rails
• 600 mm width and 600 mm depth, 920 mm external height
• Lockable tempered glass front door and solid steel rear door
• Removable, lockable side panels
• Passive ventilation via perforated top and bottom frame
• Static load capacity of 600 kg
• Adjustable leveling feet for stable installation

In daily use

The cabinet is built from SPCC cold rolled steel with a black RAL 9005 finish. Cable entry points on top and bottom are fitted with brush strips to keep dust out while allowing clean cable routing. The 19-inch mounting rails can be adjusted in depth to accommodate different equipment lengths, and the rack conforms to IEC 60297-3-100 and DIN 41494 Part 1 & 7.

Full specifications

• Rack units: 18U
• Rack standard: 19 inch
• External dimensions (W x D x H): 600 x 600 x 920 mm
• Front door: Tempered glass, lockable
• Rear door: Solid steel, lockable
• Side panels: Removable, lockable
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Delivery condition: Flatpack (unassembled)
• Static load capacity: 600 kg
• Cable entry: Top and bottom with brush strips
• Mounting rails: 19-inch, adjustable depth
• Ventilation: Passive (perforated top/bottom frame)
• Protection class: IP20
• Feet: Adjustable leveling feet
• Compliance: IEC 60297-3-100, DIN 41494 Part 1 & 7

Final note

For a secure, compact 18U rack that can be assembled on site, the IT-BUDGET SRK offers a practical balance of access, protection and load capacity.
