Janitza UMG 96-PA convertidor de medida universal modular 90-277V 5232001

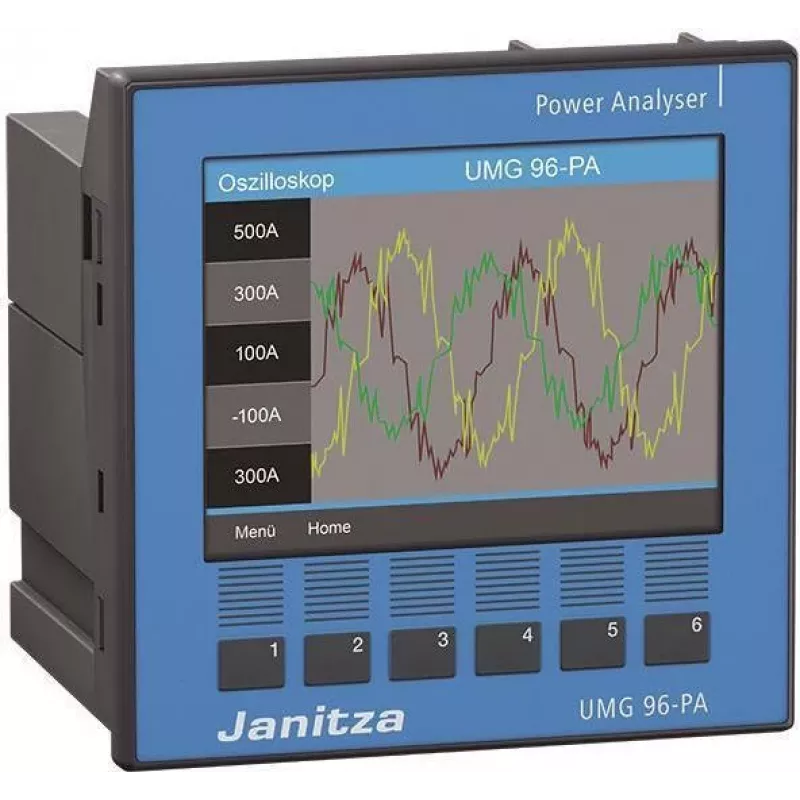

The Janitza UMG 96-PA stands apart with its modular design and precision energy analysis, delivering Class 0.2S accuracy for active energy in a compact 96x96 mm panel format. It measures voltage, current, frequency, power, energy, harmonics up to the 63rd order, and more, with a graphic LCD for clear data visualization.

Highlights

• Class 0.2S active energy accuracy (IEC 62053-22)
• Direct voltage measurement up to 300V L-N / 520V L-L (CAT III 300V)
• Harmonic analysis up to 63rd order
• RS485 Modbus RTU interface
• 128 MB internal flash for data logging
• Wide-range power supply 90-277V AC/DC
• 2 digital inputs and 2 digital outputs
• Panel mount with 96x96 mm cutout

In daily use

The UMG 96-PA is built for demanding energy monitoring in three-phase systems. Its modular concept allows flexible configuration, while the graphic LCD presents measured values and waveforms clearly. The device supports 3-wire and 4-wire networks, making it suitable for a wide range of industrial and commercial applications.

Full specifications

• Device type: Universal Measuring Device / Power Analyzer
• Measurement parameters: Voltage, current, frequency, active/reactive/apparent power, power factor, energy, harmonics, THD, flicker, unbalance
• Voltage range (direct): L-N: 10-300V AC, L-L: 10-520V AC (CAT III 300V)
• Current measurement: via external current transformers (x/1A or x/5A)
• Accuracy class (active energy): 0.2S (IEC 62053-22)
• Power supply: 90-277V AC/DC
• Display: Graphic LCD
• Communication: RS485 (Modbus RTU)
• Internal memory: 128 MB Flash
• Digital inputs: 2
• Digital outputs: 2
• Harmonic analysis: up to 63rd harmonic
• Measurement system: 3-phase, 4-wire or 3-wire
• Mounting: Panel mount (96x96 mm cutout)
• Protection class: IP54 (front), IP20 (rear)
• Operating temperature: -10°C to +55°C
• Sampling rate: 21.3 kHz per channel
• Frequency range: 45-65 Hz

Final note

For precise energy monitoring and power quality analysis, the UMG 96-PA offers reliable performance in a modular, panel-mount design.
