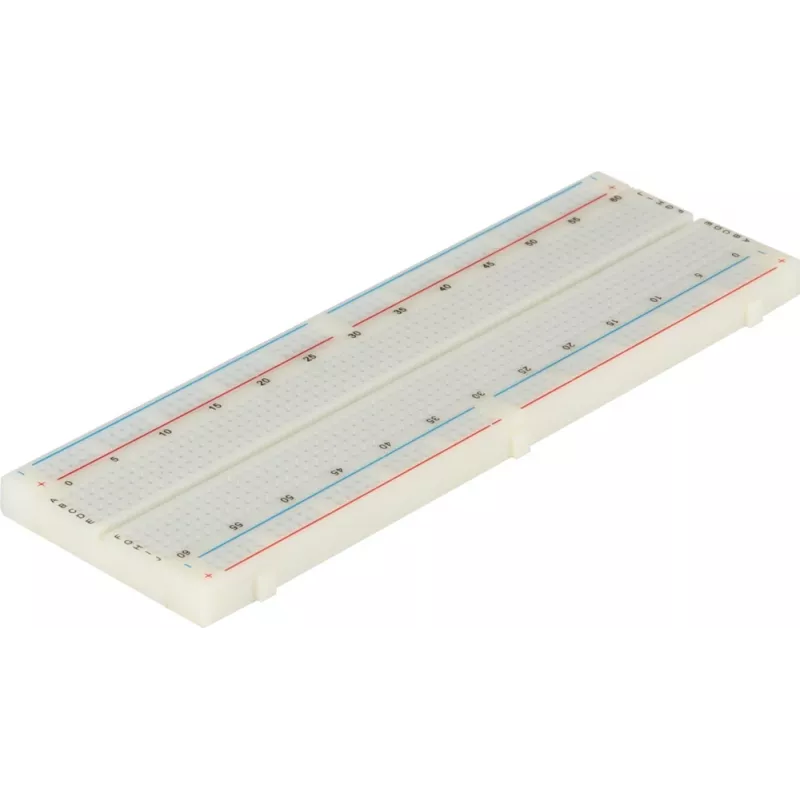

JOY-IT 830 Tie Point placa de pruebas sin soldadura, 165 x 55 mm, blanco rb-breadboard2

With 830 tie points, this JOY-IT breadboard offers ample space for complex prototyping, while its nickel-plated phosphor bronze contacts ensure reliable connections for wires from 20 to 29 AWG.

Overview

The JOY-IT rb-breadboard2 is a high-quality solderless breadboard designed for electronics prototyping and experimentation. It features a total of 830 tie points, including two terminal strips with 630 tie points and four power rails with 200 tie points, providing plenty of room for building and testing circuits without soldering. The breadboard measures 165 mm x 55 mm, making it compact enough for desktop use while still offering ample workspace.

What stands out

• 830 tie points for versatile circuit construction
• Durable ABS plastic body with nickel-plated phosphor bronze contacts
• Self-adhesive backing for secure mounting
• Interconnectable design allows multiple boards to be joined
• Wide operating temperature range from -20°C to 80°C

Technical details

• Total tie points: 830
• Terminal strips: 2 (630 tie points)
• Power rails: 4 (200 tie points)
• Dimensions (L x W): 165 mm x 55 mm
• Material: ABS plastic body, nickel-plated phosphor bronze contacts
• Colour: White
• Voltage rating: 300 V
• Current rating: 3-5 A
• Wire size compatibility: 20-29 AWG (0.3-0.8 mm)
• Contact resistance: < 100 mΩ
• Insulation resistance: > 100 MΩ
• Operating temperature: -20°C to 80°C
• Mounting: Self-adhesive backing
• Interconnectability: Yes, multiple breadboards can be connected
• Quantity per pack: 1 piece

Our verdict

The JOY-IT rb-breadboard2 is a reliable and versatile prototyping tool suitable for hobbyists and professionals alike. Its high-quality contacts and durable construction ensure long-lasting performance, while the generous number of tie points accommodates a wide range of projects.
