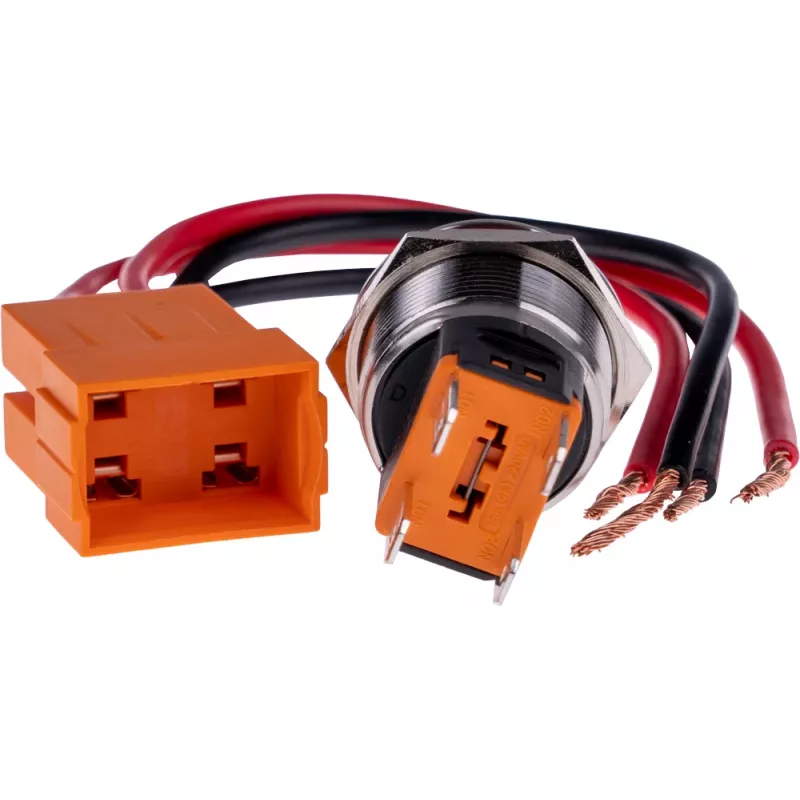

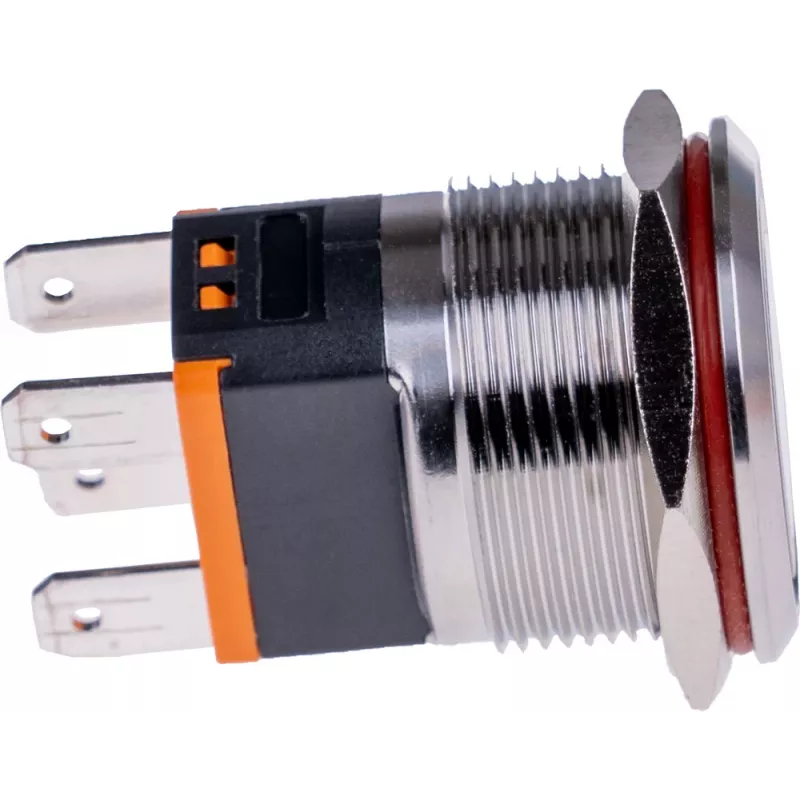

Joy-IT BUTTON22C-M-GR pulsador momentáneo, 250 V AC, 15 A, IP67, IK10, 22 mm, verde

Rated for 15 A at 250 V AC, this momentary pushbutton switch handles high-current control circuits without a latching mechanism. The IP67 and IK10 ratings mean it shrugs off dust, temporary immersion, and heavy impacts.

Overview

The BUTTON22C-M-GR is a panel-mount pushbutton switch with a 22 mm mounting diameter. Its SPDT (1 changeover) contact configuration provides both normally open and normally closed paths, making it adaptable to various control schemes. The metal actuator and housing are built for industrial environments.

What stands out

• Momentary action: returns to rest position when released.
• High electrical rating: 250 V AC / 15 A.
• Sealed to IP67: dust-tight and protected against temporary immersion.
• Impact rated IK10: withstands 20 joules of impact energy.
• Round metal actuator in grey.

Technical details

• Switch type: Pushbutton
• Operation mode: Momentary (non-latching)
• Contact configuration: 1 changeover (SPDT)
• Max. switching voltage: 250 V AC
• Max. switching current: 15 A
• IP rating: IP67
• IK rating: IK10
• Mounting diameter: 22 mm
• Actuator material: Metal
• Housing material: Metal
• Number of poles: 1
• Illumination: No
• Actuator shape: Round
• Mounting type: Panel mount
• Series: BUTTON22C

Our verdict

A rugged, high-current momentary pushbutton for demanding control panels. The IP67 and IK10 ratings ensure long-term reliability in harsh conditions.
