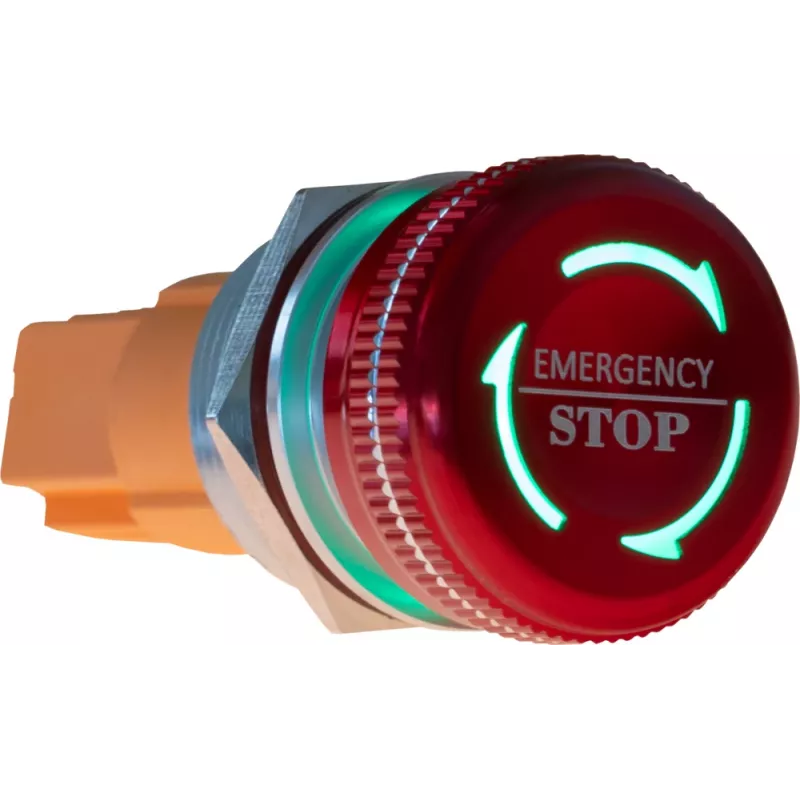

JOY-IT Button22NA-02 pulsador de parada de emergencia, con enclavamiento, montaje 22 mm, 220 V, cabeza de seta roja, collarín verde, IP67, IK10

The JOY-IT Button22NA-02 stands out with its robust latching emergency stop design, combining a red mushroom head actuator with a green bezel for clear visual status indication. Rated for 220 V and built to IP67 and IK10 standards, it is suited for industrial control panels and machine safety applications where reliable interruption is critical.

Highlights

• Latching operation: once pressed, the button remains engaged until manually reset, ensuring a fail-safe stop condition.
• 22 mm mounting diameter fits standard industrial panel cut-outs, simplifying integration into existing control systems.
• IP67 ingress protection guards against dust and temporary immersion, while IK10 impact resistance withstands mechanical shocks.
• Red mushroom head with green bezel provides intuitive emergency identification and status indication.

In daily use

In an industrial setting, the Button22NA-02 serves as a critical safety component. Its latching mechanism prevents accidental restart after an emergency stop, requiring deliberate reset action. The IP67 rating allows use in environments with moisture or dust, and the robust construction endures physical impacts common in workshops. The 220 V rating matches standard control circuit voltages, enabling direct integration without additional components.

Full specifications

• Product type: Emergency Stop Push Button
• Operation mode: Latching
• Mounting hole diameter: 22 mm
• Rated voltage: 220 V
• Ingress protection: IP67
• Impact protection: IK10
• Button colour: Red
• Bezel colour: Green
• Overall depth: 46.50 mm
• Actuator type: Mushroom head
• Pack quantity: 1 piece

Final note

With its durable build and clear visual design, the JOY-IT Button22NA-02 is a reliable choice for emergency stop functions in demanding industrial environments.
