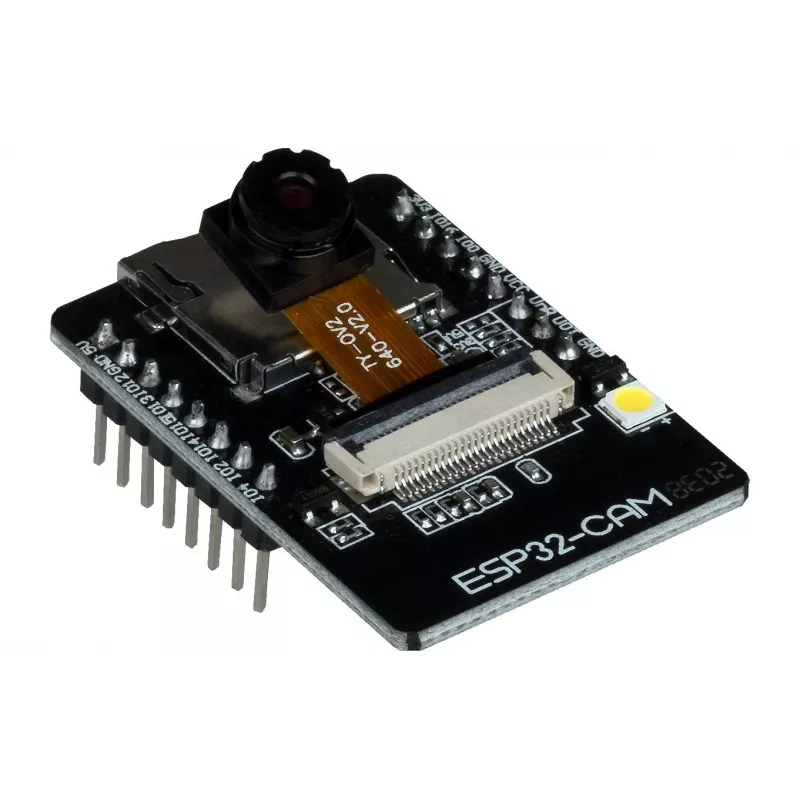

Joy-IT placa con cámara ESP32 con cámara de 2MP (SBC-ESP32-Cam)

This ESP32 development board integrates a 2MP OV2640 camera, enabling wireless image capture and streaming over Wi-Fi. It is built around the ESP32-D0WDQ6V3 microcontroller with 4MB flash and 4MB PSRAM, and includes a microSD card slot for local storage.

Advantages

Combines a powerful dual-core processor with a camera sensor and Wi-Fi/Bluetooth connectivity on a single board. The microSD slot supports up to 4GB, allowing standalone image logging without a constant network connection.

Suitable for

• IoT vision projects such as remote monitoring and time-lapse photography
• AI and machine learning prototyping with image input
• Educational projects exploring embedded vision and wireless communication

Key specifications

• Microcontroller: ESP32-D0WDQ6V3
• Camera: OV2640, 2MP (1600x1200 max)
• Flash memory: 4MB
• PSRAM: 4MB
• Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BR/EDR & BLE
• Storage: MicroSD card slot (up to 4GB)
• Power supply: 5V DC
• Interfaces: UART, SPI, I2C, PWM, ADC, DAC
• Onboard flash LED
• Antenna: PCB antenna and IPEX connector
• Development environments: Arduino IDE, ESP-IDF

Recommendations

Ideal for makers and developers seeking a compact, low-cost solution for wireless camera applications. Pair with a 5V power supply and a microSD card for immediate prototyping.
