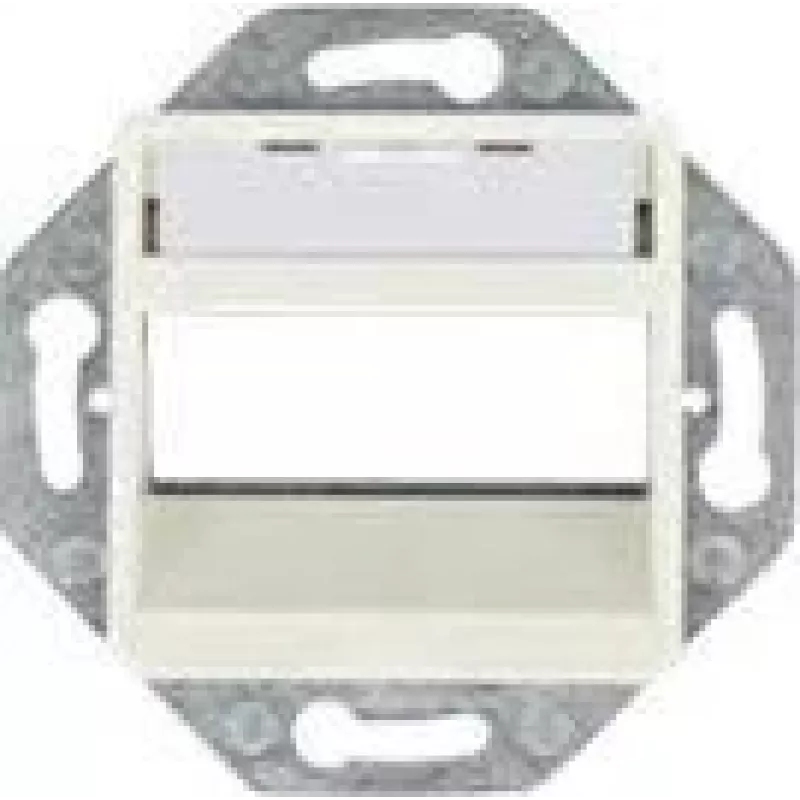

Juego de marco Corning Cable Systems CAXXSE-S0301-C002 50x50 mm RAL9010

Frame set Corning Cable Systems CAXXSE-S0301-C002 50x50 mm RAL9010 is a compact mounting frame intended for structured cabling installations. With external dimensions of 50×50 mm and a neutral RAL9010 finish, the frame set provides a standardized, low-profile housing for fiber or cable components. It is designed to integrate into network enclosures, patch panels and distribution frames where a small-format, consistent mounting solution is required.

Advantages

The frame set offers a precise fit and uniform appearance for front-facing cabling components, simplifying installation and maintenance. Its standardized 50×50 mm footprint ensures compatibility with common mounting panels and adapters while the RAL9010 finish matches white equipment aesthetics. The product is made to facilitate organized cable routing and to secure small modules or adapters without adding bulk to the equipment front.

Suitable for

• Mounting fiber adapters or small cable modules in patch panels
• Integration into network enclosures and distribution frames
• Standardized front-face installations in telecommunications racks
• Applications requiring a compact, white-finish mounting frame

Key specifications

• External dimensions: 50 × 50 mm
• Finish: RAL9010 (white)
• Form factor: standardized small-frame for modular mounting
• Compatibility: meant for use with fiber or cable adapters and small modules in structured cabling systems

How to use

Install the frame set by aligning it with the corresponding cutout in the patch panel or enclosure front. Secure the frame using the appropriate screws or clips provided by the enclosure manufacturer, ensuring the frame sits flush and stable. After mounting, insert the intended adapter or module into the frame and fasten according to the module’s installation instructions. Verify alignment and cable routing to avoid stress on connectors and fibers.

Recommendations

For reliable operation, use the frame with compatible adapters and modules designed for 50×50 mm frames. During installation, avoid excessive force on connectors and follow standard ESD and fiber handling precautions. If painting or modifying enclosures, ensure the RAL9010 finish remains consistent to preserve the visual match and protective coating.
