Juego de montaje Rittal VX 8619.600

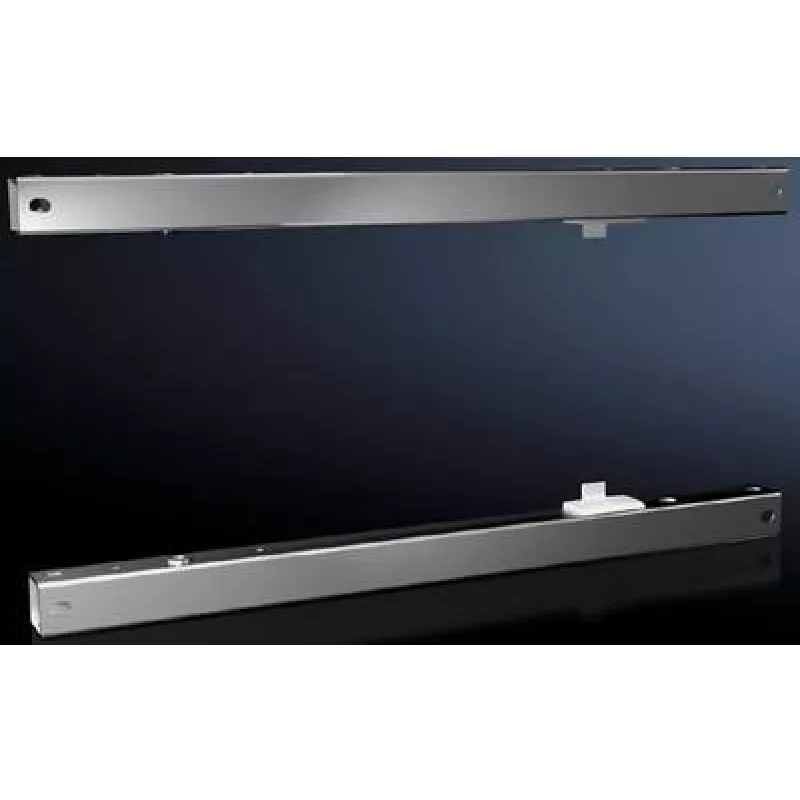

The Rittal VX 8619.600 mounting kit is a steel accessory designed for secure installation of swing frames, small AX and VX enclosures, SE models, or for use with a partial mounting plate together with a hinge for partial mounting plates. It has a grey finish and a pack weight of approximately 2.5 kg; each pack contains one mounting kit unit suitable for industrial enclosure mounting tasks.

Advantages

The mounting kit is made of durable steel for reliable long-term use and a secure fit. Its grey finish provides corrosion resistance and a consistent appearance with Rittal VX enclosures. The kit is supplied as a single complete unit per pack and is compatible with swing frames and partial mounting plate applications.

Suitable for

Key specifications

How to use

Position the mounting kit on the enclosure frame at the intended mounting location for the swing frame or partial mounting plate. Secure the kit using appropriate fasteners compatible with the enclosure and follow Rittal installation guidelines for alignment and torque values. If used with a partial mounting plate, install the hinge for partial mounting plates first, then attach the mounting kit to ensure proper movement and clearance.

Recommendations

Use suitable corrosion‑resistant fasteners and confirm compatibility with the specific AX, VX or SE enclosure model before final installation. Follow Rittal’s assembly instructions and safety guidelines when mounting electrical enclosures.
