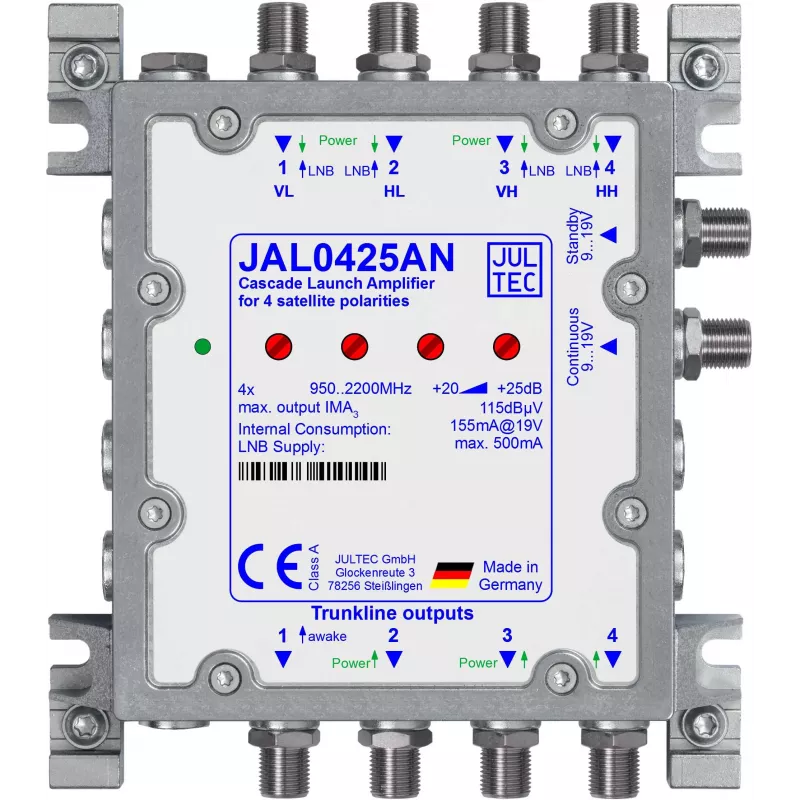

JULTEC JAL0425AN amplificador en cascada SAT con fuente de alimentación

The JULTEC JAL0425AN is a professional SAT cascade booster amplifier designed for distributing satellite and terrestrial signals in multi-dwelling units or small headend systems. It features 4 SAT IF inputs and 1 terrestrial input, each with 25 dB gain, and provides 4 SAT IF outputs plus 1 terrestrial output. The unit includes an external AC/DC power supply and supports LNB powering with DiSEqC 2.0 control. Housed in a robust die-cast aluminum enclosure, it ensures reliable performance and low noise figure.

Advantages

High gain of 25 dB on both SAT and terrestrial paths ensures strong signal distribution. Low noise figure (<6 dB) maintains signal quality. DiSEqC 2.0 control allows flexible LNB switching. Compact and durable die-cast aluminum housing for long life.

Suitable for

• Satellite TV distribution in apartment buildings
• Small headend systems
• Professional MATV installations

Key specifications

• SAT IF Inputs: 4
• Terrestrial Inputs: 1
• SAT IF Outputs: 4
• Terrestrial Outputs: 1
• SAT IF Frequency Range: 950 - 2400 MHz
• Terrestrial Frequency Range: 5 - 862 MHz
• Gain: 25 dB (SAT and terrestrial)
• Max. Output Level: 110 dBµV (SAT), 100 dBµV (terrestrial)
• Power Supply: External AC/DC adapter (included)
• LNB Powering: 13V/18V, 22kHz, DiSEqC
• Connectors: F-type
• Housing: Die-cast aluminum

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The amplifier is designed for indoor use only.
