JUNG 2570M1SR KNX IP Multistation, carril DIN, 4 TE, Secure

With support for KNXnet/IP Secure and KNX Data Secure, this multistation delivers encrypted communication for modern KNX installations. It combines an IP interface, router, and server in one 4 TE DIN rail module.

Overview

The JUNG 2570M1SR KNX IP Multistation is a versatile device that functions as a KNX IP interface, router, and server. It enables secure communication between KNX installations and IP networks, supporting up to 8 tunneling connections and 5 routing interfaces. The module is designed for DIN rail mounting and occupies 4 module units (TE).

What stands out

• Supports KNXnet/IP Secure and KNX Data Secure for encrypted communication.
• Combines IP interface, router, and server functions in a single device.
• Allows up to 8 parallel tunneling connections and 5 IP routing interfaces.
• Features a web interface for diagnostics and configuration.
• Firmware updates possible via web interface or ETS.

Technical details

• Device type: KNX IP Multistation
• Mounting: DIN rail (REG)

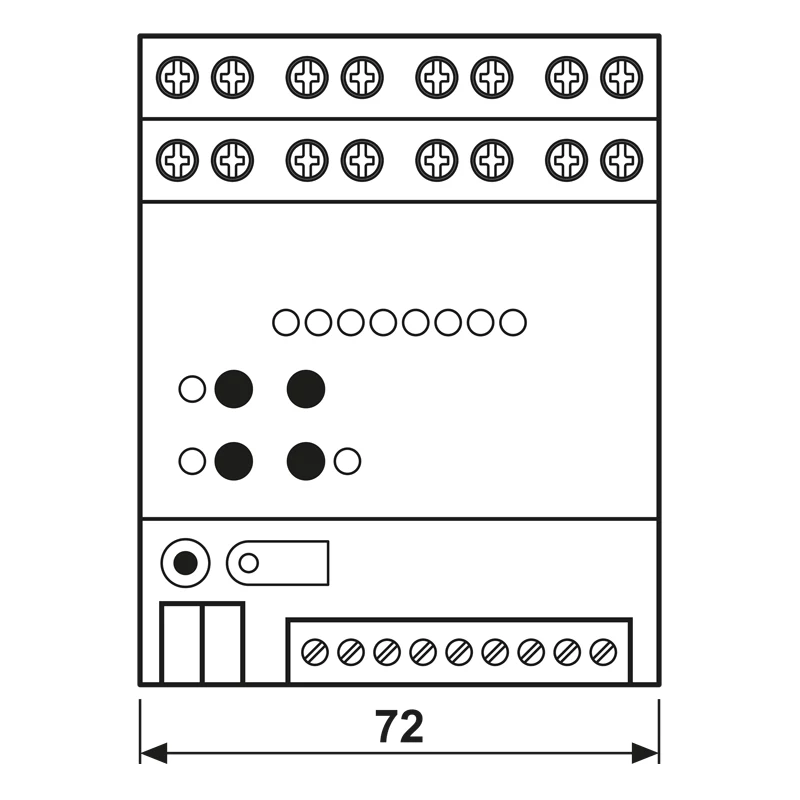

• Module units: 4 TE
• Connections: 1x RJ45 Ethernet, 1x KNX bus terminal
• Power supply: KNX bus (21-30 V DC) or auxiliary power (24 V DC)
• KNX bus current consumption: max. 15 mA
• Auxiliary power current consumption: max. 100 mA
• Operating temperature: 0 to +45 °C
• Protection class: IP20
• Configuration: ETS5 or higher
• Supports NAT and telegram filtering.

Our verdict

A secure and multifunctional KNX IP solution, ideal for integrating KNX systems with IP networks while ensuring data protection.
