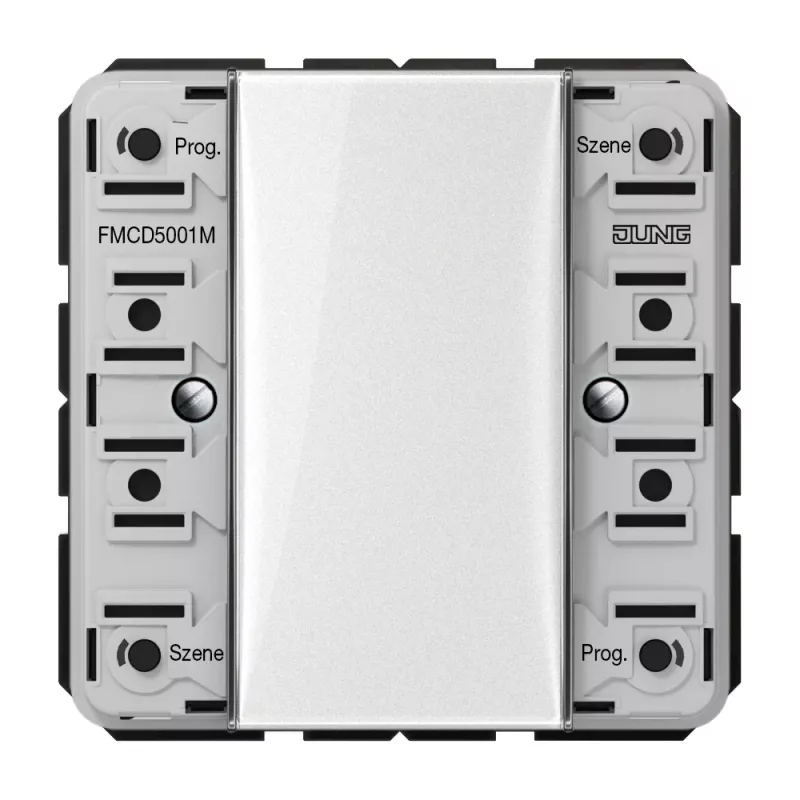

JUNG eNet Módulo emisor de pared por radio 1 canal FM CD 5001 M

Wireless wall transmitter module for the eNet SMART HOME system, enabling remote control of lighting, blinds, and scenes with a single channel. The module integrates seamlessly into JUNG CD series frames and operates on battery power for flexible placement.

Advantages

Battery-operated design eliminates the need for wiring, allowing installation in existing flush-mounted boxes or surface housings. The module supports switching, dimming, blind control, and scene recall, all configurable via the eNet server. With a typical battery life of approximately 5 years, maintenance is minimal.

Suitable for

• Retrofitting existing switches to wireless control
• Controlling lighting and blinds in smart home setups
• Use with JUNG CD series frames (CD 500, CD plus, CD universal)

Key specifications

• Product type: Wireless wall transmitter module
• Number of channels: 1
• Wireless protocol: eNet
• Operating frequency: 2.4 GHz
• Power supply: Battery-operated (1x Lithium button cell CR 2450N)
• Typical battery life: Approx. 5 years
• Mounting type: Flush-mounted box or surface mounting housing
• Functions: Switching, dimming, blind control, scene recall
• Configuration: Via eNet server
• Transmission power: Max. 10 mW
• Protection class: IP20
• Operating temperature: -5 to +45 °C
• Material: Thermoplastic
• Colour: Neutral (module only, without rocker/cover)

Recommendations

For a complete installation, combine with a suitable JUNG CD series rocker and cover. Ensure the eNet server is available for configuration and integration into the smart home system.
