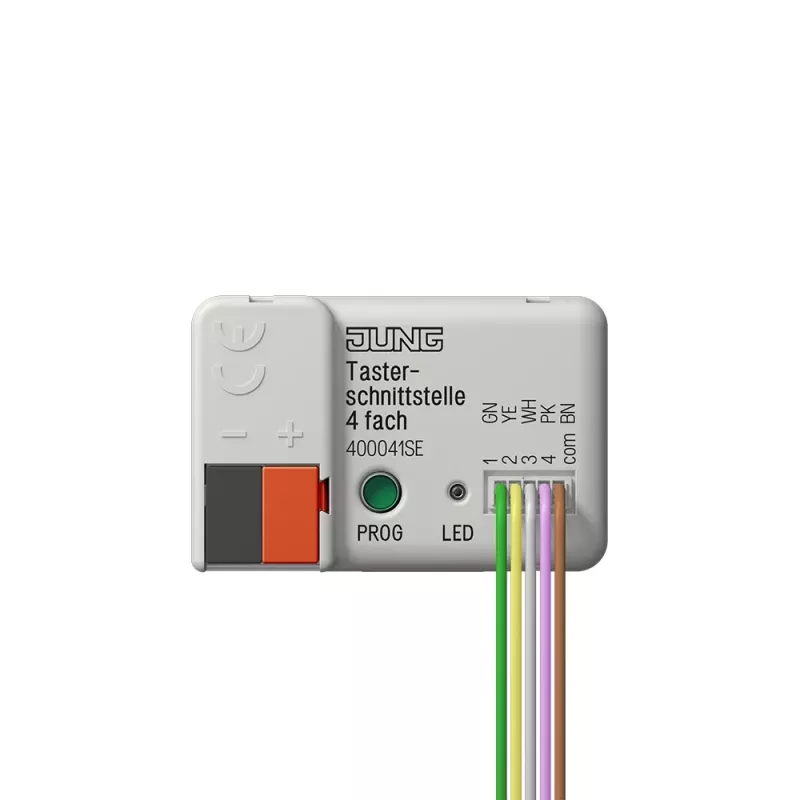

JUNG JG 400041SE KNX Interfaz de pulsador 4 elementos

The JUNG JG 400041SE KNX Push-button Interface 4-fold is a flush-mounted device designed for connecting up to four potential-free contacts (e.g., conventional push-buttons, switches, or sensors) to a KNX bus system. It enables intelligent control of lighting, blinds, and other building functions via the KNX network.

Advantages

Flexible integration of conventional push-buttons into KNX installations; configurable functions per input including switching, dimming, blind control, value transmitter, scene recall, sequence controller, and counter; integrated logic functions (AND, OR, XOR, NOT, gate, comparator) for advanced automation; diagnostic functions for input status feedback.

Suitable for

• Residential and commercial KNX building automation
• Retrofitting existing push-buttons into a smart home system
• Controlling lighting, blinds, and other loads via KNX

Key specifications

• Product Type: KNX Push-button Interface
• Number of Inputs: 4
• Bus System: KNX
• Input Type: Potential-free contacts
• Mounting Type: Flush-mounted (for standard flush-mounted box)
• Supply Voltage: Via KNX bus
• Current Consumption (KNX): Approx. 5 mA
• Max. Input Cable Length: 5 m
• Configurable Functions per Input: Switching, Dimming, Blind Control, Value Transmitter, Scene Recall, Sequence Controller, Counter
• Logic Functions: Yes (AND, OR, XOR, NOT, Gate, Comparator)
• Diagnostic Functions: Yes (e.g., input status feedback)
• ETS Version: ETS4.2 or higher
• Protection Class: IP20
• Operating Temperature: -5 °C to +45 °C
• Connection Terminals: Bus terminal (KNX), screw terminals (inputs)
• Installation Depth: Approx. 25 mm
• Material: Plastic

Recommendations

For optimal performance, use with ETS software version 4.2 or higher. Ensure proper KNX bus connection and adhere to maximum input cable length of 5 m.
