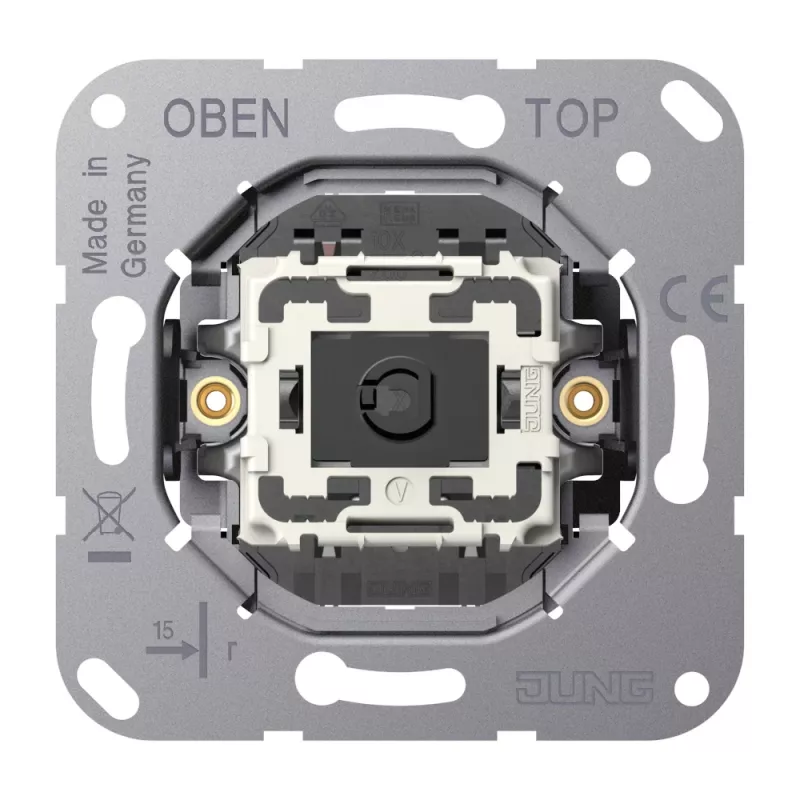

JUNG K507EU conmutador de cruce, 10 AX, 250 V, blanco

Intermediate switch for flush-mounted installation, enabling 4-way switching of lighting circuits with a rated current of 10 AX at 250 V. The switch insert features screw terminals and a white thermoplastic body, compatible with JUNG A, AS, CD, LS, and SL series cover plates.

Advantages

Halogen-free thermoplastic material ensures environmental compatibility. The compact design with 32 mm installation depth fits standard flush-mounted boxes. VDE certification confirms compliance with electrical safety standards.

Suitable for

• Incandescent lamps
• HV halogen lamps
• Fluorescent lamps

Key specifications

• Switch type: Intermediate switch (4-way)
• Rated current: 10 AX
• Rated voltage: 250 V~
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Number of terminals: 4
• Material: Thermoplastic
• Colour of insert: White
• Protection class: IP20
• Operating temperature: -5 to +40 °C
• Halogen-free: Yes
• Installation depth: 32 mm
• Certification: VDE

Recommendations

Pair with JUNG cover plates from the A, AS, CD, LS, or SL ranges for a coordinated look. Ideal for staircases, corridors, and large rooms requiring control from three or more points.
