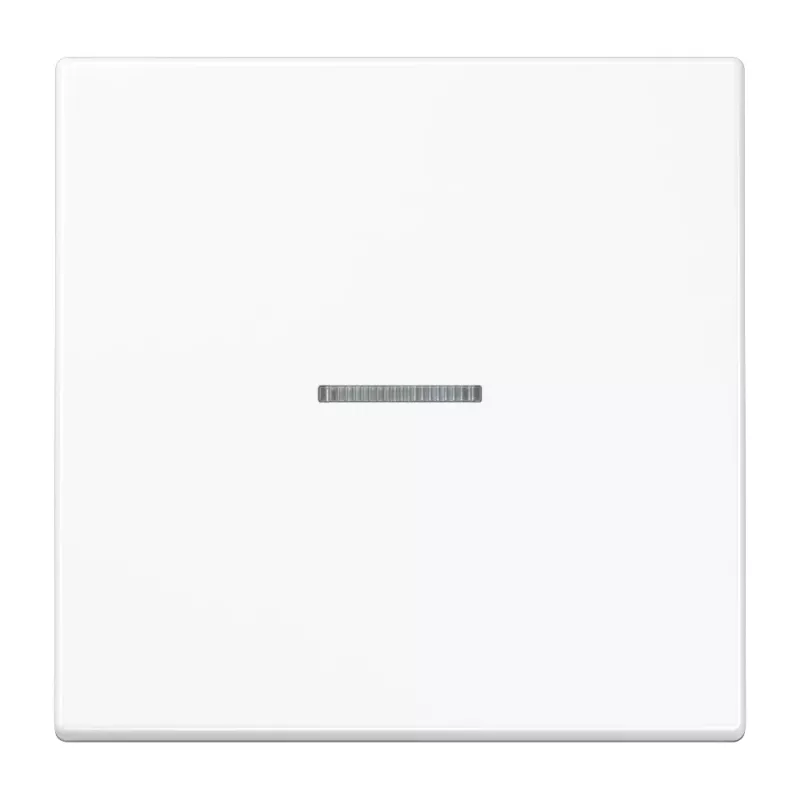

Jung KNX RF Pulsador 1 elemento duroplast serie LS blanco alpino LS10911STRFWW

The Jung KNX RF Push-Button 1-Gang operates on the 868.3 MHz KNX RF S-Mode protocol, enabling wireless control of lighting, blinds, and scenes without bus wiring. Its thermoset construction in Alpine White matches the LS series design.

Overview

This battery-powered push-button module is designed for flush mounting in standard wall boxes. It communicates via KNX RF, eliminating the need for a wired KNX bus connection. The device is configured using ETS software and supports functions such as switching, dimming, blind control, value transmission, scene recall, sequence, and disable.

What stands out

• Wireless KNX RF communication at 868.3 MHz
• Battery operated with CR 2450 N cell, approximately 5 years life
• Thermoset material in Alpine White, part of the LS series
• Flush-mounted with a depth of 28 mm
• Configurable via ETS for multiple functions

Technical details

• Product type: KNX RF Push-button Module
• Number of buttons: 1
• Communication protocol: KNX RF (S-Mode)
• Transmission frequency: 868.3 MHz
• Power supply: Battery (CR 2450 N)
• Battery life: approx. 5 years
• Material: Thermoset (Duroplast)
• Colour: Alpine White
• Series: LS
• Mounting type: Flush-mounted
• Protection class: IP20
• Operating temperature: -5 to +45 °C
• Installation depth: 28 mm

Our verdict

A reliable wireless KNX RF push-button for LS series installations, offering flexible control without bus wiring.
