JUNG Radioactuador de interruptor REG FM FK 32 REG 2 canales carril DIN

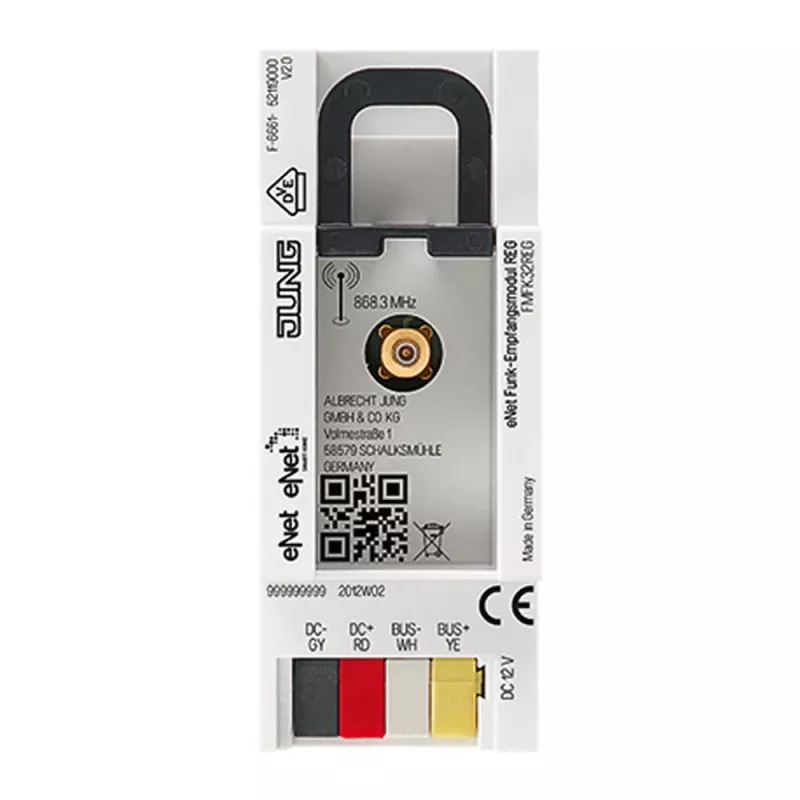

The JUNG Funkkopf REG FM FK 32 REG stands out as a DIN-rail mounted wireless switching actuator that integrates directly into Gira Funkbus installations. Unlike typical plug-in receivers, this module mounts on a standard DIN rail, providing a clean and secure solution for controlling electrical loads via radio signals.

Highlights

• DIN rail mounting (REG) for easy integration into distribution boards
• Two independent relay channels with potential-free contacts
• Operates on the Gira Funkbus radio system at 868.3 MHz
• Switches up to 2300 W resistive load per channel
• Compact 4 TE module width

In daily use

This actuator receives wireless commands from Gira Funkbus transmitters and switches connected loads accordingly. Each of the two channels can handle up to 10 A, making it suitable for lighting, fans, or other electrical devices. The screw terminals ensure reliable connections, and the module is designed for indoor use with an IP20 protection rating.

Full specifications

• Radio frequency: 868.3 MHz
• Number of channels: 2
• Rated voltage: 230 V AC, 50/60 Hz
• Max. switching current (resistive): 10 A per channel
• Max. switching power (resistive): 2300 W per channel
• Max. switching power (inductive): 1150 VA per channel
• Max. switching power (capacitive): 1150 VA per channel
• Module width: 4 TE
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Standby power consumption: 0.5 W
• Connection type: screw terminals

Final note

Compatible with Gira Funkbus transmitters, the FMFK32REG offers a reliable wireless switching solution for modern building automation.
