K2 Systems 1000001 gancho de tejado para tejas, acero inoxidable, placa base 150x60x5 mm, brazo 30x6 mm

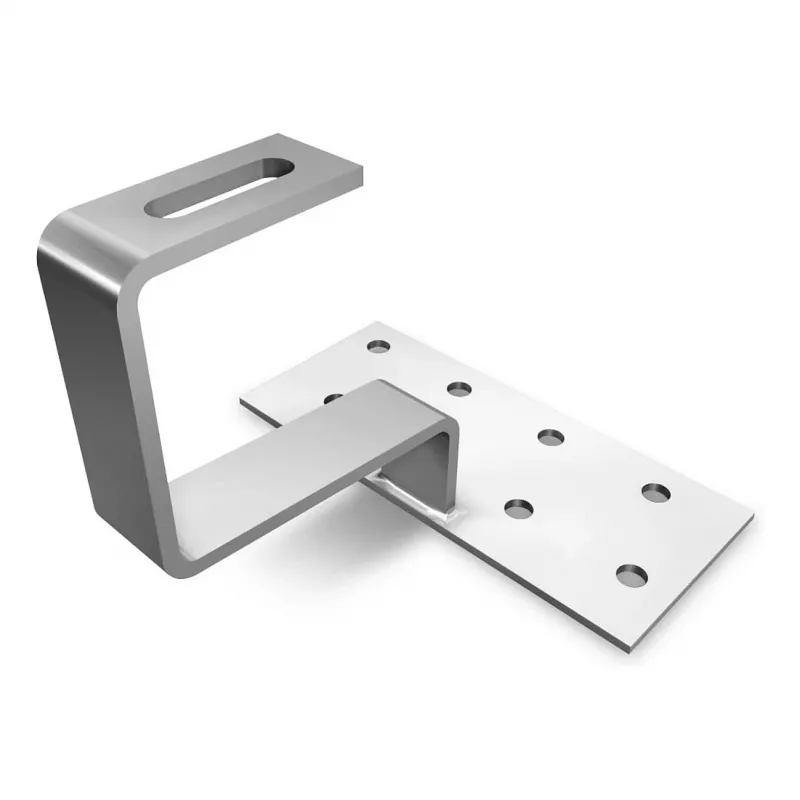

Solar installers working on pitched tile roofs need a reliable anchor point that holds modules securely without damaging the roof covering. The K2 1000001 roof hook is engineered for exactly this task: a robust stainless steel bracket that fastens directly to the roof structure and provides a stable base for K2 SingleRail mounting rails. Its flat base plate (150 x 60 x 5 mm) distributes load evenly across the rafter, while the 30 x 6 mm arm extends above the tile profile to support the rail at an adjustable height.

Key specifications

• Material: Stainless steel 1.4301 (V2A) for high corrosion and UV resistance
• Base plate dimensions: 150 x 60 x 5 mm with pre-drilled holes for wood screws up to 7 mm diameter
• Arm cross-section: 30 x 6 mm, compatible with K2 T-bolts M10 for rail connection
• Height adjustment: 3-fold, adjustable from 40 to 54 mm (roof surface to top of arm)
• Maximum overall height: approx. 134 mm
• Designed for tile roofs (Pfannenziegel) and pitched roof applications
• Compatible with K2 SingleRail System

Why choose it

This hook is built to last in harsh outdoor conditions. The V2A stainless steel resists corrosion and UV degradation, ensuring long-term structural integrity. The three-step height adjustment allows precise alignment of the mounting rail even on uneven roof surfaces, reducing installation time and improving aesthetics. The generous base plate spreads forces to prevent damage to rafters, and the pre-drilled holes simplify screw placement.

Ideal use cases

• Residential and commercial solar installations on pitched tile roofs
• Retrofit projects where existing roof covering must remain intact
• K2 SingleRail systems requiring a secure, adjustable roof attachment
• Coastal or high-humidity environments where corrosion resistance is critical

Good to know

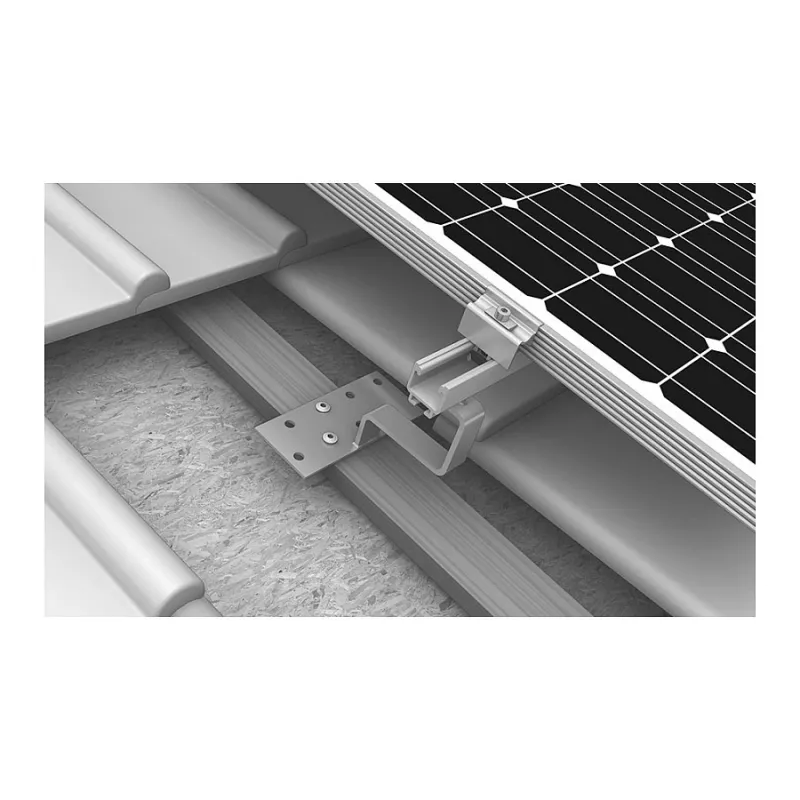

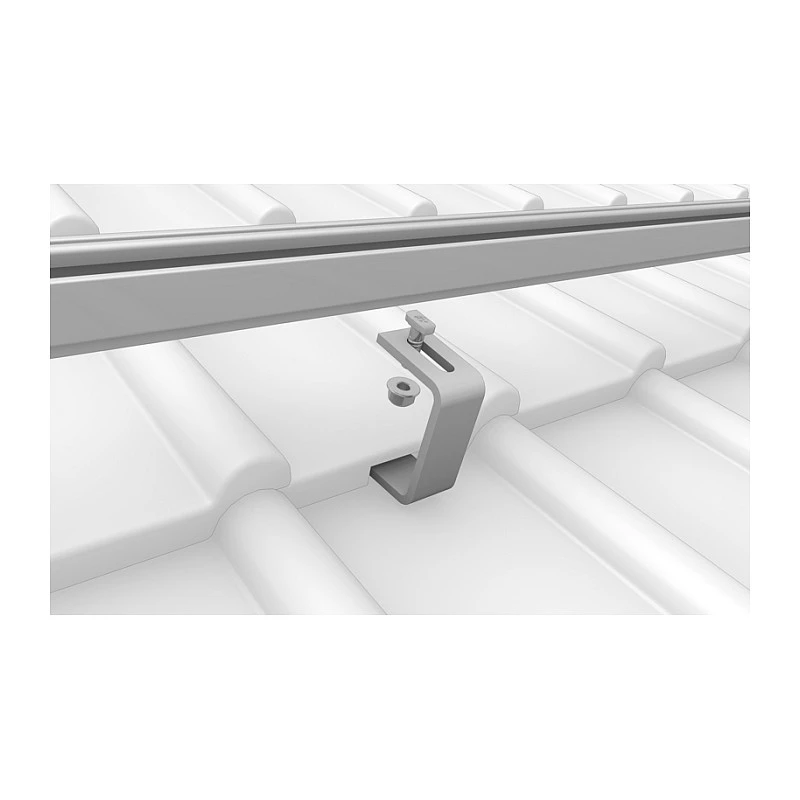

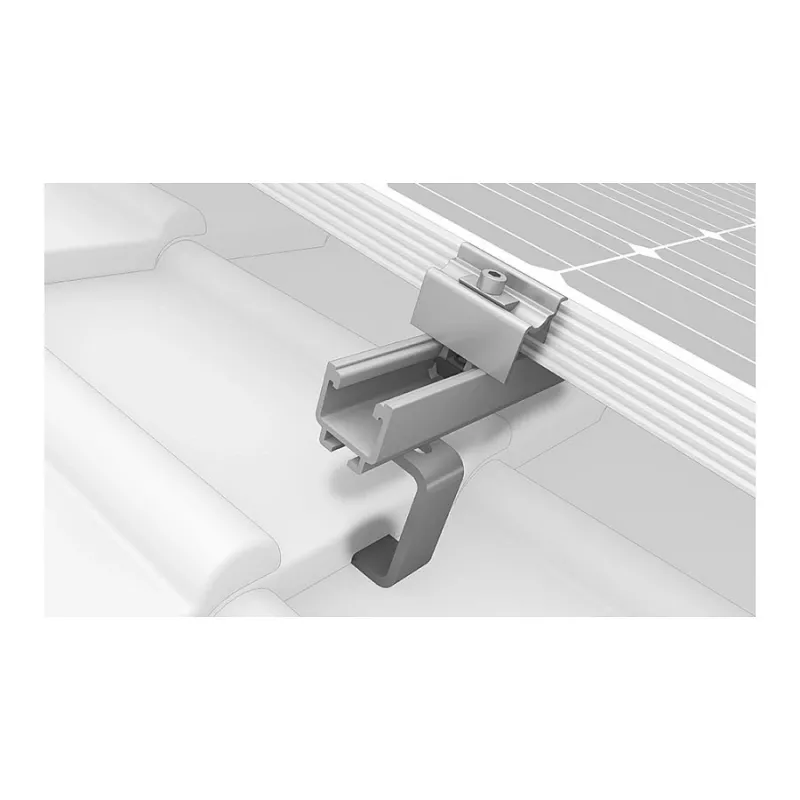

The hook is installed by screwing the base plate directly onto the roof rafter through the tile. The arm then protrudes above the tile, and the rail is attached using a K2 T-bolt (M10) inserted into the arm's slot. The 40–54 mm adjustment range accommodates different tile thicknesses and batten heights. Always follow K2 mounting instructions and local building codes. The hook is sold individually; order quantity depends on rafter spacing and module layout.
