K2 Systems 1000373 gancho de tejado M10 A2 para tejados de pizarra 250x40x6 mm

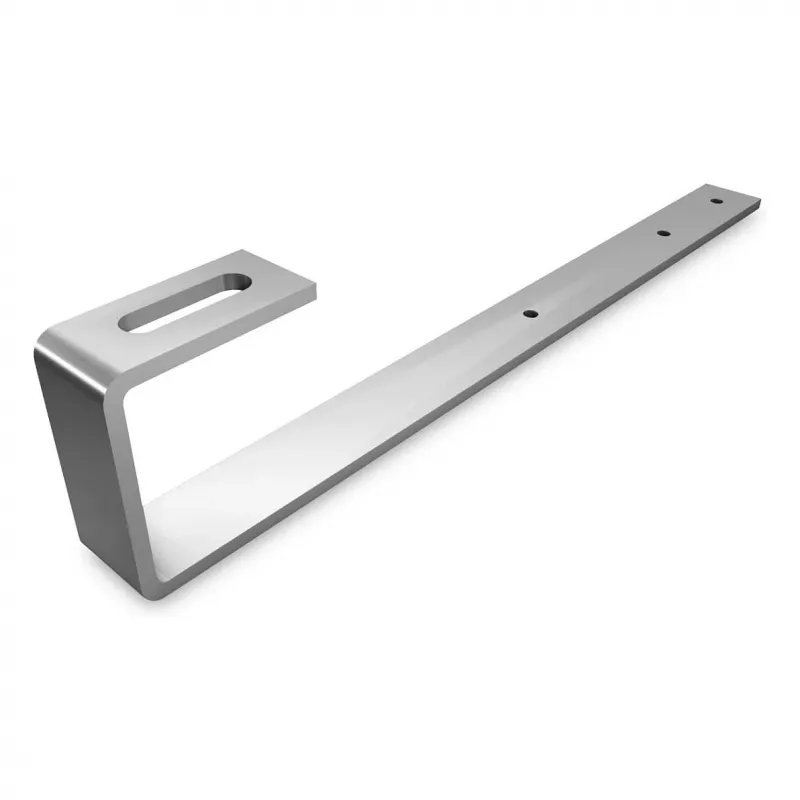

The K2 Systems 1000373 Roof Hook M10 A2 is a dedicated mounting bracket engineered for secure photovoltaic (PV) panel attachment on slate roofs. Constructed from corrosion-resistant stainless steel (AISI 304), this hook delivers exceptional durability and a reliable anchoring point for K2 mounting rails, ensuring the long-term integrity of your solar array.

Advantages

This roof hook is manufactured from high-grade A2 stainless steel, offering outstanding resistance to corrosion and environmental stress. The M10 thread enables rapid and secure fastening to rafters or counter-battens, while the precisely engineered base plate provides optimal load distribution. With two 9 mm mounting holes and a low-profile hook arm, installation is both straightforward and dependable.

Suitable for

• Slate roofs
• Photovoltaic (PV) panel mounting systems
• Compatible with K2 Systems SolidRail and CrossRail mounting rails

Key specifications

• Material: Stainless Steel A2 (AISI 304)
• Mounting thread: M10
• Base plate dimensions: 250 x 40 x 6 mm
• Hook arm dimensions: 40 x 6 mm
• Hook arm height: approx. 60 mm
• Total height: approx. 125 mm
• Number of mounting holes: 2
• Mounting hole diameter: 9 mm
• High corrosion resistance
• TÜV Rheinland certified

Recommendations

Before installation, ensure the roof structure can support the intended load and follow K2 Systems' mounting guidelines. Verify compatibility with your selected rail system and use appropriate fasteners designed for slate roofing to maintain a watertight and secure installation.
