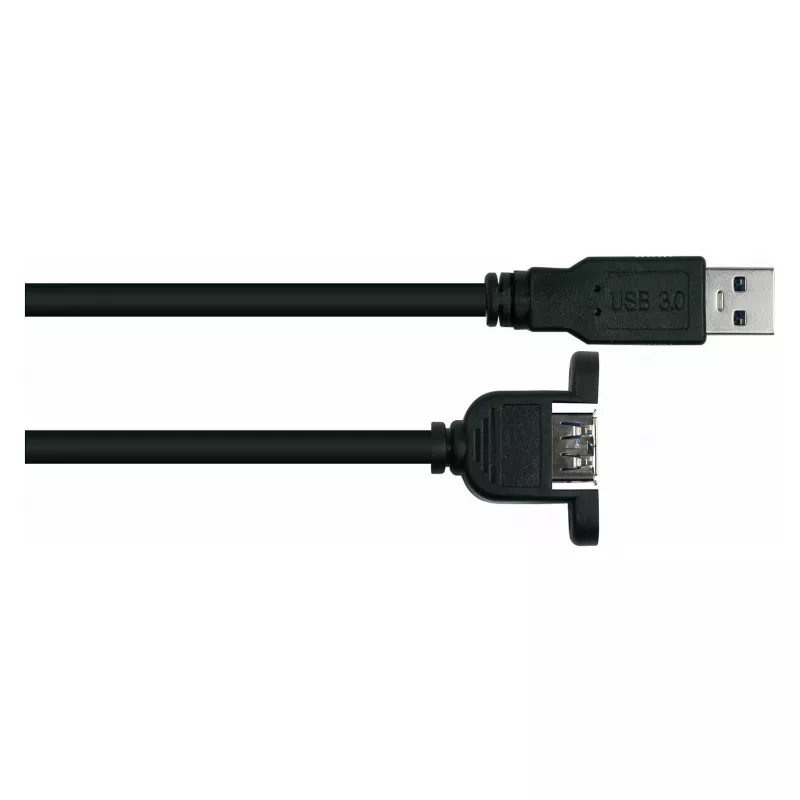

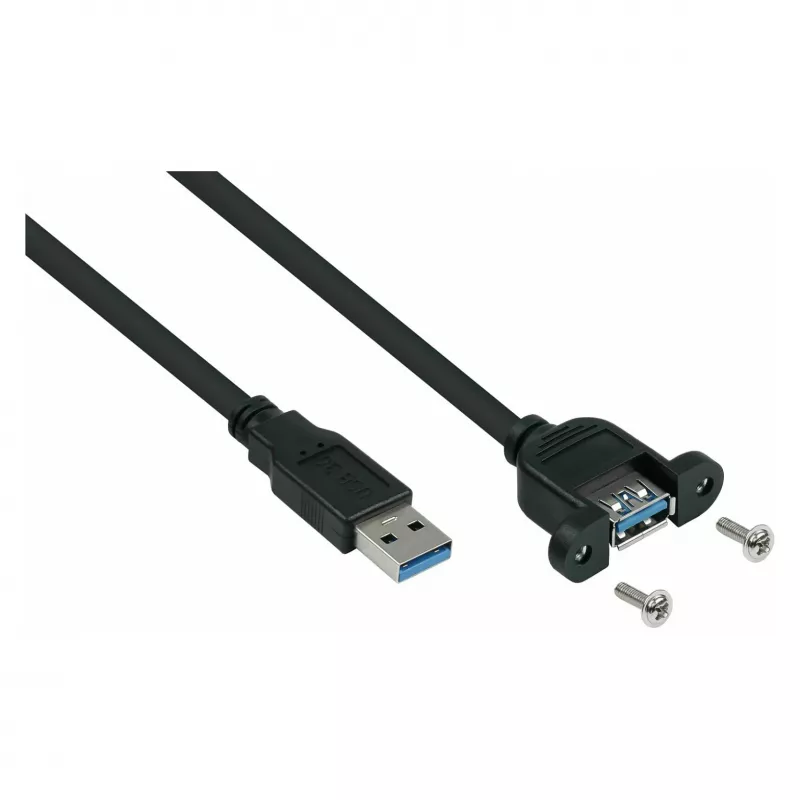

Kabelmeister Cable de extensión USB 3.0 para montaje en panel – conector macho Type-A a conector hembra, 3 m, negro (certificado UL)

The Kabelmeister UK30P-AEA-030S is a high-performance USB 3.0 extension cable designed for permanent installation. It features a male Type-A connector on one end and a female Type-A port on the other, enabling you to bring USB connectivity to the front or side of a panel, enclosure, or custom-built device. With support for SuperSpeed data transfer rates up to 5 Gbps, this cable ensures fast and reliable communication for external drives, docking stations, and industrial peripherals.

Advantages

This extension cable is double shielded with foil and braid to minimise electromagnetic interference, safeguarding signal integrity even in electrically noisy environments. Its tinned copper conductors and nickel-plated connectors provide excellent conductivity and corrosion resistance. The panel-mount female end screws securely onto a chassis, creating a stable and professional installation that withstands frequent plugging and unplugging.

Suitable for

• Industrial control panels and test equipment
• Custom PC builds and server racks
• Point-of-sale systems and kiosks
• Audio/video production rigs

Key specifications

• USB 3.0 SuperSpeed (USB 3.2 Gen 1) certified
• Data transfer rate up to 5 Gbps
• Backward compatible with USB 2.0 and USB 1.1
• Connector 1: USB Type-A male, nickel-plated
• Connector 2: USB Type-A female, panel mount (screw-in)
• Cable length: 3 metres
• Colour: Black
• Cable gauge: 28AWG data, 24AWG power
• UL certified for safety and quality

Recommendations

When mounting the female end, ensure the panel cut-out is correctly sized and the cable is secured with the provided screws (if included). For best performance, use with USB 3.0 ports and certified devices. The cable is not intended for extension of power-only connections.
