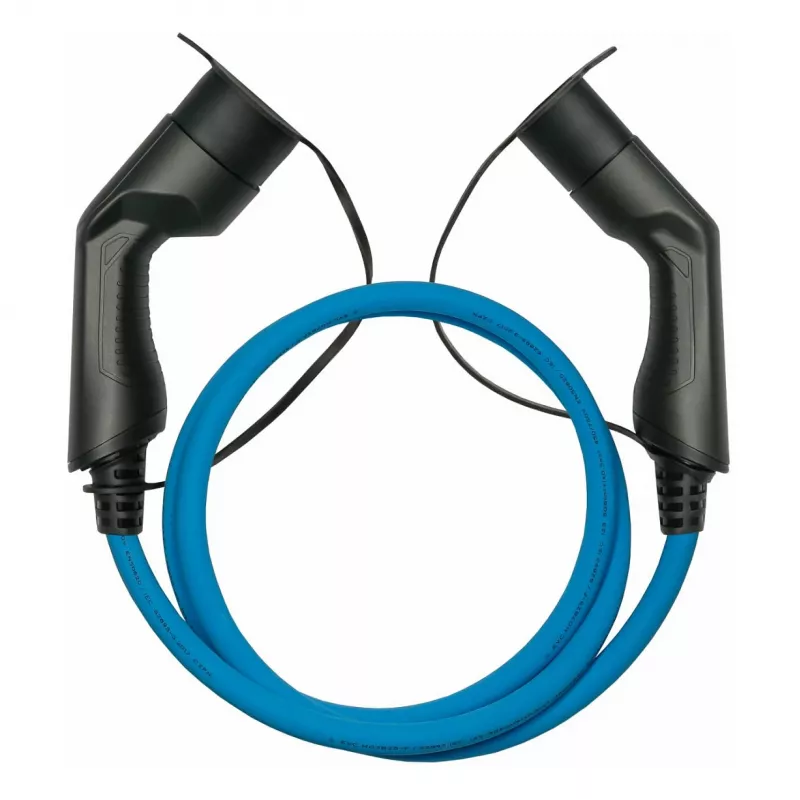

Kabelmeister EVC03-100B cable de carga EV Mode 3, trifásico, 32A/22kW, 10m, Type 2

This Mode 3 charging cable from Kabelmeister delivers up to 22 kW of three-phase power, making it a dependable choice for electric vehicle owners and installation professionals alike. With a generous 10-meter length, it offers ample reach for charging at public stations and residential wallboxes.

Advantages

The cable is equipped with Type 2 connectors on both ends, ensuring universal compatibility with EVs and charging stations across Europe. Its TPE jacket provides excellent flexibility and robustness, while IP54 protection safeguards the connectors against dust and splashing water when connected. The cable is UV and oil resistant, enhancing longevity in outdoor environments. Copper conductors ensure efficient and reliable energy transfer, and the cable supports currents up to 32A per phase for rapid charging.

Suitable for

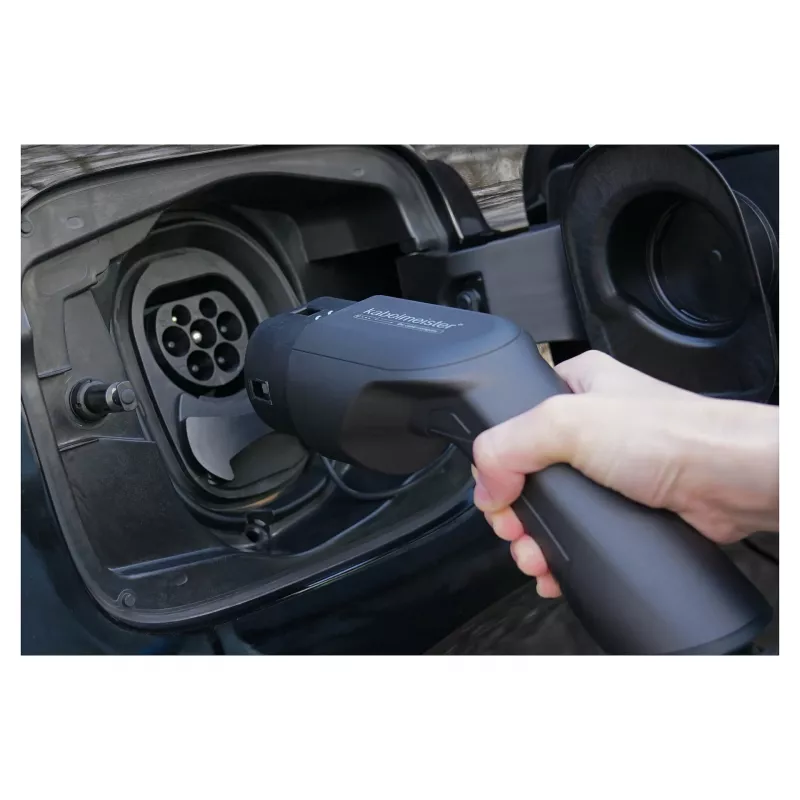

• Public charging stations with Type 2 sockets
• Private wallboxes with Type 2 outlets
• Three-phase charging of EVs at up to 32A per phase
• Electric vehicles with a Type 2 charging port

Key specifications

• Mode 3 charging cable
• Connectors: Type 2 to Type 2 (IEC 62196-2)
• Maximum current: 32 A per phase
• Maximum power: 22 kW (400V AC, 3-phase)
• Cable length: 10 m
• Protection class: IP54
• Operating temperature: -30°C to +50°C
• Certifications: CE, TÜV
• Standards: IEC 62196-2

Recommendations

Always confirm that your EV and charging station are compatible with a Type 2 connection, and verify that the electrical installation supports the required current rating. This cable is suitable for indoor and outdoor use, and should be stored coiled when not in operation.
