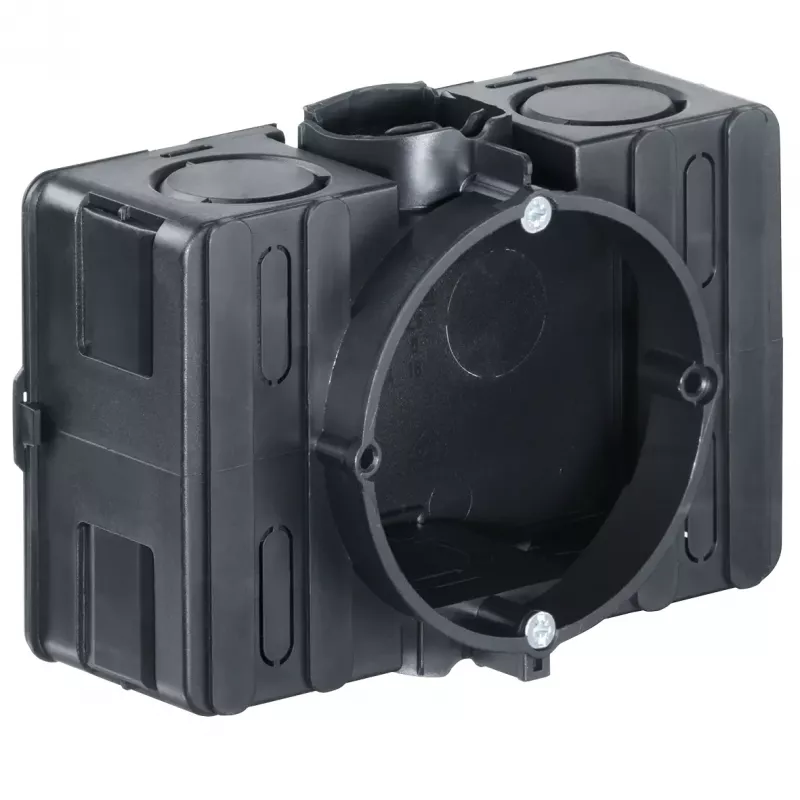

KAISER ELEKTRO Caja de derivación empotrable con compartimento de cableado lateral 1069-02

The KAISER ELEKTRO 1069-02 is a high-quality flush-mounted junction box designed for professional electrical installations. Featuring a side wiring compartment, this box provides ample space for secure cable connections and is ideal for use in branch circuits and junction points. Manufactured from durable polypropylene (PP), it offers excellent thermal resistance and is halogen-free for enhanced safety.

Advantages

This junction box is engineered for reliability and ease of installation. Its snap-on lid ensures quick access, while the eight knock-out entries accommodate M20/M25 conduits for flexible routing. The side wiring compartment simplifies cable management, and the orange colour provides high visibility in wall cavities. With a glow wire test rating of 850°C, it meets stringent fire safety standards.

Suitable for

• Flush-mounted electrical installations in residential and commercial buildings
• Branch connections and junction points for power and lighting circuits
• Use with cables up to 2.5 mm² cross-section
• Indoor applications where IP20 protection is sufficient

Key specifications

• Installation Type: Flush-mounted
• Box Type: Junction Box with side wiring compartment
• Material: Polypropylene (PP), halogen-free
• Colour: Orange
• Protection Class: IP20
• Glow Wire Test: 850 °C
• Number of Entries: 8 (for M20/M25 conduits, knock-out)
• Internal Dimensions: 70 x 70 x 45 mm (W x H x D)
• Lid Type: Snap-on lid
• Terminal Type: Without terminals (empty box)
• Max. Cable Cross-Section: 2.5 mm²
• Temperature Range: -5 °C to +60 °C
• Standard: DIN EN 60670-1

Recommendations

For optimal performance, use this junction box with appropriate conduit fittings and ensure proper cable stripping. Always follow local electrical codes and regulations during installation.
