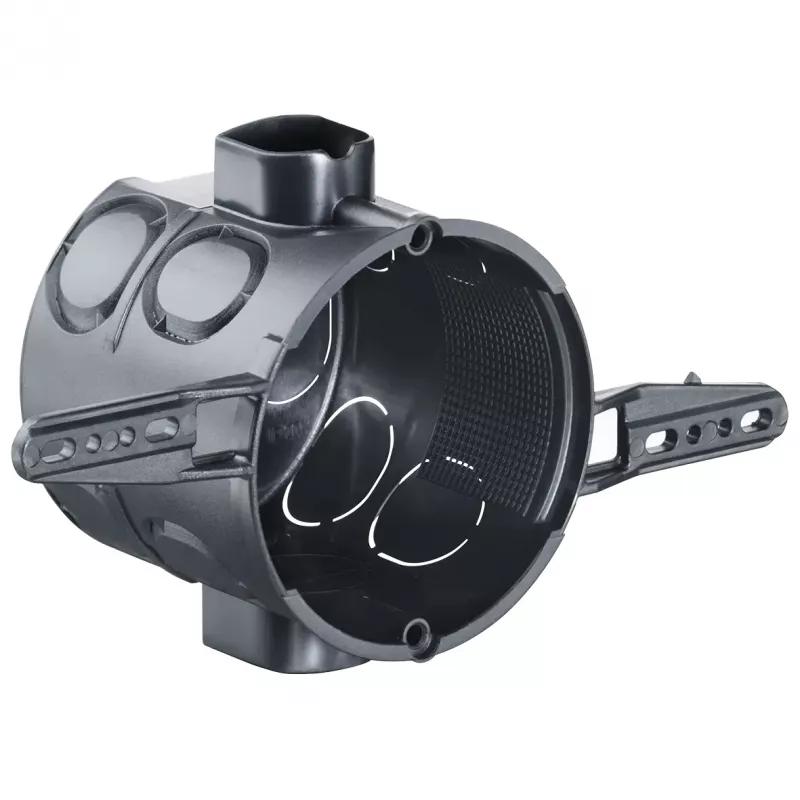

Kaiser Elektro Caja de derivación empotrable con lengüetas de clavo 1555-62

The Kaiser Elektro 1555-62 is a high-quality flush-mounted junction box designed for secure and efficient electrical installations in masonry and concrete walls. Featuring integrated nail lugs for easy mounting, this round polypropylene box offers 10 cable entries (8 side, 2 bottom) with knockouts, making it versatile for various wiring configurations. Its halogen-free, flame-retardant construction ensures safety and compliance with modern building standards.

Advantages

This junction box simplifies installation with its pre-formed nail lugs, eliminating the need for additional fasteners. The snap-on lid provides quick access while maintaining a clean finish. With an IP20 rating, it is suitable for indoor use, and its 400V rated insulation voltage supports standard electrical loads.

Suitable for

• Flush mounting in solid walls (masonry, concrete)
• Installation of switches, sockets, and other devices
• Branching and connecting electrical cables
• Use in dry indoor environments

Key specifications

• Mounting Type: Flush-mounted (with nail lugs)
• Shape: Round
• Material: Polypropylene (PP), halogen-free
• Ingress Protection: IP20
• Cable Entries: 10 (8 side, 2 bottom) – knockouts
• Nominal Diameter: 60 mm
• Installation Depth: 62 mm
• Rated Insulation Voltage: 400 V
• Max Conductor Cross-Section: 2.5 mm²
• Flame Retardant: Yes, self-extinguishing
• With Lid: Yes, snap-on type
• Colour: Grey

Recommendations

For optimal performance, use with cables up to 2.5 mm² and ensure proper knockout removal. This box is ideal for new constructions or renovations where reliable flush-mounted connections are required.
