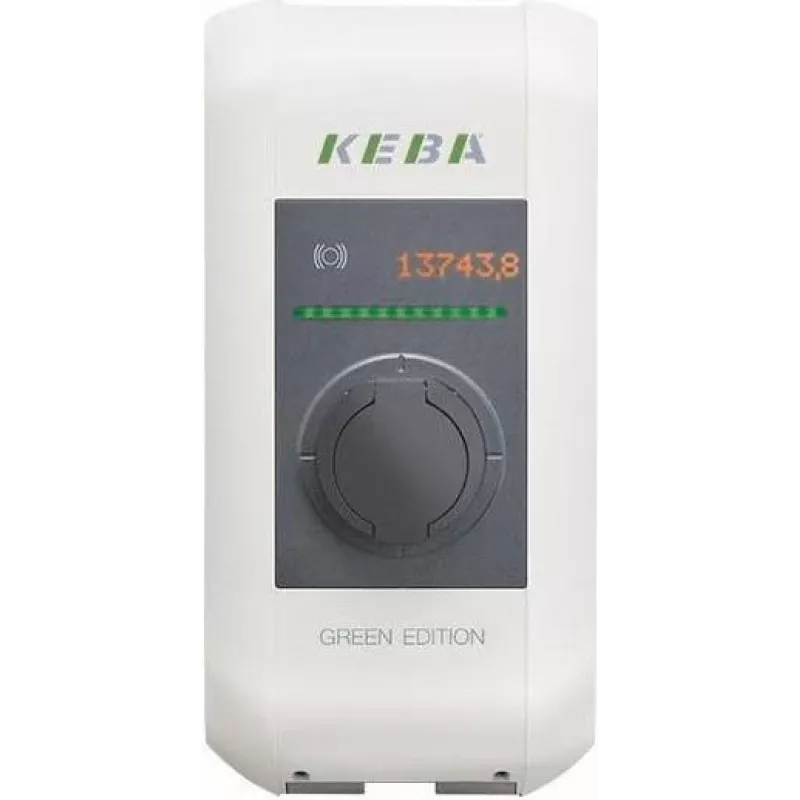

KEBA KeContact P30 x-series 22 kW Toma Type-2 RFID Estación de Carga para Vehículos Eléctricos (125100)

Delivering 22 kW of three-phase AC power through a Type 2 socket, the KEBA KeContact P30 x-series 125100 is a robust, future-proof charging solution for electric vehicles. With integrated ISO 15118 communication and OCPP 1.6 backend connectivity, it is ready for plug-and-charge and smart grid integration.

Overview

The KEBA KeContact P30 x-series is a wall-mounted charging station engineered for both private and commercial use. Its UV-resistant polycarbonate housing and IP54 protection rating ensure reliable operation in harsh environments, while the integrated 6 mA DC fault current detection eliminates the need for an external RCD type B, simplifying installation. The station supports authentication via RFID, enabling secure access control and user management.

What stands out

• 22 kW maximum charging power for fast AC charging of compatible vehicles.
• Integrated energy meter for precise consumption tracking and billing.
• ISO 15118 support enables future plug-and-charge functionality.
• OCPP 1.6 compatibility allows integration with various backend systems.
• Built-in DC fault current detection (6 mA RCMU) for enhanced safety.
• Multi-color LED status indication for clear visual feedback.

Technical details

• Charging connector: Type 2 socket (EN 62196-2).
• Number of phases: 3-phase.
• Nominal voltage: 400 V AC.
• Max charging current: 32 A.
• Authentication: RFID (MIFARE classic/desfire).
• Communication: Ethernet (LAN), ISO 15118, OCPP 1.6.
• Integrated energy meter: Yes.
• DC fault current detection: Yes (6 mA DC RCMU).
• Enclosure protection: IP54.
• Impact protection: IK08.
• Mounting: Wall-mounted.
• Operating temperature: -25 °C to +50 °C.
• Housing material: UV-resistant polycarbonate.
• Product series: KeContact P30 x-series.

Our verdict

The KEBA KeContact P30 x-series 125100 combines high charging power, advanced communication protocols, and robust construction, making it an excellent choice for both residential and commercial EV charging applications. Its future-ready features and safety integrations offer long-term value.
