Kern & Sohn OBB-A6102 Luz anular, versión UE, 4,5 W LED, aprox. 7600 K

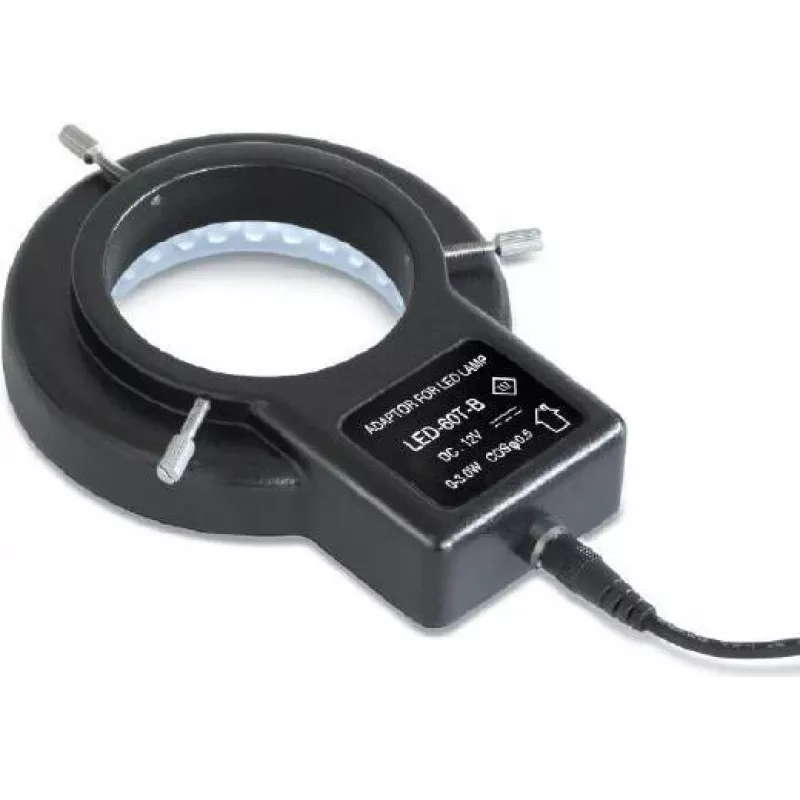

For stereo microscope users who need uniform, shadow-free illumination, the Kern & Sohn OBB-A6102 ring light delivers bright, daylight-like light directly around the objective. It is designed for laboratory, quality control, and precision assembly work where consistent lighting is critical.

Key specifications

• Light source: LED
• Power consumption: 4.5 W
• Color temperature: approx. 7600 K
• Outer diameter: 94 mm
• Inner diameter: 60 mm
• Number of LEDs: 60
• Input voltage (adapter): 100-240 V AC
• Output voltage (adapter): 12 V DC
• Frequency: 50/60 Hz
• Plug type: EU (Type C/F)
• Brightness control: Dimmable
• Housing color: Black
• Operating temperature range: 0 - 40 °C
• LED lifespan: >20,000 hours

Why choose it

The OBB-A6102 provides bright, uniform illumination with a high color temperature that enhances contrast and detail visibility. Its dimmable function allows you to adjust the light intensity to match the specimen and working conditions, reducing eye strain during extended use.

Ideal use cases

• Stereo microscope illumination in laboratories and workshops
• Quality inspection of small parts and surfaces
• Precision assembly and soldering under magnification
• Educational and research microscopy

Good to know

The ring light has a maximum mounting diameter of 60 mm, fitting common stereo microscope objectives. It operates with the included EU power adapter and is suitable for continuous use in temperatures from 0 to 40 °C.
